Pro-Form C840 User Manual page 16

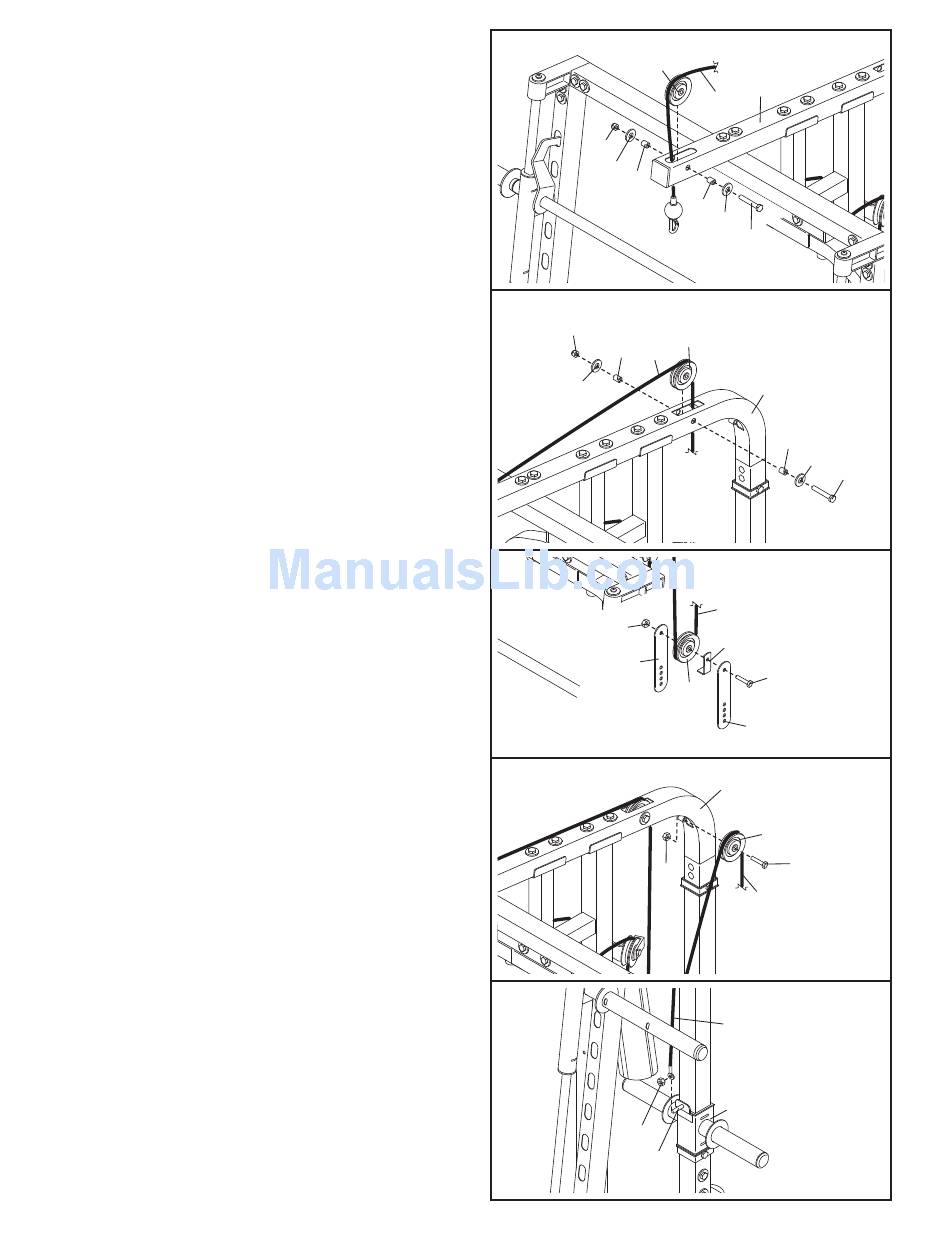

35. Locate the Lat Cable (81). Route the Cable up
through the Rear Top Frame (39) and over a
90mm Pulley (90). Attach the Pulley inside the
Rear Top Frame with an M10 x 78mm Bolt (110),
two M10 Washers (99), two 17mm Spacers (86),
and an M10 Nylon Locknut (97).
36. Route the Lat Cable (81) over a 90mm Pulley
(90) and down through the Rear Top Frame (39).
Attach the Pulley inside the Rear Top Frame with
an M10 x 78mm Bolt (110), two M10 Washers
(99), two 17mm Spacers (86), and an M10 Nylon
Locknut (97).
37. Wrap the Lat Cable (81) under a 90mm Pulley
(90). Attach the Pulley and a Small Cable Trap
(125) to the indicated hole in the two Pulley
Plates (72) with an M10 x 45mm Bolt (112) and
an M10 Nylon Locknut (97). Make sure the
Cable Trap is turned to hold the Cable in the
groove of the Pulley.
38. Wrap the Lat Cable (81) over a 90mm Pulley
(90). Attach the Pulley inside the Rear Top Frame
(39) with an M10 x 78mm Bolt (110) and an M10
Nylon Locknut (97).
39. Attach the Lat Cable (81) to the M10 x 19mm Hex
Head Bolt (132) in the Weight Carriage (71) with
an M10 Nylon Locknut (97). Do not overtighten
the Locknut; the Cable must be able to pivot.
35
97
99
86
36
97
86
81
99
37
97
72
38
39
97
132
16
90
39
81
86
99
110
90
39
86
99
81
125
112
90
72
39
90
110
97
81
81
71
110
