A portion of the AF signals from the FM IF IC (RF unit; IC2,
pin 9) are applied to the active filter section (IC2, pin 8). The
active filter section amplifies and filters noise components.
The filtered signals are applied to the noise detector section
and output from pin 13 as the "SDET" signal.
The "SDET" signal from IC2 (pin 13) is applied to the CPU
(LOGIC unit; IC11, pin 12) directly. The CPU analyzes the
noise condition and outputs the "AMUTE" signal to the AF
mute switch (Q37).
Even when the squelch is closed, the AF mute switch (Q37)
opens at the moment of emitting beep tones.
• TONE SQUELCH
The tone squelch circuit detects AF signals and opens the
squelch only when receiving a signal containing a matching
subaudible tone (CTCSS). When tone squelch is in use, and
a signal with a mismatched or no subaudible tone is
received, the tone squelch circuit mutes the AF signals even
when noise squelch is open.

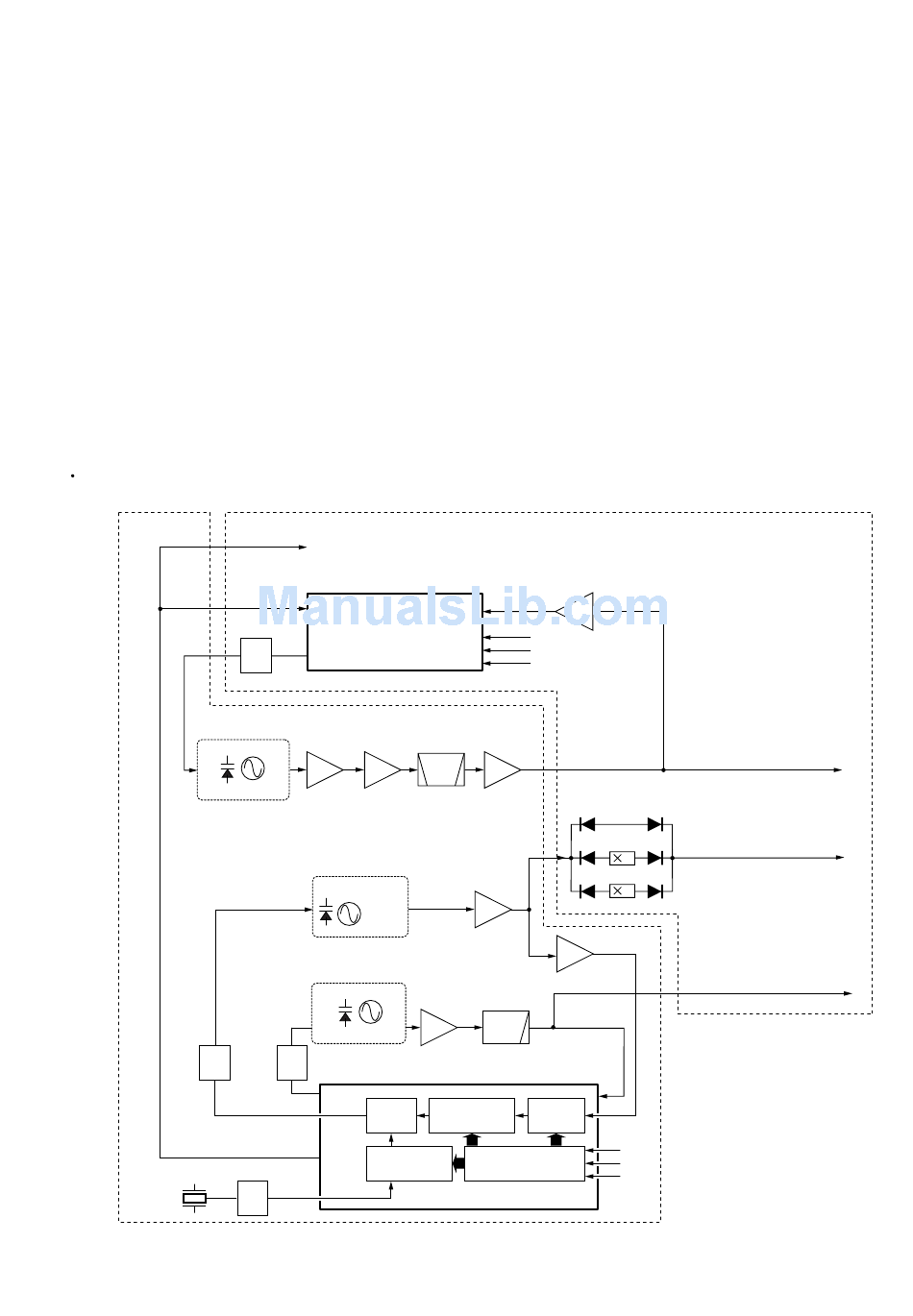

PLL CIRCUIT
Converter VCO
Q861, D913
Loop
Q31,
filter
Q32
D41
X1
VXO
12.8 MHz
"REF" signal to the FM IF IC
(IC2, pin 2)
6
IC15
(Converter PLL IC)
10
Loop
filter
Q862 Q863
Buff. RF
VCO UNIT
1st VCO
Q22,
Q23,
D62
2nd VCO
Q34, D202
Loop
Q870,
filter Q871
8
13 Phase
detector
17
Programmable
divider
16
A portion of the AF signals from the FM IF IC (RF unit; IC2,
pin 9) passes through the low-pass filter (LOGIC unit; IC9)
via the "FMAF" signal to remove AF (voice) signals and
passes through the tone filter (LOGIC unit; IC9, Q8). The fil-
tered signal is applied to the CTCSS decoder inside CPU
(LOGIC unit; IC11, pin 8) via the "RTONE" line to control the
AF mute switch.

4-2 PLL CIRCUITS

4-2-1 PLL CIRCUIT (VCO UNIT)
A PLL circuit provides stable oscillation of the receive
1st/2nd LO frequencies. The PLL circuit compares the
phase of the divided VCO frequency to the reference fre-
quency. The PLL output frequency is controlled by the divid-
ed ratio (N-data) of a programmable divider.
Q874
1
Amp.
3
PCK
4
PDA
5
PSTB
Q864
BPF RF
D64
D67
IC4
D68
Buff.
Q25
Amp.
Q853
Buff. LPF
IC3 (PLL IC)
Programmable
Prescaler
counter
Shift register
4 - 5
RF UNIT
"CONLO" signal to the converter
mixer circuit (IC13, pin 3)
"1st LO" signal to the 1st mixer
D63
circuit (IC1, pin 3)
2
D65
2
D66
"2nd LO" signal to the 2nd mixer
circuit (IC10, pin 3)
2
19
3
PSTB
4
PCK
5
PDA
