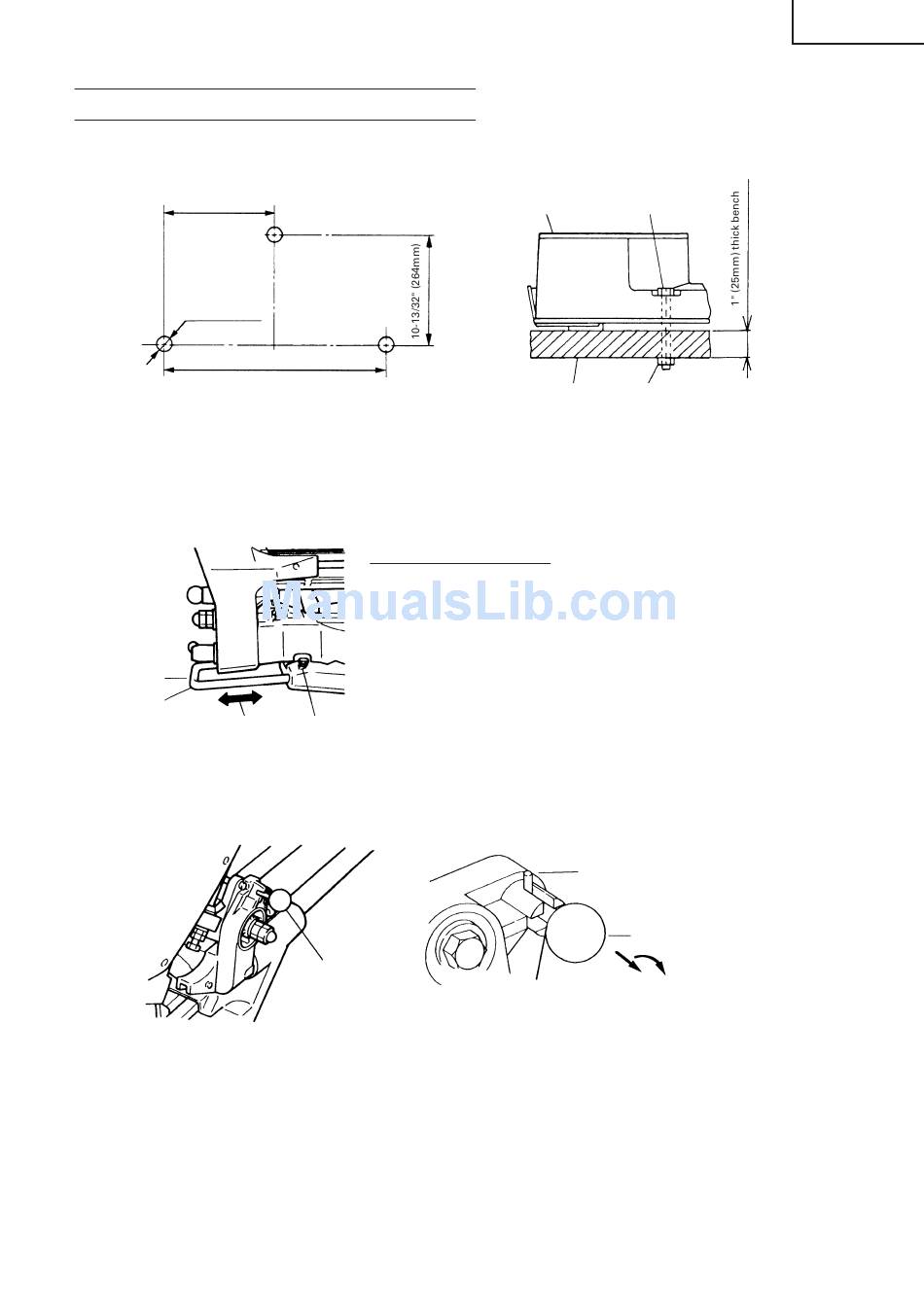

PREPARATION BEFORE OPERATION

Make the following preparations before operating the power tool:
1. Installation
5-29/32" (150mm)
11/32" (9mm)
3 Holes
11-13/16" (300mm)
Attach the power tool to a level, horizontal work bench in accordance with Fig. 4.
Select 5/16" (8mm) diameter bolts suitable in length for the thickness of the work bench.
Bolt length should be at least 1" (25mm) plus the thickness of the work bench.
For example, use 2" (50mm) or larger bolts for a 1" (25mm) thick work bench.
The holder attached to the rear of the base helps stabilize the power tool.
Base Holder
Adjust the base
holder until its
Move
bottom surface
contacts the work
bench surface.
Fig. 5
2. Releasing the locking pin
Fig. 6-a
When the power tool is prepared for shipping, its main parts are secured by a locking pin.
Move the handle (see Fig. 1) slightly so that the locking pin can be disengaged and adjusted as indicated
in Fig. 6-b.
NOTE:
Lowering the handle (see Fig. 1) slightly will enable you to disengage the locking pin more
easily and safely.
The lock position of the locking pin is for carrying and storage only.
Fig. 4
Base holder adjustment:
Loosen the 6mm bolt with the supplied 10mm box wrench.
Adjust the base holder until its bottom surface contacts the work
bench surface.
After adjustment, firmly tighten the 6mm bolt.
6mm Bolt
Locking Pin
Base 5/16" (8mm) Bolt
Work Bench 5/16" (8mm) Nut
During transport, fit the pin into the
deep slot.
NOTE: This position is not be used
for any cutting operation.
Locking Pin
Clockwise
Pull out to disengage.
During operation fit
Rotate the knob 1/4 turn
the pin stoppers into
and fit the pin stoppers
the shallow slot.
into the shallow slot.
Fig. 6-b
English
11
