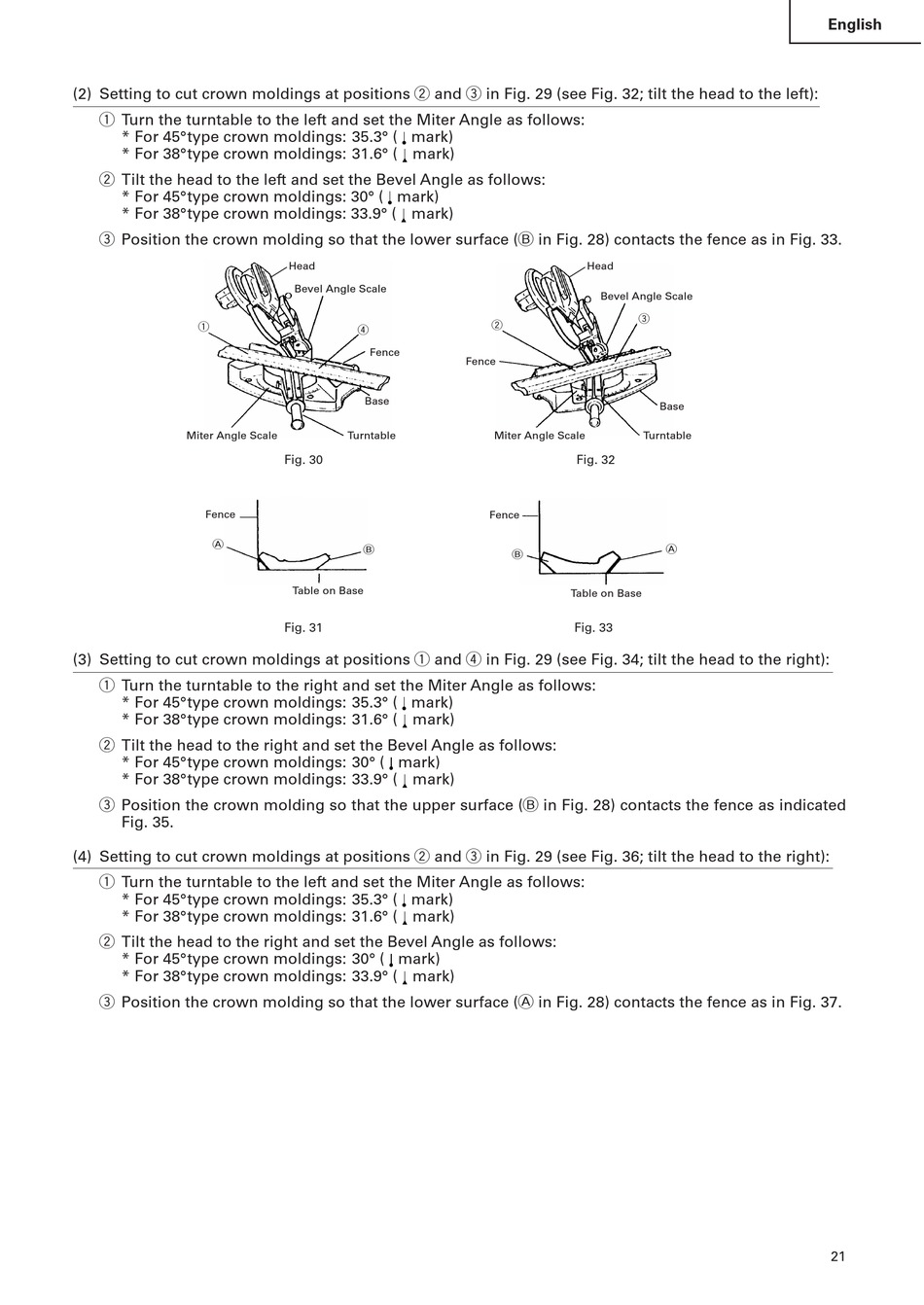

(2) Setting to cut crown moldings at positions w and e in Fig. 29 (see Fig. 32; tilt the head to the left):
q Turn the turntable to the left and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the left and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the lower surface (B in Fig. 28) contacts the fence as in Fig. 33.
q
Miter Angle Scale
Fence
A
(3) Setting to cut crown moldings at positions q and r in Fig. 29 (see Fig. 34; tilt the head to the right):
q Turn the turntable to the right and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the right and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the upper surface (B in Fig. 28) contacts the fence as indicated
Fig. 35.
(4) Setting to cut crown moldings at positions w and e in Fig. 29 (see Fig. 36; tilt the head to the right):
q Turn the turntable to the left and set the Miter Angle as follows:
* For 45°type crown moldings: 35.3° ( mark)
* For 38°type crown moldings: 31.6° ( mark)
w Tilt the head to the right and set the Bevel Angle as follows:
* For 45°type crown moldings: 30° ( mark)
* For 38°type crown moldings: 33.9° ( mark)
e Position the crown molding so that the lower surface (A in Fig. 28) contacts the fence as in Fig. 37.
Head
Bevel Angle Scale
r
Fence
Base
Turntable
Fig. 30
B
Table on Base
Fig. 31
Head
Bevel Angle Scale
e
w
Fence
Miter Angle Scale
Fig. 32
Fence
B
Table on Base
Fig. 33
Base
Turntable
A
English
21
