Hitachi C 10FS Instruction And Safety Manual page 16

English

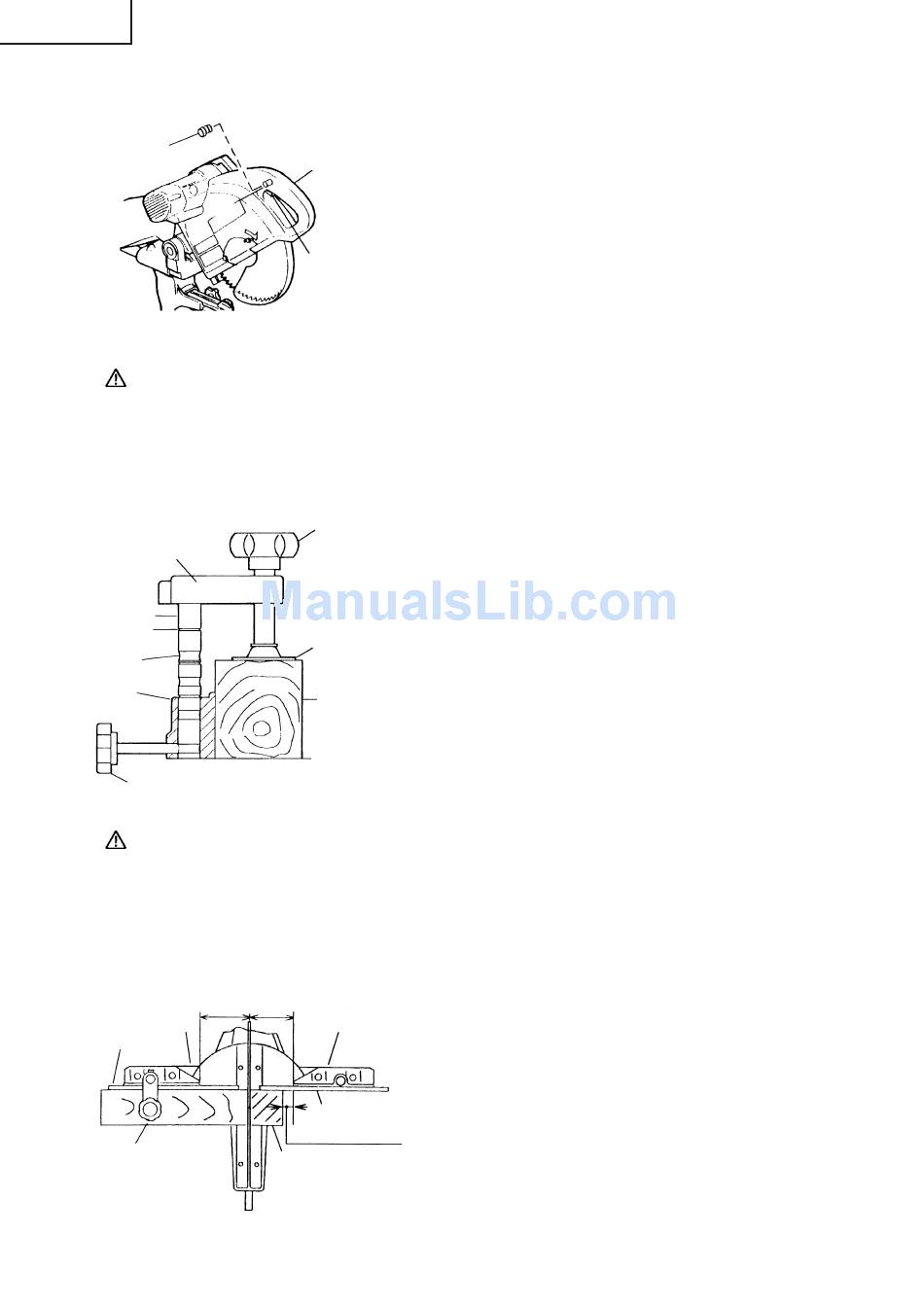

1. Switch operation
Lock-off Button
Fig. 17
WARNING:
2. Using the Vise Assembly (Standard accessory)
Screw Holder
Vise Shaft
Alignment
Groove
Groove
Fence
10mm Knob
Bolt
Fig. 18
CAUTION:
3. Using the Slide Fence (A) and Slide Fence (B) (Standard accessory)
2-4/3" (70mm)
Fence (B)
Slide Fence (B)
Workpiece
Fig. 19
16
The trigger switch lock-off button is designed to prevent inadvert-
ent operation of the power tool. To operate the power tool, it is nec-
essary to first fully insert the lock-off button into the hole on the
Handle
handle as shown in Fig. 17.
The trigger switch will not operate unless the lock-off button has
Hole been pushed in.
When the trigger switch is released, the power goes off and the
lock-off button automatically returns to its initial position, locking
the trigger switch.
Trigger
Switch
Always remove the lock-off button from the handle when the power tool is not in
use. This will ensure that the power tool cannot be turned on accidentally or by
someone (especially a child) who is not qualified to use the power tool. If the lock-off
button is left in the handle, serious personal injury can result. Since the lock-off button
fits rather tightly, it may be necessary to turn it to the left and right during mounting
and removing.
Knob
The vise assembly can be mounted on either the left fence {Fence
(B)} or the right fence {Fence (A)}, and can be raised or lowered
according to the height of the workpiece.
To raise or lower the vise assembly, first loosen the 10mm knob
bolt. As shown in Fig. 18, the vise shaft has four locking grooves
into which the tip of the 10mm knob bolt is designed to fit in order
to lock the screw holder in the desired position.
Vise
To ensure that the tip of the 10mm knob bolt is properly aligned
Plate
with the desired locking groove on the vise shaft, simply align the
upper surface of the fence to either of three grooves on the vise
Work-
shaft surface or to the lower surface of the screw holder.
piece
Therefore, the vise assembly can be attached in either of four
positions to ensure proper height adjustment.
After adjusting the height, firmly tighten the 10mm knob bolt; then
turn the upper knob, as necessary, to securely attach the workpiece
in position.
Always confirm that the motor head (see Fig. 1) does not contact the vise assembly
when it is lowered for cutting. If there is any danger that it may do so, loosen the
10mm knob bolt slightly and move the vise to a position where it will not contact the
saw blade.
Also, always confirm that the vise assembly is mounted on the right side {Fence (A)}
before using the saw for compound cutting operations (miter + bevel cutting).
Slide fence (A) and slide fence (B) are meant to stabilize small
2-5/32" (55mm)
workpieces as shown in Fig. 19.
Fence (A)
Slide Fence (A)
Cut off side piece
Clearance between fence (A) and fence (B) and the workpiece
is necessary. The edge of workpiece should not overlap with
fence (A) and fence (B).
