English

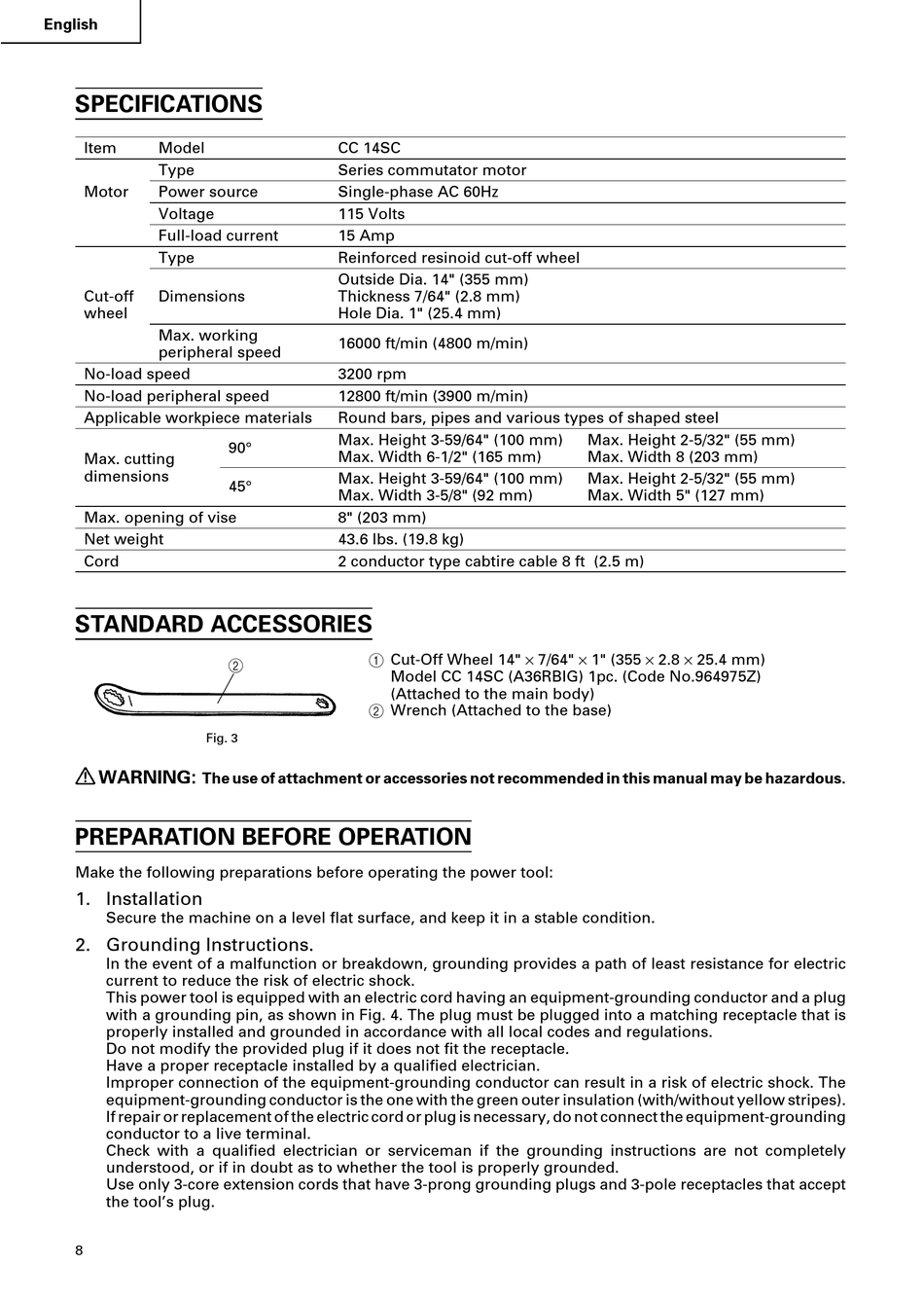

SPECIFICATIONS

Item
Model
Type
Motor
Power source
Voltage
Full-load current
Type
Cut-off
Dimensions
wheel
Max. working
peripheral speed
No-load speed
No-load peripheral speed
Applicable workpiece materials
Max. cutting
dimensions
Max. opening of vise
Net weight
Cord

STANDARD ACCESSORIES

Fig. 3
WARNING:
The use of attachment or accessories not recommended in this manual may be hazardous.

PREPARATION BEFORE OPERATION

Make the following preparations before operating the power tool:
1. Installation
Secure the machine on a level flat surface, and keep it in a stable condition.
2. Grounding Instructions.
In the event of a malfunction or breakdown, grounding provides a path of least resistance for electric
current to reduce the risk of electric shock.
This power tool is equipped with an electric cord having an equipment-grounding conductor and a plug
with a grounding pin, as shown in Fig. 4. The plug must be plugged into a matching receptacle that is
properly installed and grounded in accordance with all local codes and regulations.
Do not modify the provided plug if it does not fit the receptacle.
Have a proper receptacle installed by a qualified electrician.
Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The
equipment-grounding conductor is the one with the green outer insulation (with/without yellow stripes).
If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding
conductor to a live terminal.
Check with a qualified electrician or serviceman if the grounding instructions are not completely
understood, or if in doubt as to whether the tool is properly grounded.
Use only 3-core extension cords that have 3-prong grounding plugs and 3-pole receptacles that accept
the tool's plug.
8
CC 14SC
Series commutator motor
Single-phase AC 60Hz
115 Volts
15 Amp
Reinforced resinoid cut-off wheel
Outside Dia. 14" (355 mm)
Thickness 7/64" (2.8 mm)
Hole Dia. 1" (25.4 mm)
16000 ft/min (4800 m/min)
3200 rpm
12800 ft/min (3900 m/min)
Round bars, pipes and various types of shaped steel
Max. Height 3-59/64" (100 mm)
90°
Max. Width 6-1/2" (165 mm)
Max. Height 3-59/64" (100 mm)
45°
Max. Width 3-5/8" (92 mm)
8" (203 mm)
43.6 lbs. (19.8 kg)
2 conductor type cabtire cable 8 ft (2.5 m)
1 Cut-Off Wheel 14" × 7/64" × 1" (355 × 2.8 × 25.4 mm)
2
Model CC 14SC (A36RBIG) 1pc. (Code No.964975Z)
(Attached to the main body)
2 Wrench (Attached to the base)
Max. Height 2-5/32" (55 mm)
Max. Width 8 (203 mm)
Max. Height 2-5/32" (55 mm)
Max. Width 5" (127 mm)
