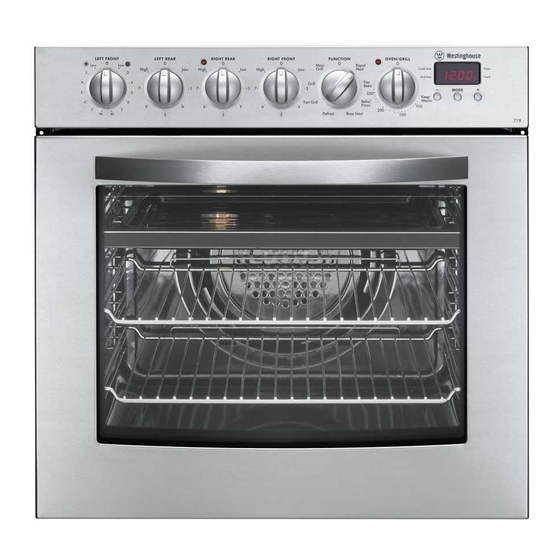

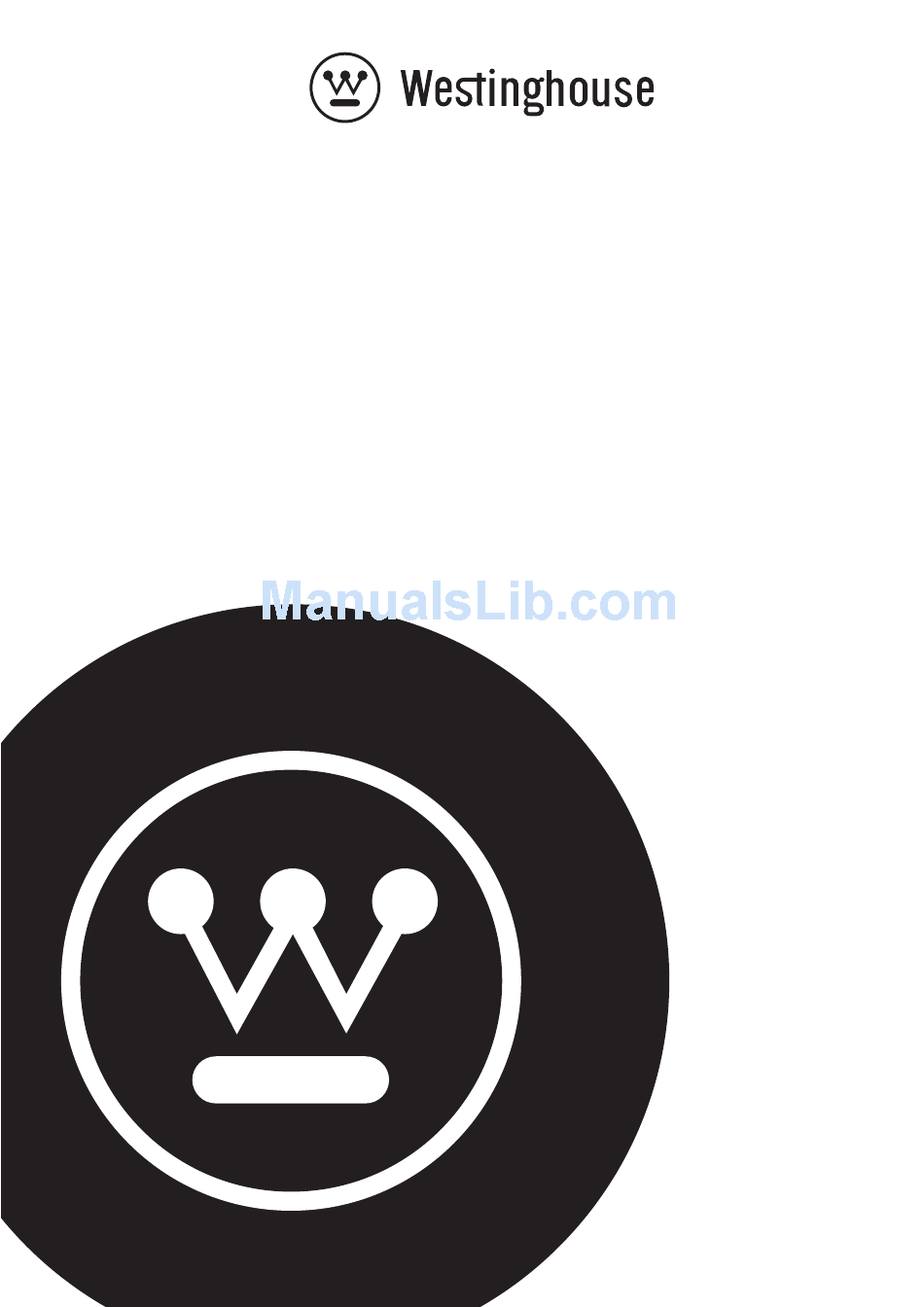

- Page 1 BUILT-IN COOKING APPLIANCES OWNER'S MANUAL Thank you for buying a Westinghouse oven. Please read your owner's manual carefully, it provides instructions on safe installation, use and maintenance. Retain it for future reference. Record the model and serial numbers of your oven.
- Page 2 S A F E T Y A N D W A R N I N G I N S T R U C T I O N S Read the following carefully to avoid an accident. General warnings • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 3: Table Of Contents
C O N T E N T S DESCRIPTION OF YOUR APPLIANCE ........................4 PON663 .................................4 PONS663 ...............................4 PON667 .................................4 PONS667 ...............................4 PON668 .................................4 PON781 .................................4 PON783 .................................4 PPN776................................4 PPN778................................5 PGN657 .................................5 PGN659 .................................5 PXN688 .................................5 PXN698 .................................5 PDN790 .................................5 PDN794 .................................5 BEFORE OPERATING YOUR APPLIANCE FOR THE FIRST TIME...............6... -
Page 4: Description Of Your Appliance
D E S C R I P T I O N O F Y O U R A P P L I A N C E PON663 & PONS663 Model – Multifunction 3 Oven Indicator Light FUNCTION OVEN/GRILL TIMER Auto Off... -
Page 5: Ppn778
PPN778 Model – Combination Multifunction 8 Oven-Ceramic Cooktop Oven Indicator Light Cooktop Indicator Light LEFT FRONT LEFT REAR RIGHT REAR RIGHT FRONT FUNCTION OVEN/GRILL Maxi Rapid Grill Heat Cook Time Time High High High End Time Clock Grill Bake – MODE Keep Warm... -
Page 6: Before Operating Your Appliance For The First Time
BEFORE OPERATING YOUR APPLIANCE FOR THE FIRST TIME S e t t i n g t h e t i m e If you have purchased a model fitted with an electronic or programmable timer, you must set the time of day before you can operate your appliance. 3 Button Electronic Clock cook time timer... -
Page 7: Side Opening Door Features
Rear 2. Side racks Front The side racks that come with your oven are all fitted the same way and can be attached to either side of your oven. • Insert the largest peg into rear access hole provided. See diagram. •... -
Page 8: Using Your Oven
U S I N G Y O U R O V E N U n d e r s t a n d i n g y o u r o v e n f u n c t i o n s Your oven will have a selection of the following functions. - Page 9 U S I N G Y O U R O V E N Maxi Grill “Maxi grill” directs radiant heat from 2 powerful upper elements onto the food. You can use the “maxi grill” function for tender cuts of meat, steak, chops, sausages, fish, cheese toasties and other quick cooking foods.
-
Page 10: Cooling/Venting Fan
U S I N G Y O U R O V E N Fast heat up (FHU) PON783 only “Fast heat” can be selected in the initial heat up phase of any cooking function. During “fast heat” the heat comes from the element surrounding the fan as well as the smaller element above the food. -
Page 11: Pre-Heating Your Appliance
U S I N G Y O U R O V E N Pre-heating your appliance Pre-heating your oven is recommended in several cooking and grilling functions. Pre-heating your appliance allows it to reach the required temperature quickly and efficiently. With "rapid heat"... -
Page 12: Using Your Cooktop
U S I N G Y O U R C O O K T O P The ceramic cooktop is made from ceramic glass, a tough durable material that withstands heating and cooling without breaking. It is strong enough to hold the heaviest utensils, however a hard impact with a sharp object could cause it to break. -
Page 13: Cooktop Hints
U S I N G Y O U R C O O K T O P C o o k i n g H i n t s Bringing liquids to the boil Use a high setting. Before the liquid begins to boil, turn to a lower setting. This will stop the liquid from boiling over. -
Page 14: Cooking With Your Timer
C O O K I N G W I T H Y O U R T I M E R 2-hour “Auto Off” timer The 2-hour timer features an automatic oven "cut off". This means that a cooking period of up to 120 minutes can be set. When the timer has counted back to "Auto Off"... -
Page 15: Pon783 Programmable Controller
OPERATING THE PROGRAMMABLE CLOCK (Continued) To check or cancel settings 1. To check your settings, press the mode button until the setting you want is displayed. A red light will flash next to the mode (cook time, end time etc) that is currently on display. 2. - Page 16 C O O K I N G W I T H Y O U R T I M E R Setting the stop time 1. Select the desired oven function and cooking temperature. 2. Press the "Timer" button as often as necessary, until the "end time" symbol appears flashing.
- Page 17 C O O K I N G W I T H Y O U R T I M E R Activating the child-proof lock When the child lock is engaged, the oven cannot be switched on. 1. Switch off the appliance using the "On / Off" button. 2.
-
Page 18: Cooking Guide
C O O K I N G G U I D E • Select the correct shelf location for food being cooked. • Make sure dishes will fit into the oven before you switch it on. • Keep edges of baking dishes at least 40mm from the side of the oven. This allows free circulation of heat and ensures even cooking. -
Page 19: Roasting Meat
C O O K I N G G U I D E Modes with Oven Fan Temperature Oven shelf Time in Food in °C position* minutes Scones Plain or fruit 10 -15 Biscuits Rolled 10 - 15 Spooned 12 - 15 Shortbread biscuits 30 - 35 Meringues... -
Page 20: Grilling Guide
G R I L L I N G G U I D E G r i l l i n g h i n t s NOTE: Always clean the grill / oven dish after every use. Excessive fat build up may cause a fire. Depending on your model of appliance you will grill: •... -
Page 21: Dealing With Cooking Problems
DEALING WITH COOKING PROBLEMS (see also p.26) Problem Causes Remedies Uneven cooking • Incorrect shelf position. - Select shelf that puts food in the centre of the oven. • Oven tray too large. - Experiment with other trays or dishes. •... -
Page 22: Cleaning Your Appliance
CLEANING YOUR APPLIANCE IMPORTANT: • Always make sure that the oven is electrically isolated before cleaning. This can be done via the functional switch located nearby. Do not use steam cleaners. • Do not line the bottom of the oven or grill with foil or cookware. E n a m e l •... -
Page 23: Cleaning Your Oven Accessories
CLEANING YOUR APPLIANCE C l e a n i n g y o u r o v e n a c c e s s o r i e s Removing the trays and shelves from your appliance • Slide the dish and shelves towards you until they reach the front stop. -
Page 24: Cleaning Oven Door [Side Opening Doors]
CLEANING YOUR APPLIANCE Releasing the grill element Retaining wire models We have designed the upper element with a hanger clip to help you reach your oven roof for cleaning. Retaining wire models • Lift element up carefully. • Pull hanger clip forward. The element will drop down freely. -
Page 25: Catalytic Self Clean Panels (Where Fitted)
CATALYTIC SELF CLEAN PANELS (where fitted) Some models come with Catalytic Self Clean panels. These models contain: 2 Catalytic side liners (to be fitted by you) 1 Catalytic fan cover (already fitted) NOTE: If your oven does not have catalytic self clean panels and you wish to purchase them, they are available from Spare Parts. -
Page 26: Solving Problems
SOLVING PROBLEMS Faults If there is a problem with the oven and/or grill, please: • Check the points listed below before calling for service. It may be possible to avoid a call by fixing the problem yourself - and so continue cooking. •... -
Page 27: Installation
I N S TA L L AT I O N USE AN AUTHORISED PERSON As stated in the local municipal building codes and other relevant statutory regulations. • Wiring connections must be in accordance with AS/NZS 3000 Wiring Rules and any particular conditions of the local authority. -
Page 28: Cabinet Construction
INSTALLATION C a b i n e t C o n s t r u c t i o n f o r y o u r a p p l i a n c e For the best integration within a kitchen, install this appliance in a standard 600mm wide cupboard that gives a flush fit with the surrounding cupboard fronts (figure A). - Page 29 INSTALLATION U n d e r b e n c h O v e n s Your underbench oven looks best when the control panel is directly under the benchtop. An upper infill panel may have to be added if the cooktop placed above the benchtop is too deep. Refer to cooktop installation instructions for required clearance between cooktop and oven.
- Page 30 INSTALLATION S e p a r a t e G r i l l U n d e r b e n c h O v e n s FLUSH FIT PROUD FIT Mounting Holes Recommended Cabinet Design NOTE TO INSTALLER: For Separate Grill Underbench Installations where a Cooktop is installed directly above the appliance, a minimum clearance distance of 10mm must be allowed for between the bottom of the cooktop &...
-
Page 31: Hard Wiring Details
INSTALLATION D o u b l e O v e n s FLUSH FIT 1086 1078 PROUD FIT USE 25mm BLACK INSTALLATION SCREWS (AS SUPPLIED) USE 15mm BLACK INSTALLATION SCREWS (AS SUPPLIED) S i d e o p e n i n g d o o r o v e n s H a r d W i r i n g D e t a i l 1. -
Page 32: Door Removal - Standard
I N S TA L L AT I O N D o o r R e m o v a l f o r D u a l C a v i t y I n s t a l l a t i o n Removing the door from your appliance •... -
Page 33: Door Conversion For Side Opening Door
I N S TA L L AT I O N RIGHT HANDED LEFT HANDED D o o r c o n v e r s i o n f o r s i d e o p e n i n g o v e n s Side opening door models can be converted from left hand opening (as delivered) to right hand opening. - Page 36 H E A D I N G H E A D I N G P/N 342-1-526 ECN 07BOO2A 04/07...
