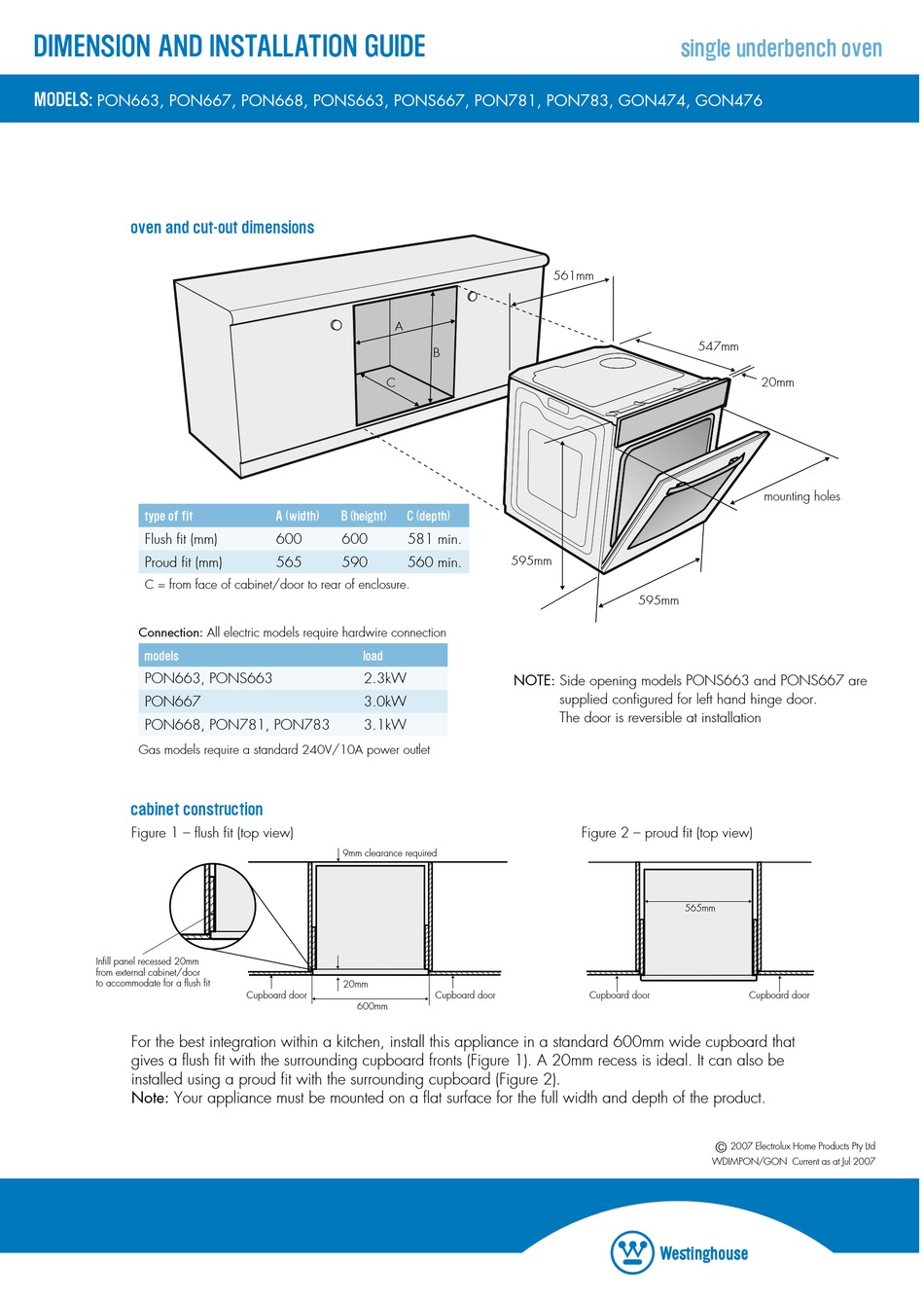

DIMENSION AND INSTALLATION GUIDE
MODELS:
PON663, PON667, PON668, PONS663, PONS667, PON781, PON783, GON474, GON476
oven and cut-out dimensions
type of fit
Flush fit (mm)
Proud fit (mm)
C = from face of cabinet/door to rear of enclosure.
Connection: All electric models require hardwire connection
models
PON663, PONS663
PON667
Cupboard door
PON668, PON781, PON783
Gas models require a standard 240V/10A power outlet
cabinet construction
Figure 1 – flush fit (top view)
Infill panel recessed 20mm
from external cabinet/door
to accommodate for a flush fit
For the best integration within a kitchen, install this appliance in a standard 600mm wide cupboard that
gives a flush fit with the surrounding cupboard fronts (Figure 1). A 20mm recess is ideal. It can also be
installed using a proud fit with the surrounding cupboard (Figure 2).
Note: Your appliance must be mounted on a flat surface for the full width and depth of the product.
A
C
A (width) B (height) C (depth)
9mm clearance required
600 600 581 min.
565 590 560 min.
load
2.3kW
20mm
3.0kW
Cupboard door
3.1kW
600mm
9mm clearance required 9mm clearance required
20mm 20mm
Cupboard door Cupboard door
600mm 600mm
561mm
B
595mm
NOTE: Side opening models PONS663 and PONS667 are
supplied configured for left hand hinge door.
Cupboard door
The door is reversible at installation
Figure 2 – proud fit (top view)
Cupboard door Cupboard door Cupboard door Cupboard door
single underbench oven
547mm
20mm
mounting holes
595mm 565mm
Cupboard door
565mm 565mm
Cupboard door Cupboard door
©
2007 Electrolux Home Products Pty Ltd
WDIMPON/GON Current as at Jul 2007
