Chapter 3 – Using the Web Management Software
Add Static Routes
IP packets destined for the network indicated in the drop down box are routed to the IP address in the box
pointed to by the arrow. The networks in the drop down box can be defined under the 'Networks & Services' tab.
Static Route:
Note: The Static Route screen will not display until the network is defined under Networks & Services.

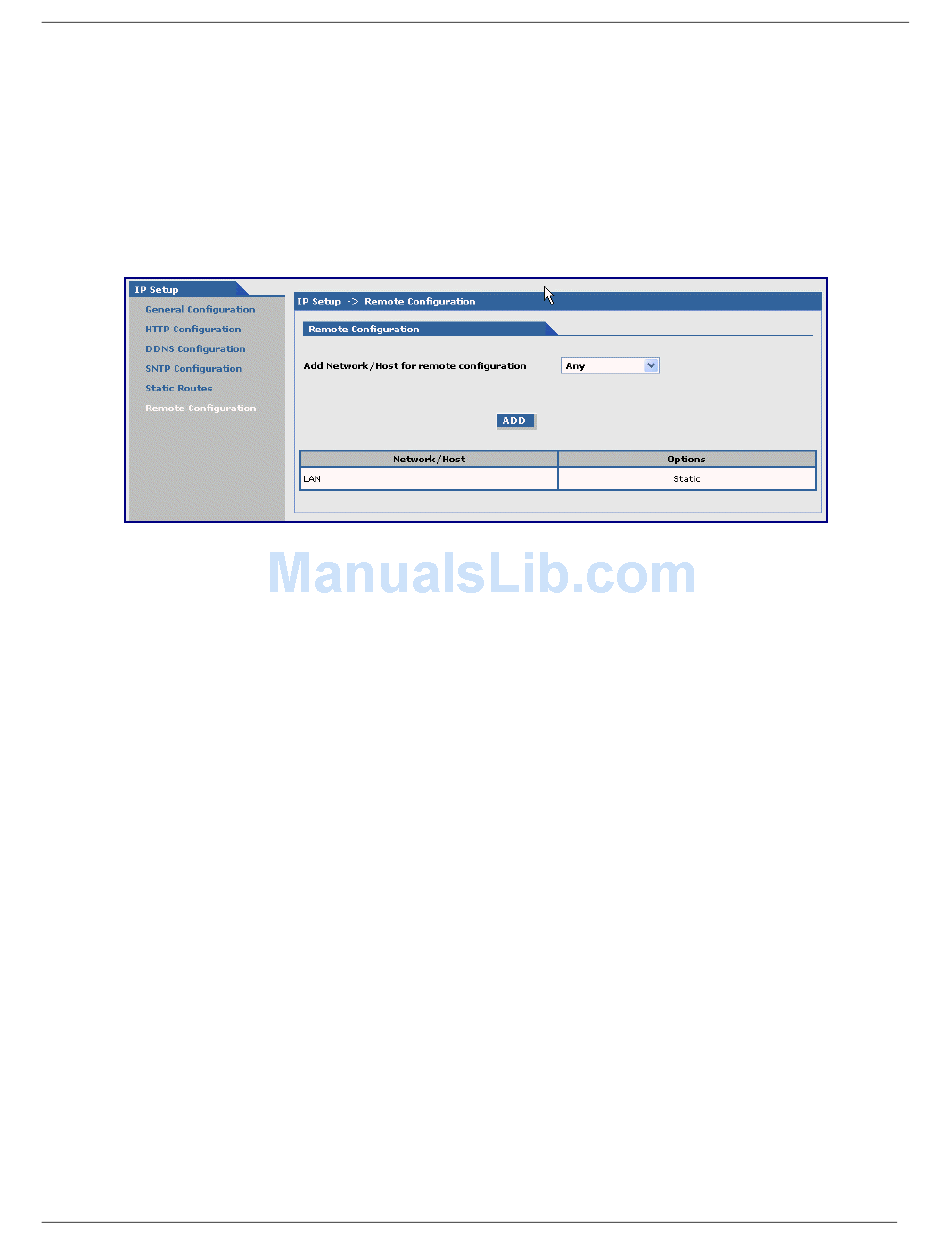

IP Setup > Remote Configuration
Remote Configuration
Add Network/Host for
Remote Configuration:
Delete:
28
Select a static route from the drop down list box, and then click Add. The new route
displays at the bottom of the screen.
Select a network or host from the drop down box. You can define more networks or
hosts under the Network & Services tab. The choices are Any, LAN, and WAN Interface.
Choose all that apply. Click Add after each selection. The network or host displays at the
bottom of the screen.
You will have the option to delete Any and WAN Interface in the Options window once
it is added. Click on Delete in the Options window.
