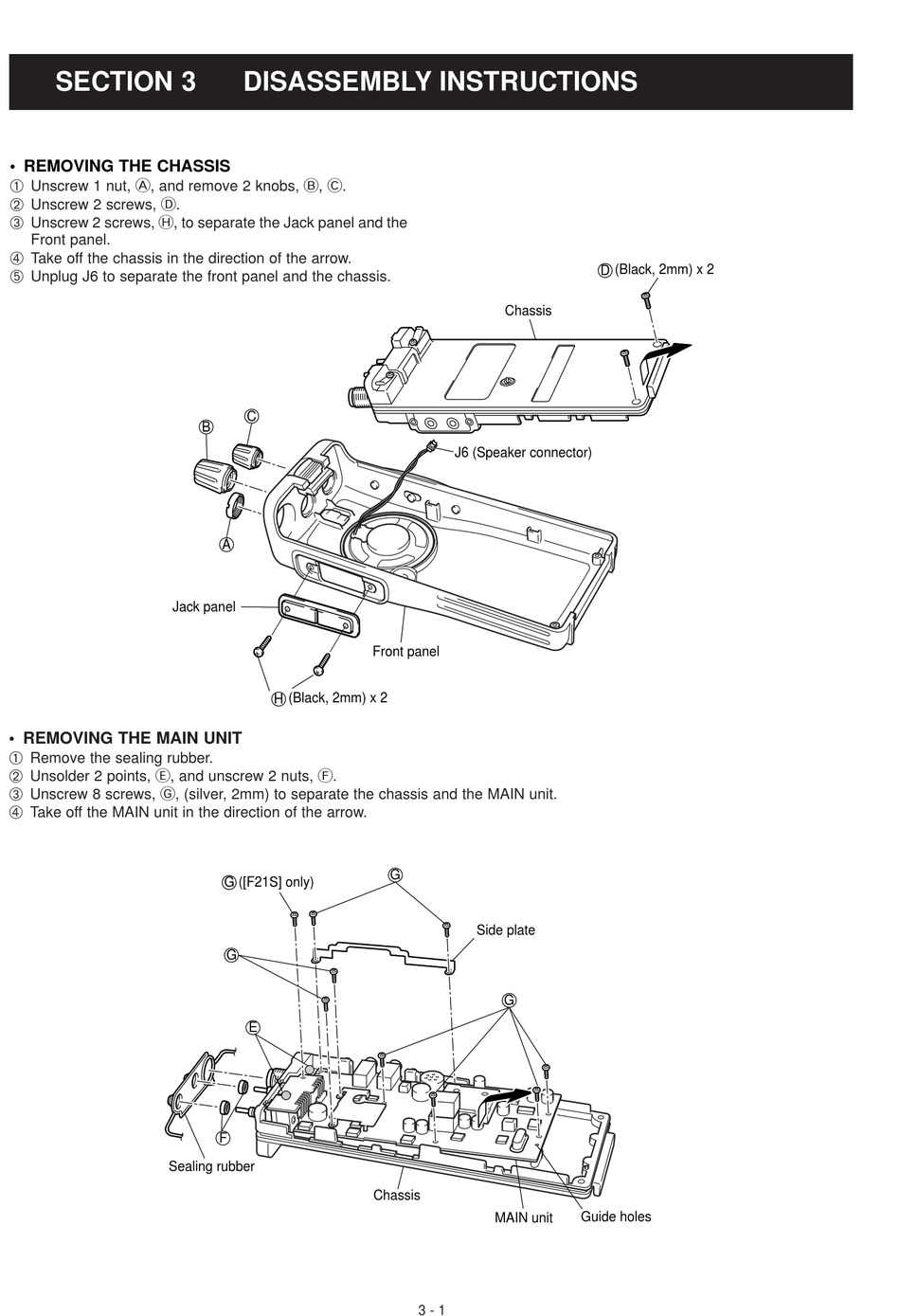

Disassembly Instructions - Icom IC-F21 Service Manual

SECTION 3
• REMOVING THE CHASSIS
¡ Unscrew 1 nut, A, and remove 2 knobs, B, C.
™ Unscrew 2 screws, D.
£ Unscrew 2 screws, H, to separate the Jack panel and the
Front panel.
¢ Take off the chassis in the direction of the arrow.
∞ Unplug J6 to separate the front panel and the chassis.
Jack panel
• REMOVING THE MAIN UNIT
¡ Remove the sealing rubber.
™ Unsolder 2 points, E, and unscrew 2 nuts, F.
£ Unscrew 8 screws, G, (silver, 2mm) to separate the chassis and the MAIN unit.
¢ Take off the MAIN unit in the direction of the arrow.
Sealing rubber

DISASSEMBLY INSTRUCTIONS

C
B
A
(Black, 2mm) x 2
H
G ([F21S] only)
G
E
F
Chassis
J6 (Speaker connector)
Front panel
G
Side plate
G
Chassis
MAIN unit
3 - 1
(Black, 2mm) x 2
D
Guide holes
