Hook Up the Flaps and Ailerons

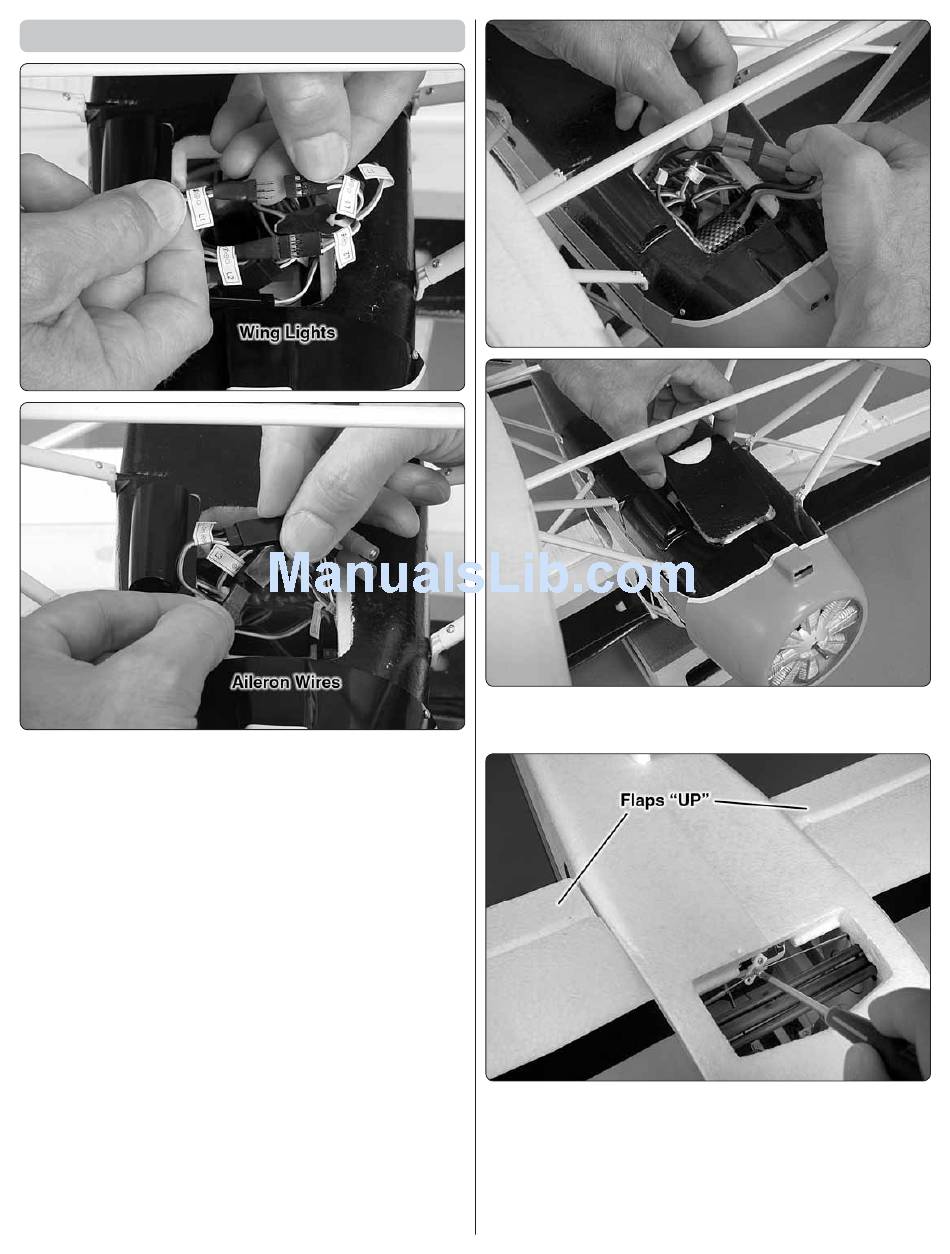

1. Connect the wing lighting wires and the aileron servo
wires to the lighting and fl ap wiring harnesses coming from
the receiver.
2. Turn on the transmitter and install and connect the battery.
Then install and secure the hatch.
3. Move the dial or switch on your transmitter that controls
the fl aps to the "up" position, rotating the fl ap servo arm
clockwise. Remove the screw in the fl ap servo arm, wet the
threads with threadlocker, and then reinstall and tighten the
screw so the fl aps will be in their fully retracted ("up") position.
11
