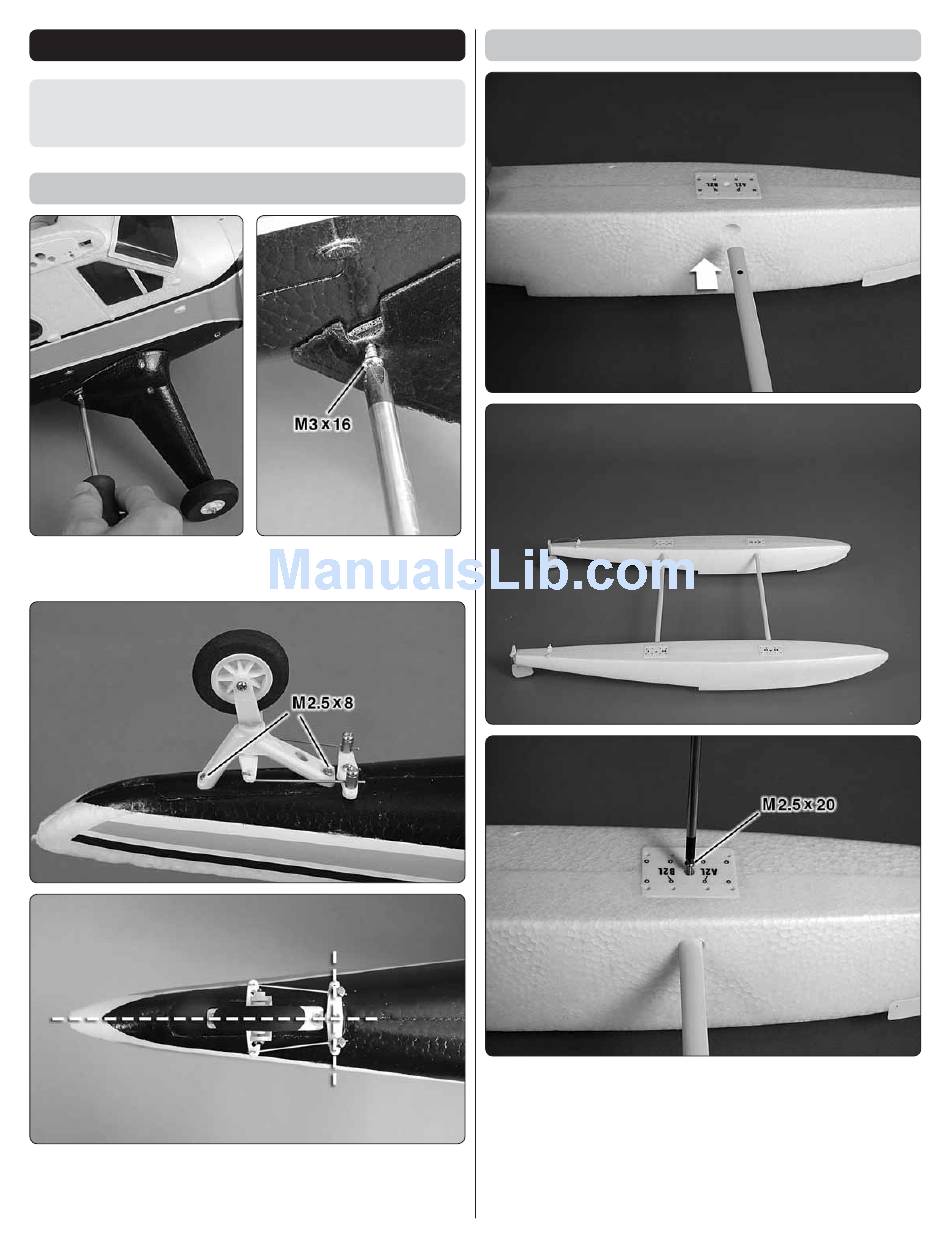

ASSEMBLY

NOTE: This instruction manual applies to both the RTF
and Tx-R editions of the de Havilland Beaver. If assembling
the RTF edition, simply skip steps that do not apply.

Mount the Landing Gear

❏
1. Use a #2 Phillips screwdriver to fasten both main landing
gears to the fuselage with three M3x16 screws in each side.
❏
2. Mount the tail gear with two M2.5x8 screws, then fasten
the pushrod wires as shown. Make sure the tail wheel is
perpendicular with the steering arm.

Mount the Floats

❏
1. Connect the fl oats to each other with the horizontal struts
and four M2.5x20 machine-thread screws.
5
