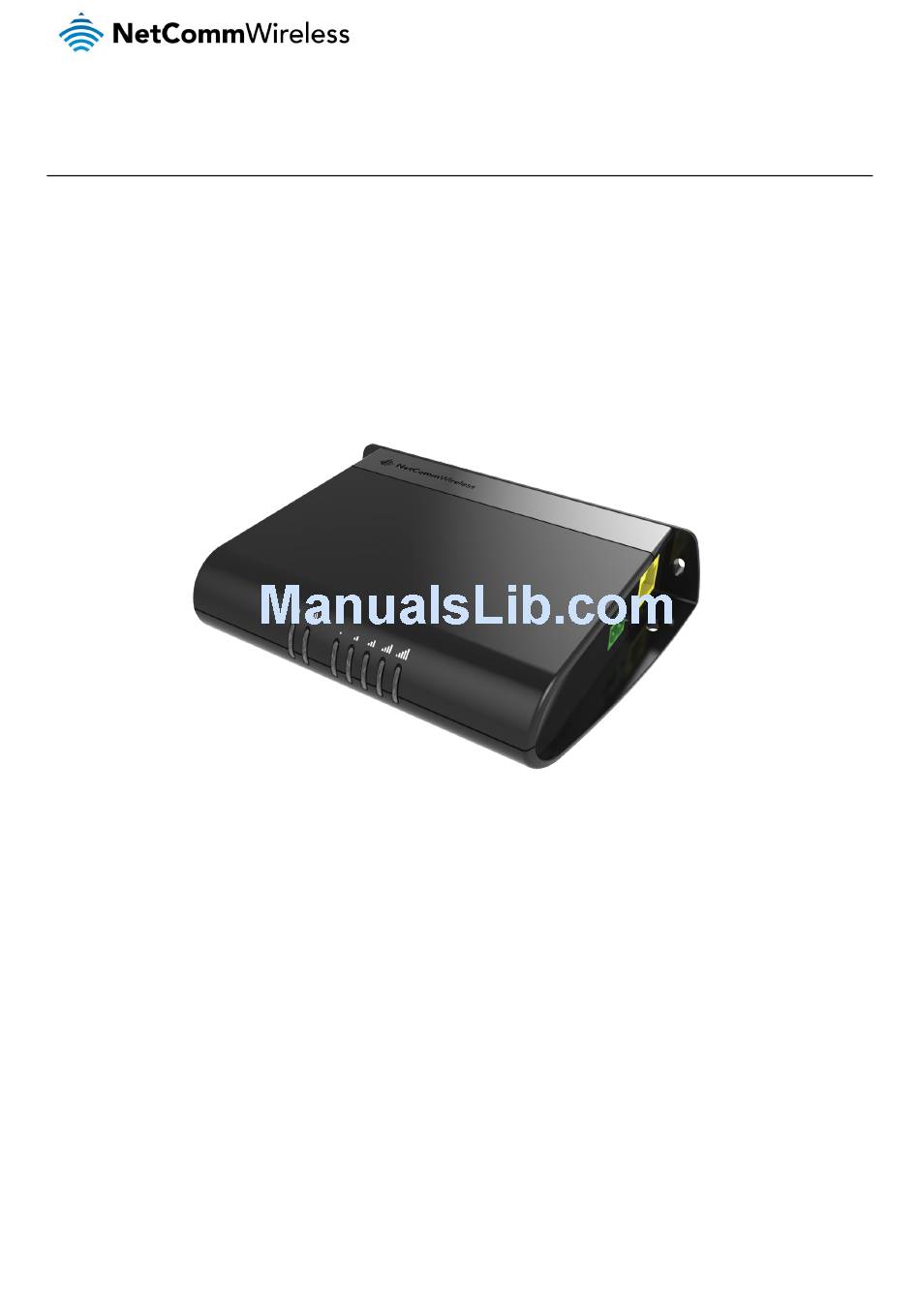

- Page 1 M2M CDMA Router TR-069 Whitepaper...
- Page 2 Copyright© 2013 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.
-
Page 3: Table Of Contents
Introduction ..................................... 4 Considerations with TR-069 ................................... 4 TR-069 Remote CPE Management Connection Diagram ..........................5 Establishing a connection between an M2M CDMA Router and an Auto Configuration Server ................5 TR-069 ACS Server Configuration .................................. 6 TR-069 CPE Configuration ..................................... 9 M2M CDMA Remote Firmware Upgrade/Downgrade Using TR-069 ...................... -
Page 4: Introduction
069 ACS to mass deploy, administer and manage their TR-069-ready CPE remotely. The purpose of this whitepaper is to demonstrate how to establish a connection between an M2M CDMA Router and an ACS server and how to perform a firmware upgrade remotely via TR-069 on M2M CDMA Routers. -
Page 5: Tr-069 Remote Cpe Management Connection Diagram
Ensure the relevant version of firmware is loaded in the M2M CDMA Router that supports TR-069 Ensure the M2M CDMA Router is loaded with a test SIM that supports an accessible WAN IP address. In this white paper, the SIM used in the M2M CDMA Router has a public IP address. -
Page 6: Tr-069 Acs Server Configuration
CPE TR-069 Connection Request user name and password used in this white paper are for test purposes only. Prior to configuring the M2M CDMA Router, the device product class name and serial number must be registered on the Auto Configuration Server. - Page 7 Figure 2: NetComm Wireless M2M CDMA product class name Add the Device on the ACS server Navigate to Home > Manage Devices > Add Device and fill in the add device form, then click Manage Devices. Figure 3: Register TR-069 CPE serial number on ACS Click the Add Device link.
- Page 8 To add multiple devices at once: Click Import Device(s) Click the Browse button and open a CSV file which is formatted as illustrated below: M2M CDMA Router – TR-069 Whitepaper www.netcommwireless.com...
-
Page 9: Tr-069 Cpe Configuration
TR-069 CPE Configuration By default, the M2M CDMA Router is not pre-configured with active TR-069 client settings and the TR-069 feature is disabled. To test the TR-069 features, you need to manually login via the router’s Ethernet interface to enable the TR-069 feature and configure it with the relevant TR-069 client settings. - Page 10 The device inform message will contain the device’s current WAN IP address. This is viewable by clicking on the Device Data tab. Figure 8: Viewing the device data tab The TR-069 ACS Server and TR-069 M2M Router CPE connection has now been established. You may now start to perform a device firmware upgrade remotely via TR-069.
-
Page 11: M2M Cdma Remote Firmware Upgrade/Downgrade Using Tr-069
Auto Configuration Server. The M2M CDMA Router holds two firmware image files, one is the recovery image file and the other is the main system image file. When performing a device firmware upgrade, you should upgrade both firmware images, starting with the recovery image first (named with the ‘_r’... - Page 12 Figure 11: Create firmware link for M2M CDMA 1.10.28.43604 main system image Once the two firmware file links are created, they will be displayed in the Home > Manage Download summary page on the ACS server. M2M CDMA Router – TR-069 Whitepaper...
- Page 13 Request (Download) page is displayed. Queue a firmware download task by selecting the relevant link and click Queue Download. See Figure 12 for details. Note: Both device firmware upgrade and firmware downgrade tasks make use of the ‘Download’ action button on the ACS Server. Figure 12: Queuing the Recovery Image www.netcommwireless.com M2M CDMA Router – TR-069 Whitepaper...
- Page 14 It may take up to 10 minutes to complete the device firmware upgrade task remotely, depending on the 3G connection speed and the distance between the TR-069 CPEs and the TR-069 Server. When the upgrade is complete, navigate to the Device Data tab to confirm the firmware version has changed. M2M CDMA Router – TR-069 Whitepaper www.netcommwireless.com...
-
Page 15: Triggering A Connection Request Via Sms
Remote CPE firmware upgrade via TR-069 is complete. Triggering a connection request via SMS If the M2M CDMA does not have a publicly routable IP address, a connection request may be triggered by sending an SMS to the router. The SMS command to trigger a connection request is: set tr069.request.trigger=1...
