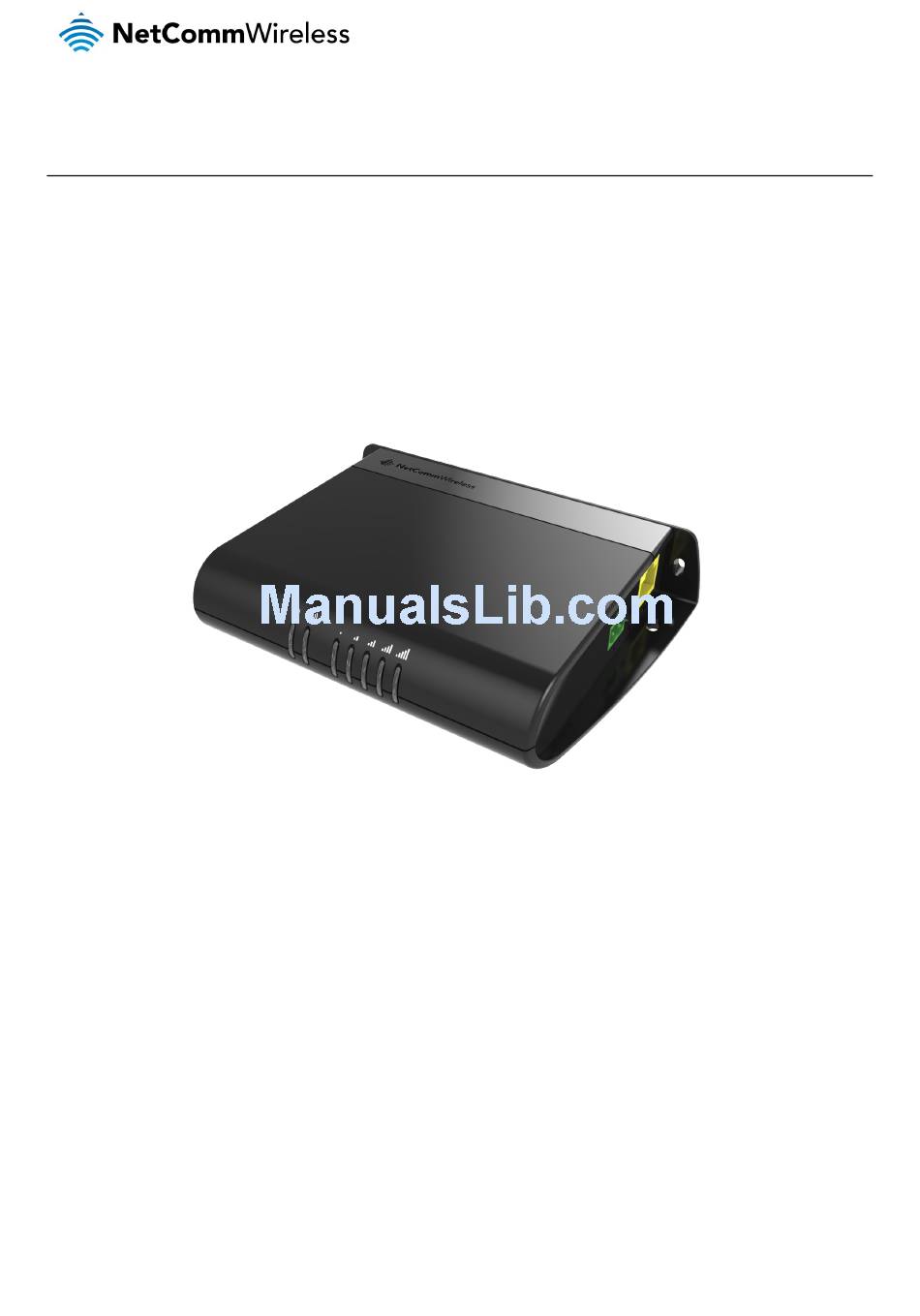

- Page 1 M2M CDMA Router SMS Tools User Guide...
- Page 2 Copyright© 2013 NetComm Wireless Limited. All rights reserved. The information contained herein is proprietary to NetComm Wireless. No part of this document may be translated, transcribed, reproduced, in any form, or by any means without prior written consent of NetComm Wireless.
- Page 3 Table of contents Introduction ....................................4 Diagnostics ........................................8 Sending an SMS Diagnostic Command ................................ 11 www.netcommwireless.com M2M CDMA Router – SMS Tools User Guide...
- Page 4 Ability to trigger the M2M CDMA Router to download and apply a configuration file To access the SMS messaging functions of the M2M CDMA Router, click on the Services menu item from the top menu bar, and then select one of the options under the SMS messaging section on the left hand menu.
- Page 5 “192.168.20.3” on port “2002” at the same time. To disable redirection to a TCP or UDP address, clear the TCP address and UDP address fields and click the Save button. www.netcommwireless.com M2M CDMA Router – SMS Tools User Guide...
-
Page 6: New Message
When you have finished typing your message and you are ready to send it, click the Send button. M2M CDMA Router – SMS Tools User Guide www.netcommwireless.com... - Page 7 Add to White list. Click this button to add the sender’s mobile number to the white list on the router. Delete button. Click this button to delete the corresponding message. Refresh button. Click this button to refresh the inbox or outbox to see new messages. Table 3 - Inbox/Outbox icons www.netcommwireless.com M2M CDMA Router – SMS Tools User Guide...
- Page 8 We highly recommended that you use the white list and a password when utilising this feature to prevent unauthorised access. See the White list description for more information. M2M CDMA Router – SMS Tools User Guide www.netcommwireless.com...
- Page 9 This is enabled by default and it is strongly advised that you leave this feature enabled to maintain security. Send Ack. SMS for Set Command execute The M2M CDMA Router will automatically reply to certain types of commands received, such as commands, or Wakeup commands.
- Page 10 Destination Number field and optionally define a password in the Password field. When you have finished adding numbers click the Save button to save the entries. M2M CDMA Router – SMS Tools User Guide www.netcommwireless.com...
-
Page 11: Sending An Sms Diagnostic Command
Get/Set/Exec Command toggle key is set to ON, the router will send a reply if the command is correct but a variable or value is incorrect, for example, due to misspelling. www.netcommwireless.com M2M CDMA Router – SMS Tools User Guide... -
Page 12: Sms Command Format
PASSWORD set VARIABLE1=VALUE1; set VARIABLE2=VALUE2; set VARIABLE3=VALUE3 If required, values can also be bound by an apostrophe, double apostrophe or back tick. For Example: “set VARIABLE=’VALUE’” “set VARIABLE=”VALUE”” “set VARIABLE=`VALUE`” “get VARIABLE” M2M CDMA Router – SMS Tools User Guide www.netcommwireless.com... - Page 13 RFC1738, for example: ftp://username:password@serveraddress/directory%20with%20spaces/filename.cdi Note: Authenticated FTP addresses may be used following the format as defined in RFC1738, for example: ftp://username:password@serveraddress/directory/filename.cdi Table 5 - List of Valid SMS diagnostic commands www.netcommwireless.com M2M CDMA Router – SMS Tools User Guide...
-
Page 14: Sms Diagnostics Examples
Not required get rssi Send SMS to check the mobile signal strength Required PASSWORD get rssi Not required get meid Send SMS to check the MEID number Required PASSWORD get meid M2M CDMA Router – SMS Tools User Guide www.netcommwireless.com... - Page 15 Send SMS to retrieve the current LED mode Required PASSWORD get ledmode Not required get ssh.proto Retrieve current SSH protocol Required PASSWORD get ssh.proto Not required set ssh.proto=1 Select SSH protocol Required PASSWORD set ssh.proto=1 www.netcommwireless.com M2M CDMA Router – SMS Tools User Guide...
- Page 16 Clear client public keys stored on host Required PASSWORD execute ssh.clearkeys Not required get MEID Retrieve the MEID of the router Required PASSWORD get MEID Table 7 - SMS diagnostics example commands M2M CDMA Router – SMS Tools User Guide www.netcommwireless.com...
