Socketscan Trigger - Socket CF RFID User Manual

SocketScan Trigger

If you find it inconvenient or impossible to assign or use a
hardware button to trigger the reader, you can install this virtual
trigger button that "floats" on top of the active application.
1. Make sure to do all of the following before using SocketScan
Trigger:
• Install SocketScan Trigger from the installation CD. The
software must be installed separately from SocketScan.
• Start SocketScan. Tap Start | Programs | SocketScan.
• Insert the CF RFID Reader Card into your device.
• Open the application that you want to receive data.

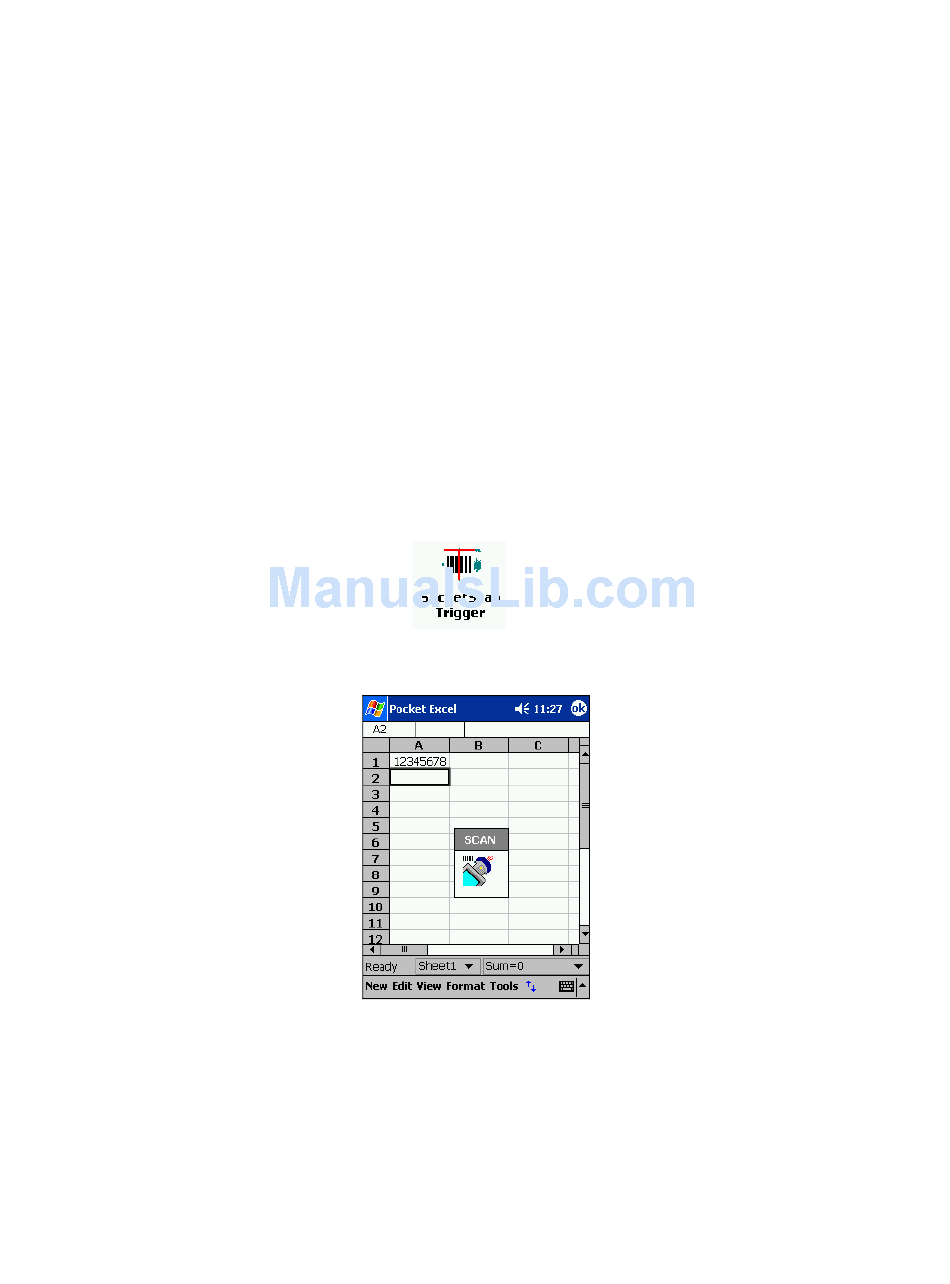

2. Start SocketScan Trigger. Tap Start | Programs | SocketScan
Trigger.
3. The floating trigger button will appear on your screen on top
of the active application.
Drag from the title bar to move the trigger button to a
convenient place on the screen.
Tap the trigger button to activate the RFID reader/bar code
scanner.
CHAPTER 2: SETUP FOR WINDOWS MOBILE 23
