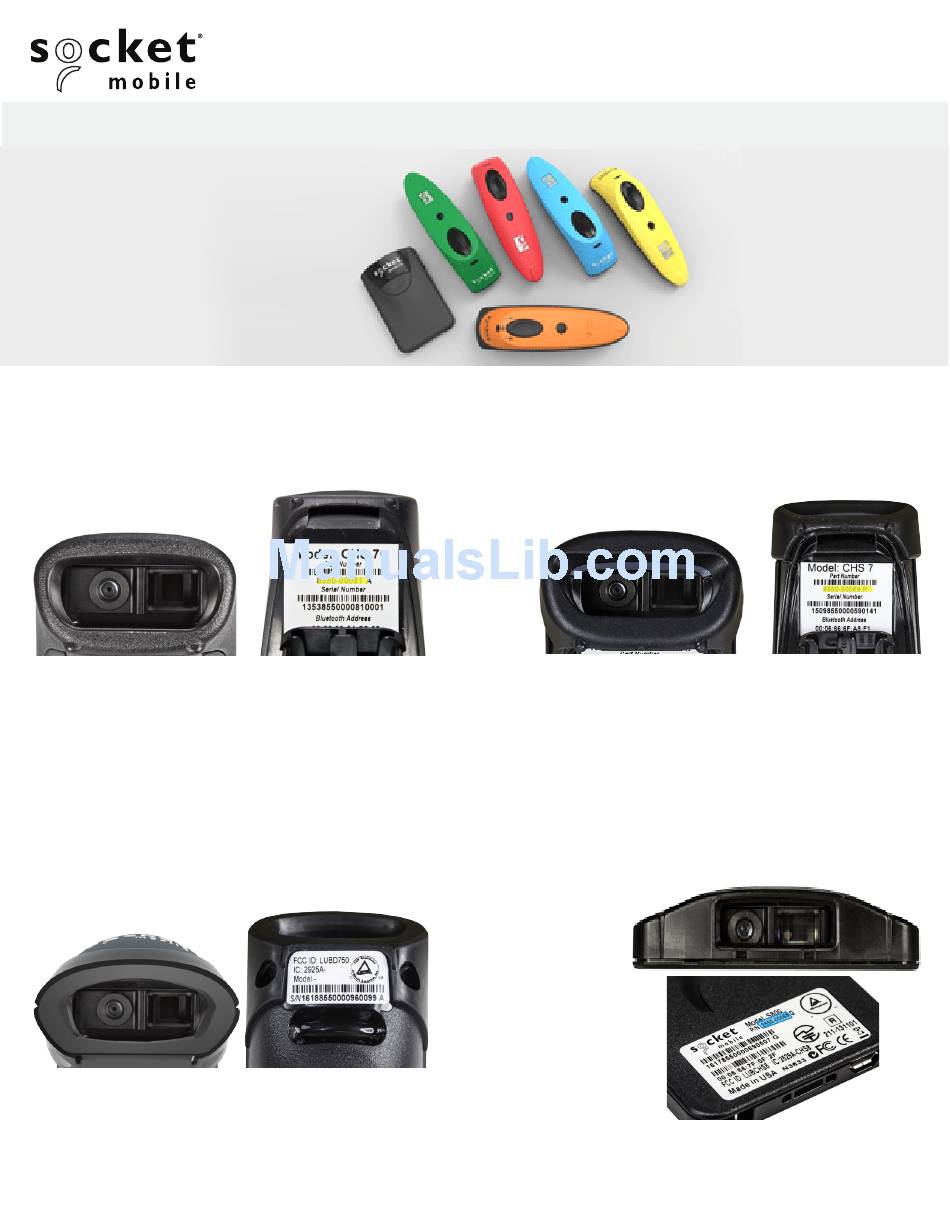

Page 1 COMMAND BARCODES 1D IMAGER MODELS - 7Ci, 7Di, D700, S800 This document pertains to the following 7Ci, 7Di, D700, S800: The part number (P/N) is labeled inside the battery compartment for the CHS 7 Series. Model Model Gray 8550-00065 Blue...
Page 2: Table Of Contents
TABLE OF CONTENTS Advanced Users Only —8 Apple iOS Onscreen Keyboard —8 Automatic Reconnection Settings —11 Bluetooth Connection Mode —4 Bluetooth Connection Mode —10 Bluetooth Connection Roles —10 Data Mode - For SPP Mode Only —11 Data Suffix —5 Factory Defaults —3 HID Keyboard Language Settings —7 Power Button Double key Press —12 Rumble/Beep Modes —6...
Page 3: Factory Defaults
INSTRUCTIONS: Scan command barcode(s) to quickly configure the barcode scanner. Many of the command barcodes only work with a scanner in a particular Bluetooth mode as indicated by the header row of each table. Make sure the scanner is not connected to a host computer or device before scanning a command barcode! To use the scanner on multiple hosts, perform the unpair sequence.
Page 4: Bluetooth Connection
BLUETOOTH CONNECTION MODE All Bluetooth connection modes OK. Scan command barcode(s) to quickly configure the scanner. By default, the scanner is in Basic Mode (HID) as a Keyboard device. IMPORTANT! Make sure the scanner is not connected to a host computer/device before scanning a com- mand barcode! Basic Mode (HID) (default) Configures the scanner to Human Interface Device (HID) mode.
Page 5: Data Suffix
DATA SUFFIX All Bluetooth connection modes OK. You can configure the scanner to automatically add a suffix and/or prefix to each scan of data. Note: Scanning multiple commands in a single instance will overwrite (not append) the previous command. Suffix – Carriage Return (default) Configures the scanner to add a carriage return after decoded data.
Page 6: Rumble/Beep
RUMBLE/BEEP MODES All Bluetooth connection modes OK. IMPORTANT! Make sure the scanner is not connected to a host computer before scanning a command bar- code. Vibrate “On” Enables scanner to vibrate to indicate successful scan #FNB01310001000100FA0000# Vibrate “Off” Disables scanner from vibrating to indicate successful scan #FNB013100010000# Beep “On”...
Page 7: Hid Keyboard Language
HID KEYBOARD LANGUAGE SETTINGS Scan only with scanner in Basic Mode (HID). Scan barcode to enable language. English (Default) #FNB01430001# French #FNB01430002# German #FNB01430003# Spanish #FNB01430004#...
Page 8: Advanced Users Only -8
APPLE iOS ONSCREEN KEYBOARD Scan only with scanner in Basic Mode (HID). Apple iOS Onscreen Keyboard and Beep Enabled (Default) Configures the scanner to activate the iOS onscreen keyboard when connected to an iOS device and the scanner power button is double-pressed. Disable both Onscreen Keyboard and Beep #FNB013A0000000000000000000000000000# Enable Beep...
Page 9 Basic Mode (HID) Keyboard (default) Changes a scanner in HID-Peripheral mode to HID-Keyboard mode. Required for Mac OS and Nokia E71, optional for Apple iOS. #FNB0001000540# Basic Mode (HID) Peripheral Changes a scanner in HID-Keyboard mode to HID-Peripheral mode (optional for Windows and Android). #FNB0001000500# Application Mode (SPP) Configures the scanner to Serial Port Profile (SPP) mode.
Page 10: Bluetooth Connection
BLUETOOTH CONNECTION MODE All Bluetooth Connection Modes OK. Advanced users only. SPP Acceptor Mode Changes the scanner to Bluetooth Serial Port Profile (SPP) mode as an acceptor (waits for computer / de- vice to initiate connection). #FNC SPP Acceptor 000000000000# SPP Initiator Mode Changes the scanner to Bluetooth Serial Port Profile (SPP) mode as an initiator.
Page 11: Data Mode - For Spp Mode Only -11
DATA MODE - FOR SPP MODE ONLY All Bluetooth Connection Modes OK. Advanced users only. Packet Mode (default) Configures the scanner to transmit decoded data in packet format. #FNB013401# Raw Mode Configures the scanner to transmit decoded data in raw (unpacketed) format. Do not scan this barcode in Application Mode (MFi-SPP).
Page 12: Power Button Double Key Press -12
POWER BUTTON DOUBLE KEY PRESS For Basic Mode (HID) only Scanner Engine Command Barcodes Ctrl + Z Scan to Enable WITH BEEP Scan to Enable NO BEEP Ctrl + A Scan to Enable WITH BEEP Scan to Enable NO BEEP Shift + Tab Scan to Enable WITH BEEP Scan to Enable NO BEEP...
Page 13: Scanner Engine Command Barcodes -13
Ctrl + S Scan to Enable WITH BEEP Scan to Enable NO BEEP SCANNER ENGINE COMMAND BARCODES INSTRUCTIONS: Scan command barcode(s) to quickly configure the barcode scanner. Make sure the scanner is not connected to a host computer or device before scanning a command barcode! To use the scanner on multiple hosts, perform the unpair sequence.
Page 14: Disable
UPC/EAN Enable/Disable UPC-A Parameter # 0x01 To enable or disable UPC-A, scan the appropriate bar code below. *Enable UPC-A (0x01) Disable UPC-A (0x00) Enable/Disable UPC-E Parameter # 0x02 To enable or disable UPC-E, scan the appropriate bar code below. *Enable UPC-E (0x01)
Page 15 Disable UPC-E (0x00) Enable/Disable UPC-E1 Parameter # 0x0C To enable or disable UPC-E1, scan the appropriate bar code below. NOTE: UPC-E1 is not a UCC (Uniform Code Council) approved symbology. Enable UPC-E1 (0x01) *Disable UPC-E1 (0x00) Enable/Disable EAN-8 Parameter # 0x04 To enable or disable EAN-8, scan the appropriate bar code below.
Page 16 *Enable EAN-8 (0x01) Disable EAN-8 (0x00) Enable/Disable EAN-13 Parameter # 0x03 To enable or disable EAN-13, scan the appropriate bar code below. *Enable EAN-13 (0x01) Disable EAN-13 (0x00) Enable/Disable Bookland EAN Parameter # 0x53 To enable or disable EAN Bookland, scan the appropriate bar code below.
Page 17: Bookland Isbn Format
Enable Bookland EAN (0x01) *Disable Bookland EAN (0x00) NOTE: If you enable Bookland EAN, select a Bookland ISBN Format on page 49. Also select either Decode UPC/EAN Supplementals, Autodiscriminate UPC/EAN Supplementals, or Enable 978/979 Supplemental Mode in Decode UPC/EAN Supplementals on page 50. Bookland ISBN Format Parameter # 0xF1 0x40 If Bookland EAN is enabled, select one of the following formats for Bookland data:...
Page 18 *Bookland ISBN-10 (0x00) Bookland ISBN-13 (0x01) Decode UPC/EAN Supplementals Parameter # 0x10 Supplementals are appended characters (2 or 5) according to specific code format conventions (e.g., UPC A+2, UPC E+2). Several options are available:  If Decode UPC/EAN with Supplemental characters is selected, the scan engine does not decode UPC/EAN symbols without supplemental characters.
Page 19 (0x00) Decode UPC/EAN With Supplementals (0x01) Autodiscriminate UPC/EAN Supplementals (0x02) Enable 978/979 Supplemental Mode (0x05) Decode UPC/EAN Supplemental Redundancy Parameter # 0x50 With Autodiscriminate UPC/EAN Supplementals selected, this option adjusts the number of times a symbol without supplemental are decoded before transmission. The range is from 2 to 30 times.
Page 20 Decode UPC/EAN Supplemental Redundancy (Default: 7) Transmit UPC-A Check Digit Parameter # 0x28 Scan the appropriate bar code below to transmit the symbol with or without the UPC-A check digit. *Transmit UPC-A Check Digit (0x01) Do Not Transmit UPC-A Check Digit (0x00) Transmit UPC-E Check Digit Parameter # 0x29...
Page 21 *Transmit UPC-E Check Digit (0x01) Do Not Transmit UPC-E Check Digit (0x00) Transmit UPC-E1 Check Digit Parameter # 0x2A Scan the appropriate bar code below to transmit the symbol with or without the UPC-E1 check digit. *Transmit UPC-E1 Check Digit (0x01) Do Not Transmit UPC-E1 Check Digit (0x00)
Page 22 part of a UPC-A symbol. Select one of the following options for transmitting UPC-A preamble to the host device: transmit system character only, transmit system character and country code (“0” for USA), or transmit no preamble. No Preamble (<DATA>) (0x00) *System Character (<SYSTEM CHARACTER>...
Page 23 No Preamble (<DATA>) (0x00) *System Character (<SYSTEM CHARACTER> <DATA>) (0x01) UPC-E1 Preamble Parameter # 0x24 Preamble character (System Character) can be transmitted as part of a UPC-E1 symbol. Select one of the following options for transmitting UPC-E1 preamble to the host device: transmit system character or transmit no preamble.
Page 24 (0x01) Convert UPC-E to UPC-A Parameter # 0x25 Enable this parameter to convert UPC-E (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A programming selections (e.g., Preamble, Check Digit). Scan DO NOT CONVERT UPC-E TO UPC-A to transmit UPC-E (zero suppressed) decoded data.
Page 25: Ean Zero Extend
Convert UPC-E1 to UPC-A (Enable) (0x01) *Do Not Convert UPC-E1 to UPC-A (Disable) (0x00) EAN Zero Extend Parameter # 0x27 When enabled, this parameter adds five leading zeros to decoded EAN-8 symbols to make them compatible in format to EAN-13 symbols and code type would be changed to EAN-13.
Page 26: Code 128
Code 128 Enable/Disable Code 128 Parameter # 0x08 To enable or disable Code 128, scan the appropriate bar code below. *Enable Code 128 (0x01) Disable Code 128 (0x00) Enable/Disable GS1-128 (formerly UCC/EAN-128) Parameter # 0x0E To enable or disable GS1-128, scan the appropriate bar code below. *Enable GS1-128 (0x01)
Page 27 Disable GS1-128 (0x00) Enable/Disable ISBT 128 Parameter # 0x54 To enable or disable ISBT 128, scan the appropriate bar code below. *Enable ISBT-128 (0x01) Disable ISBT-128 (0x00) Code 39 Enable/Disable Code 39 Parameter # 0x00 To enable or disable Code 39, scan the appropriate bar code below. *Enable Code 39...
Page 28: Code 32 Prefix
(0x01) Disable Code 39 (0x00) Convert Code 39 to Code 32 (Italian Pharma Code) Parameter # 0x56 Code 32 is a variant of Code 39 used by the Italian pharmaceutical industry. Scan the appropriate bar code below to enable or disable converting Code 39 to Code 32. NOTE: Code 39 must be enabled in order for this parameter to function.
Page 29: Set Lengths For Code 39
Enable Code 32 Prefix (0x01) *Disable Code 32 Prefix (0x00) Set Lengths for Code 39 Parameter # L1 = 0x12, L2 = 0x13 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Code 39 may be set for any length, one or two discrete lengths, or lengths within a specific range.
Page 30: Code 39 Check Digit Verification
codes beginning on page 93. For example, to decode only those Code 39 symbols containing either 2 or 14 characters, select Code 39 - Two Discrete Lengths, then scan 0, 2, 1, and then 4. To change the selection or cancel an incorrect entry, scan the Cancel bar code on page 94.
Page 31: Transmit Code 39 Check Digit
Verify Code 39 Check Digit (0x01) *Do Not Verify Code 39 Check Digit (0x00) Transmit Code 39 Check Digit Parameter # 0x2B Scan this symbol to transmit the check digit with the data. Transmit Code 39 Check Digit (Enable) (0x01) Scan this symbol to transmit data without the check digit.
Page 32 Enable Code 39 Full ASCII (0x01) *Disable Code 39 Full ASCII (0x00) Code 93 Enable/Disable Code 93 Parameter # 0x09 To enable or disable Code 93, scan the appropriate bar code below. Enable Code 93 (0x01) *Disable Code 93 (0x00)
Page 33: Set Lengths For Code 93
Set Lengths for Code 93 Parameter # L1 = 0x1A, L2 = 0x1B The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Code 93 may be set for any length, one or two discrete lengths, or lengths within a specific range.
Page 34: Interleaved 2 Of 5
Code 93 – Length Within Range Any Length - Scan this option to decode Code 93 symbols containing any number of characters. Code 93 – Any Length Interleaved 2 of 5 Enable/Disable Interleaved 2 of 5 Parameter # 0x06 To enable or disable Interleaved 2 of 5, scan the appropriate bar code below. *Enable Interleaved 2 of 5 (0x01) Disable Interleaved 2 of 5...
Page 35 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for I 2 of 5 may be set for any length, one or two discrete lengths, or lengths within a specific range. To set lengths via serial commands, see Setting Code Lengths Via Serial Commands.
Page 36: I 2 Of 5 Check Digit Verification
Any Length - Scan this option to decode I 2 of 5 symbols containing any number of characters. NOTE: Selecting this option may lead to misdecodes for I 2 of 5 codes. I 2 of 5 – Any Length I 2 of 5 Check Digit Verification Parameter # 0x31 When enabled, this parameter checks the integrity of an I 2 of 5 symbol to ensure it complies with a specified algorithm, either USS (Uniform Symbology Specification),...
Page 37: Transmit I 2 Of 5 Check Digit
Transmit I 2 of 5 Check Digit Parameter # 0x2C Scan this symbol to transmit the check digit with the data. Transmit I 2 of 5 Check Digit (Enable) (0x01) Scan this symbol to transmit data without the check digit. *Do Not Transmit I 2 of 5 Check Digit (Disable) (0x00) Discrete 2 of 5...
Page 38: Set Lengths For Discrete 2 Of 5
*Disable Discrete 2 of 5 (0x00) Set Lengths for Discrete 2 of 5 Parameter # L1 = 0x14, L2 = 0x15 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for D 2 of 5 may be set for any length, one or two discrete lengths, or lengths within a specific range.
Page 39 D 2 of 5 – Length Within Range Any Length - Scan this option to decode D 2 of 5 symbols containing any number of characters. NOTE: Selecting this option may lead to misdecodes for D 2 of 5 codes. D 2 of 5 –...
Page 40: Set Lengths For Codabar
Set Lengths for Codabar Parameter # L1 = 0x18, L2 = 0x19 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Lengths for Codabar may be set for any length, one or two discrete lengths, or lengths within a specific range. To set lengths via serial commands, see Setting Code Lengths Via Serial Commands.
Page 41: Clsi Editing
Codabar – Length Within Range Any Length - Scan this option to decode Codabar symbols containing any number of characters. Codabar – Any Length CLSI Editing Parameter # 0x36 When enabled, this parameter strips the start and stop characters and inserts a space after the first, fifth, and tenth characters of a 14-character Codabar symbol.
Page 42 When enabled, this parameter strips the start and stop characters from decoded Codabar symbol. Enable NOTIS Editing (0x01) *Disable NOTIS Editing (0x00) Enable/Disable MSI Parameter # 0x0B To enable or disable MSI, scan the appropriate bar code below. Enable MSI (0x01) *Disable MSI (0x00)
Page 43: Set Lengths For Msi
Set Lengths for MSI Parameter # L1 = 0x1E, L2 = 0x1F The length of a code refers to the number of characters (i.e., human readable characters) the code contains, and includes check digits. Lengths for MSI can be set for any length, one or two discrete lengths, or lengths within a specific range.
Page 44: Msi Check Digits
MSI – Length Within Range Any Length - Scan this option to decode MSI symbols containing any number of characters. NOTE: Selecting this option may lead to misdecodes for MSI codes. MSI- Any Length MSI Check Digits Parameter # 0x32 These check digits at the end of the bar code verify the integrity of the data.
Page 45: Msi Check Digit Algorithm
Scan this symbol to transmit the check digit with the data. Transmit MSI Check Digit (Enable) (0x01) Scan this symbol to transmit data without the check digit. *Do Not Transmit MSI Check Digit (Disable) (0x00) MSI Check Digit Algorithm Parameter # 0x33 When the Two MSI check digits option is selected, an additional verification is required to ensure integrity.
Page 46: Gs1 Databar
GS1 DataBar Enable/Disable GS1 DataBar-14 Parameter # 0xF0 0x52 To enable or disable GS1 DataBar-14, scan the appropriate bar code below. Enable GS1 DataBar-14 (0x01) *Disable GS1 DataBar-14 (0x00) Enable/Disable GS1 DataBar Limited Parameter # 0xF0 0x53 To enable or disable GS1 DataBar Limited, scan the appropriate bar code below. Enable GS1 DataBar Limited (0x01)
Page 47: Matrix 2 Of
*Disable GS1 DataBar Limited (0x00) Enable/Disable GS1 DataBar Expanded Parameter # 0xF0 0x54 To enable or disable GS1 DataBar Expanded, scan the appropriate bar code below. Enable GS1 DataBar Expanded (0x01) *Disable GS1 DataBar Expanded (0x00) Matrix 2 of 5 Enable/Disable Matrix 2 of 5 Parameter # 0xF1 0x6A To enable or disable Matrix 2 of 5, scan the appropriate bar code below.
Page 48: Set Lengths For Matrix 2 Of 5
*Disable Matrix 2 of 5 (0x00) Set Lengths for Matrix 2 of 5 Parameter # L1 = 0xF1 0x6B L2 = 0xF1 0x6C The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains. Set lengths for Matrix 2 of 5 to any length, one or two discrete lengths, or lengths within a specific range.
Page 49: Matrix 2 Of 5 Redundancy
93. For example, to decode Matrix 2 of 5 symbols containing between 4 and 12 characters, first scan Matrix 2 of 5 - Length Within Range. Then scan 0, 4, 1, and 2 (enter a leading zero for single digit numbers). To correct an error or change the selection, scan Cancel bar code on page 94.
Page 50: Matrix 2 Of 5 Check Digit
Matrix 2 of 5 Check Digit Parameter # 0xF1 0x6E The check digit is the last character of the symbol used to verify the integrity of the data. Scan the appropriate bar code below to transmit the bar code data with or without the Matrix 2 of 5 check digit.
Page 51 *Do Not Transmit Matrix 2 of 5 Check Digit (0x00) Telepen Enable/Disable Telepen Parameter # 0xF1 0xC1 To enable or disable Telepen, scan the appropriate bar code below. Enable Telepen (0x01) *Disable Telepen (0x00) Set Lengths for Telepen Parameter # L1 = 0xF1 0xC2, L2 = 0xF1 0xC3 The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s) the code contains.
Page 52 decode only Telepen symbols containing 14 characters. Numeric bar codes beginning on page 93. To change the selection or cancel an incorrect entry, scan the Cancel code on page 94. Telepen – One Discrete Length Two Discrete Lengths - Select this option to decode only those codes containing two selected lengths.
Page 53 Plessey Enable/Disable Plessey Parameter # 0xF1 0xC4 To enable or disable Plessey, scan the appropriate bar code below. Enable Plessey (0x01) *Disable Plessey (0x00) UK Plessey Conversion Parameter # 0xF1 0xC5 Decide whether to change each occurrence of the character ‘A’ to character ‘X’ in the decoded data.
Page 54 *Do Not Convert to UK Plessey (0x00) Transmit Plessey Check Digit Parameter # 0xF1 0xC6 Scan a bar code below to transmit Plessey data with or without the check digit. Transmit Plessey Check Digit (0x01) *Do Not Transmit Plessey Check Digit (0x00) Set Lengths for Plessey Parameter # L1 = 0xF1 0xC7, L2 = 0xF1 0xC8...
Page 55 decode only Plessey symbols containing 14 characters. Numeric bar codes beginning on page 93. To change the selection or cancel an incorrect entry, scan the Cancel code on page 94. Plessey – One Discrete Length Two Discrete Lengths - Select this option to decode only those codes containing two selected lengths.
