CyberData 11115 Operation Manual page 28

6. Click the Update Firmware button to open the Upgrade Firmware page. See
Note
7. Enter the IP address of your TFTP server into the TFTP Server IP parameter field.
8. Enter the firmware filename of the file to be uploaded into the New Filename parameter field.
For example, kernel filename 100-uImage-pagingamp.bin.
9. Click Upload File.
Note
Operations Guide

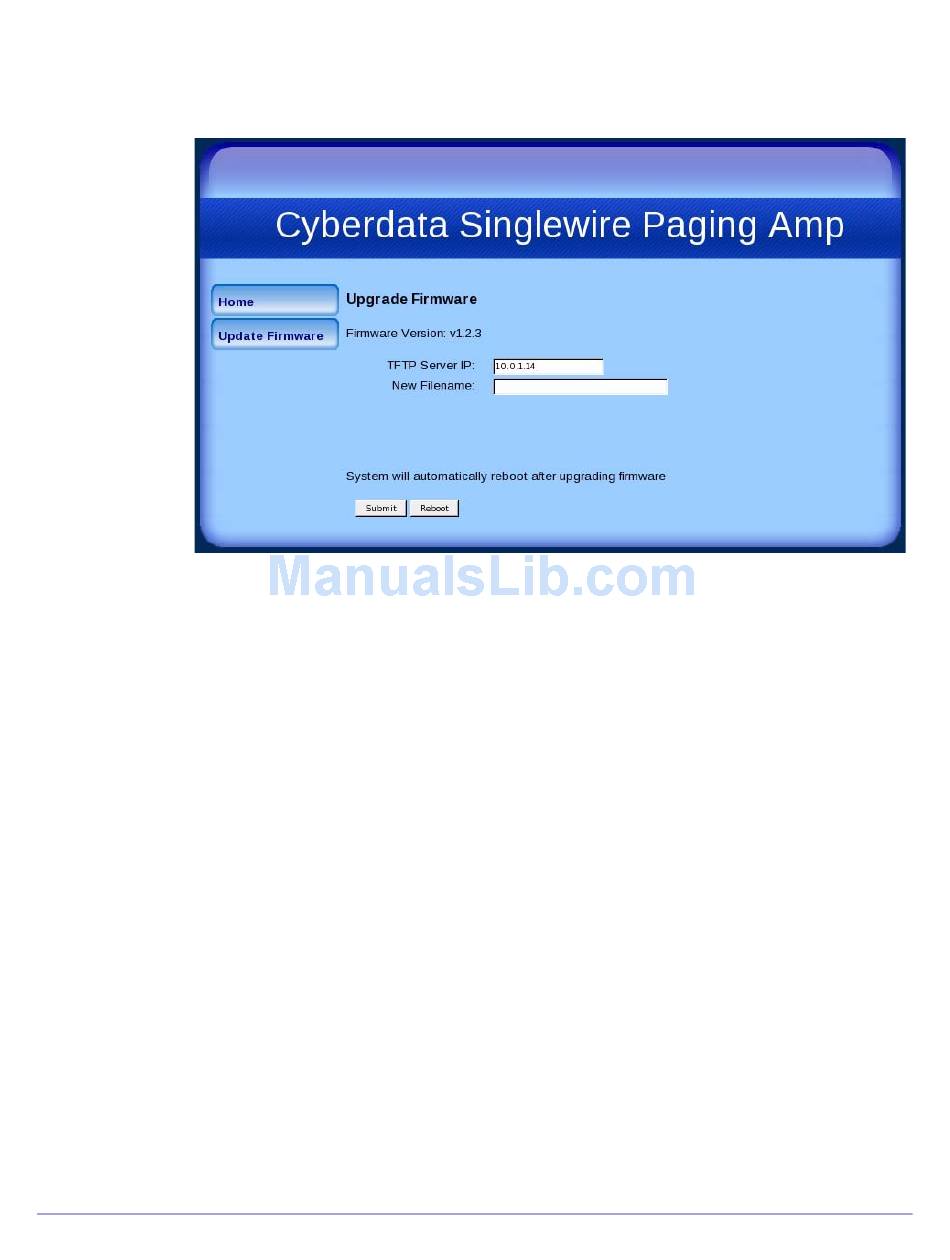

Figure 2-16. Firmware Upgrade Page
Figure 2-16 shows the factory default settings.
This starts the upload process. Once the Loudspeaker Amplifier has uploaded the file, the
Uploading Firmware countdown page appears, indicating that the firmware is being
written to flash. The Loudspeaker Amplifier will automatically reboot when the upload is
complete. When the countdown finishes, the Upgrade Firmware page will refresh. The
uploaded firmware filename should be displayed in the system configuration (indicating
successful upload and reboot).
930376B
Installing the VoIP V2 Loudspeaker Amplifier
Configure the Loudspeaker Amplifier Parameters
CyberData Corporation
21
Figure 2-16.
