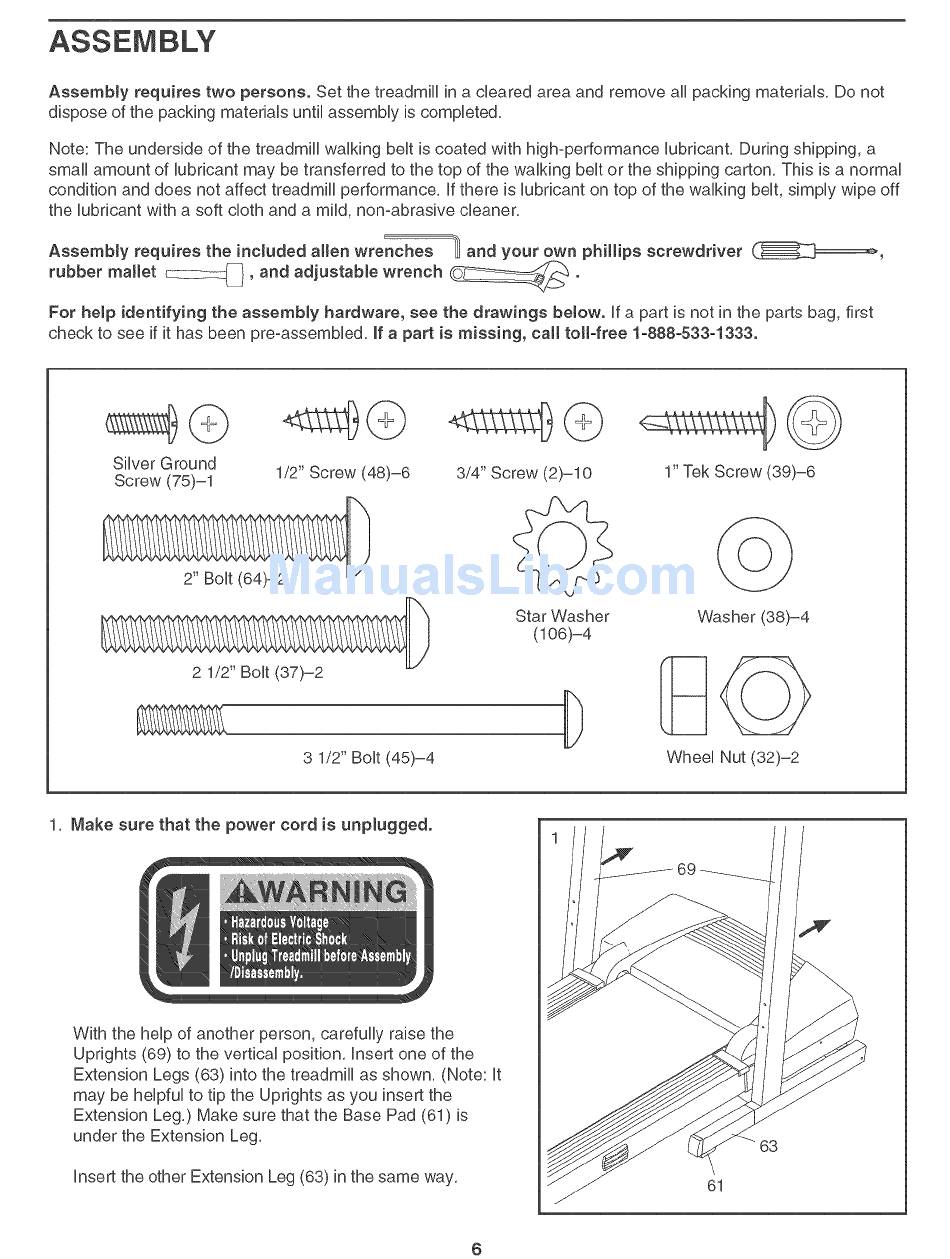

ASSEMBLY
Assembly requires two persons. Set the treadmHUin a cleared area and remove aH packing matedaUs, Do not
dispose of the packing matedaUs until assemMy is compbted,
Note: The underside of the treadmill walking belt is coated with high@erformance lubricant, During shipping, a
small amount of lubricant may be transferred to the top of the walking belt or the shipping carton, This is a normal
condition and does not affect treadmill performance, if there is lubricant on top of the walking belt, simply wipe off
the lubricant with a soft cloth and a mild, non-abrasive cleaner,
E
Assembly requires the included allen wrenches _ and your own phillips screwdriver
rubber mallet _x(_, and adjustable wrench _ .
For help identifying the assembJy hardware, see the drawings below, if a part is not in the parts bag, first
check to see if it has been pre-assembled, If a part is missing, call toll-free 1-888-533-1333.
Silver Ground
Screw (75)-1
2" Bolt (64)-2
<ns 1} @
3/4" Screw (2)-10
Star Washer
(106)-4
2 1/2" Bolt (37)-2
3 1/2" Bolt (45)-4
1" Tek Screw (39)-6
Washer (38)-4
Wheel Nut (32)-2
1, Make sure that the power cord is unplugged.
With the help of another person, carefully raise the
Uprights (69) to the vertical position, insert one of the
Extension Legs (63) into the treadmill as shown, (Note: it
may be helpful to tip the Uprights as you insert the
Extension Leg,) Make sure that the Base Pad (61) is
under the Extension Leg,
insert the other Extension Leg (63) in the same way,
63
61
6
