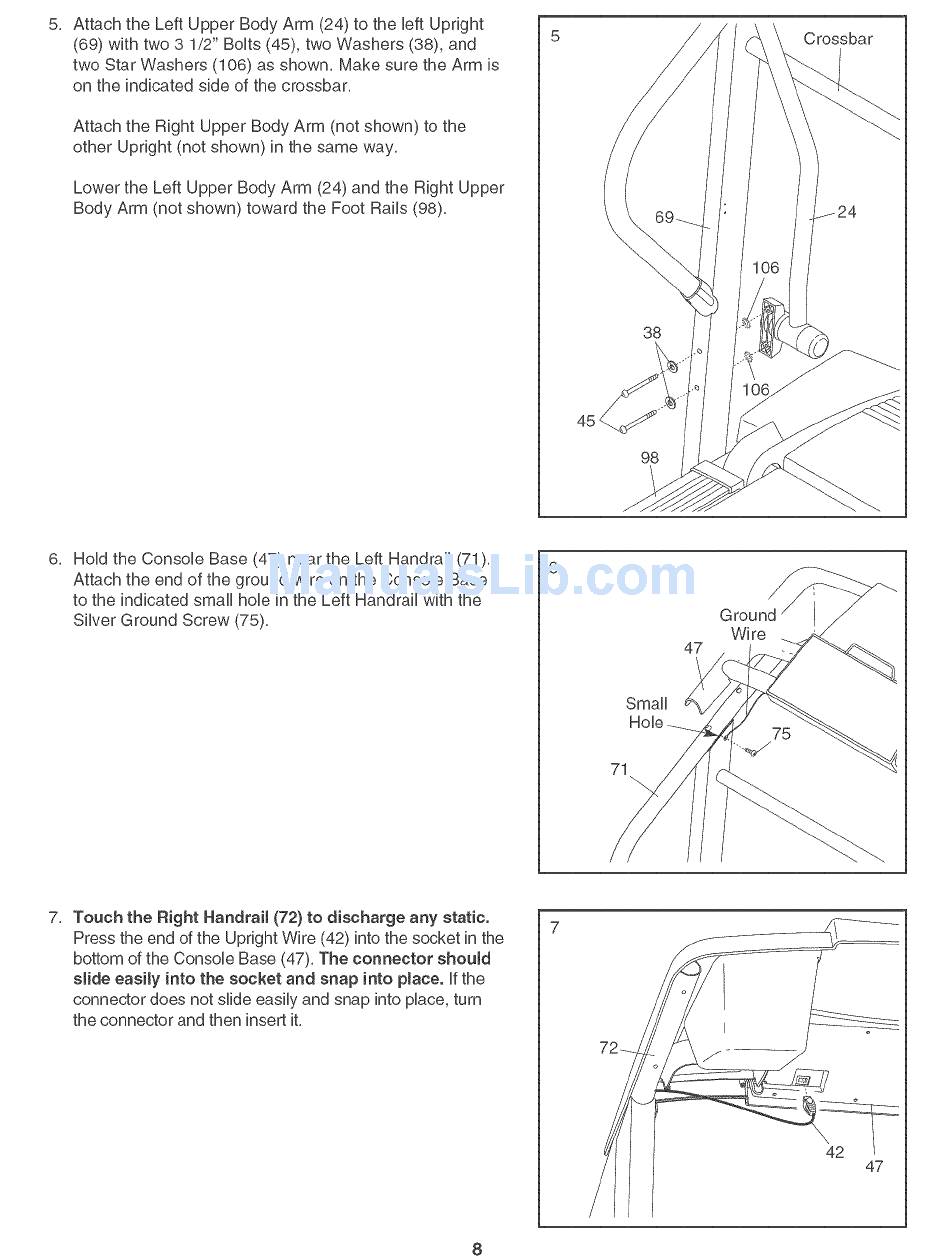

5, Attach the Left Upper Body Arm (24) to the UeftUpright
(69) with two 3 1/2" BoUts(45), two Washers (38), and
two Star Washers (106) as shown, Make sure the Arm is
on the indicated side of the crossbar,
Attach the Right Upper Body Arm (not shown) to the
other Upright (not shown) in the same way,
Lower the Left Upper Body Arm (24) and the Right Upper
Body Arm (not shown) toward the Foot Rails (98),
45
38
98
Crossbar
6, Hold the Console Base (47) near the Left Handrail (71),
Attach the end of the ground wire on the Console Base
to the indicated small hole in the Left Handrail with the
Silver Ground Screw (75),
47
Small
71
Ground
Wire
7, Touch the Right Handrail (72) to discharge any static.
Press the end of the Upright Wire (42) into the socket in the
bottom of the ConsoUe Base (47), The connector shouJd
sJide easily into the socket and snap into place. Uf t he
connector does not slide easily and snap into pUace,turn
the connector and then insert it,
42
47
8
