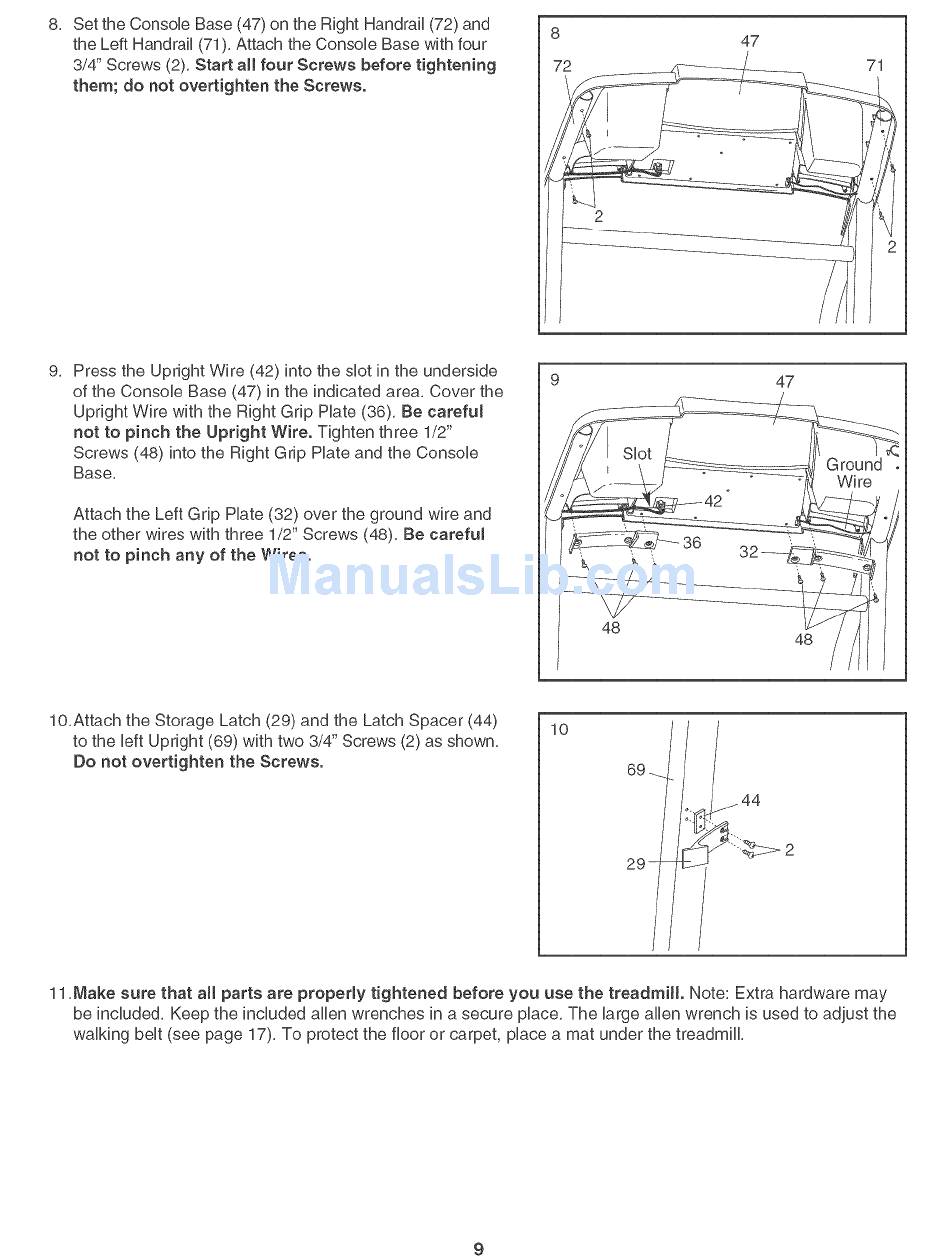

8, Set the ConsoUeBase (47) on the Right Handrail (72) and
the Left Handrail (71), Attach the ConsoUe Base with four
3/4" Screws (2), Start all four Screws before tightening
them; do not overtighten the Screws.
8
72
47
71
9, Press the Upright Wire (42) into the sUotin the underside
of the ConsoUe Base (47) in the indicated area, Cover the
Upright Wire with the Right Grip Hate (36), Be carefut
not to pinch the Upright Wire, Tighten three 1/2"
Screws (48) into the Right Grip Hate and the ConsoUe
Base,
Attach the Left Grip Hate (32) over the ground wire and
the other wires with three 1/2" Screws (48), Be careful
not to pinch any of the Wires,
48
47
48
lO,Attach the Storage Latch (29) and the Latch Spacer (44)
to the UeftUpright (69) with two 3/4" Screws (2) as shown,
Do not overtighten the Screws,
10
11 ,Make sure that all parts are properly tightened before you use the treadmill, Note: Extra hardware may
be included, Keep the incUuded allen wrenches in a secure place, The large allen wrench is used to adjust the
walking belt (see page 17), To protect the floor or carpet, place a mat under the treadmill,
