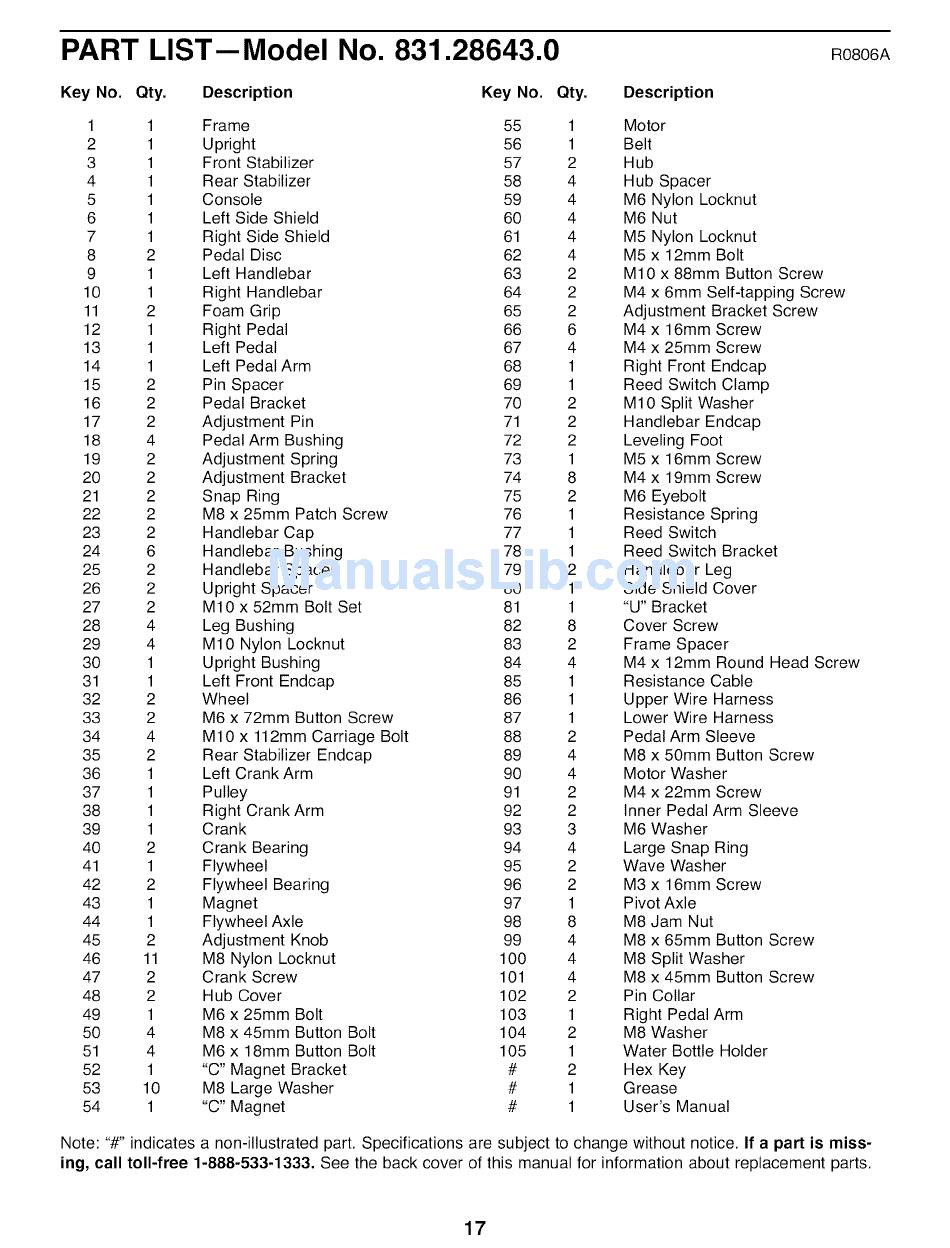

PART LIST--Model
No. 831.28643.0
ROBO6A
Key No.
Qty.
Description
Key No.
Qty.
Description
1
1
Frame
55
1
Motor
2
1
Upright
56
1
Belt
3
1
Front Stabilizer
57
2
Hub
4
1
Rear Stabilizer
58
4
Hub Spacer
5
1
Console
59
4
M6 Nylon Locknut
6
1
Left Side Shield
60
4
M6 Nut
7
1
Right Side Shield
61
4
M5 Nylon Locknut
8
2
Pedal Disc
62
4
M5 x 12mm Bolt
9
1
Left Handlebar
63
2
MIO x 88mm Button Screw
10
1
Right Handlebar
64
2
M4 x 6mm Self-tapping Screw
11
2
Foam Grip
65
2
Adjustment Bracket Screw
12
1
Right Pedal
66
6
M4 x 16mm Screw
13
1
Left Pedal
67
4
M4 x 25mm Screw
14
1
Left Pedal Arm
68
1
Right Front Endcap
15
2
Pin Spacer
69
1
Reed Switch Clamp
16
2
Pedal Bracket
70
2
M10 Split Washer
17
2
Adjustment Pin
71
2
Handlebar Endcap
18
4
Pedal Arm Bushing
72
2
Leveling Foot
19
2
Adjustment Spring
73
1
M5 x 16mm Screw
20
2
Adjustment Bracket
74
8
M4 x 19mm Screw
21
2
Snap Ring
75
2
M6 Eyebolt
22
2
M8 x 25mm Patch Screw
76
1
Resistance Spring
23
2
Handlebar Cap
77
1
Reed Switch
24
6
Handlebar Bushing
78
1
Reed Switch Bracket
25
2
Handlebar Spacer
79
2
Handlebar Leg
26
2
Upright Spacer
80
1
Side Shield Cover
27
2
MIO x 52mm Bolt Set
81
1
"U" Bracket
28
4
Leg Bushing
82
8
Cover Screw
29
4
MIO Nylon Locknut
83
2
Frame Spacer
30
1
Upright Bushing
84
4
M4 x 12mm Round Head Screw
31
1
Left Front Endcap
85
1
Resistance Cable
32
2
Wheel
86
1
Upper Wire Harness
33
2
M6 x 72mm Button Screw
87
1
Lower Wire Harness
34
4
M10 x 112mm Carriage Bolt
88
2
Pedal Arm Sleeve
35
2
Rear Stabilizer Endcap
89
4
M8 x 50mm Button Screw
36
1
Left Crank Arm
90
4
Motor Washer
37
1
Pulley
91
2
M4 x 22mm Screw
38
1
Right Crank Arm
92
2
Inner Pedal Arm Sleeve
39
1
Crank
93
3
M6 Washer
40
2
Crank Bearing
94
4
Large Snap Ring
41
1
Flywheel
95
2
Wave Washer
42
2
Flywheel Bearing
96
2
M3 x 16mm Screw
43
1
Magnet
97
1
Pivot Axle
44
1
Flywheel Axle
98
8
M8 Jam Nut
45
2
Adjustment Knob
99
4
M8 x 65mm Button Screw
46
11
M8 Nylon Locknut
100
4
M8 Split Washer
47
2
Crank Screw
101
4
M8 x 45mm Button Screw
48
2
Hub Cover
102
2
Pin Collar
49
1
M6 x 25mm Bolt
103
1
Right Pedal Arm
50
4
M8 x 45mm Button Bolt
104
2
M8 Washer
51
4
M6 x 18mm Button Bolt
105
1
Water Bottle Holder
52
1
"C" Magnet Bracket
#
2
Hex Key
53
10
M8 Large Washer
#
1
Grease
54
1
"C" Magnet
#
1
User's Manual
Note: "#" indicates a non-illustrated
part. Specifications
are subject to change without notice. If a part is miss-
ing, call toll-free
1-888-533-1333.
See the back cover of this manual for information about replacement parts.
17
