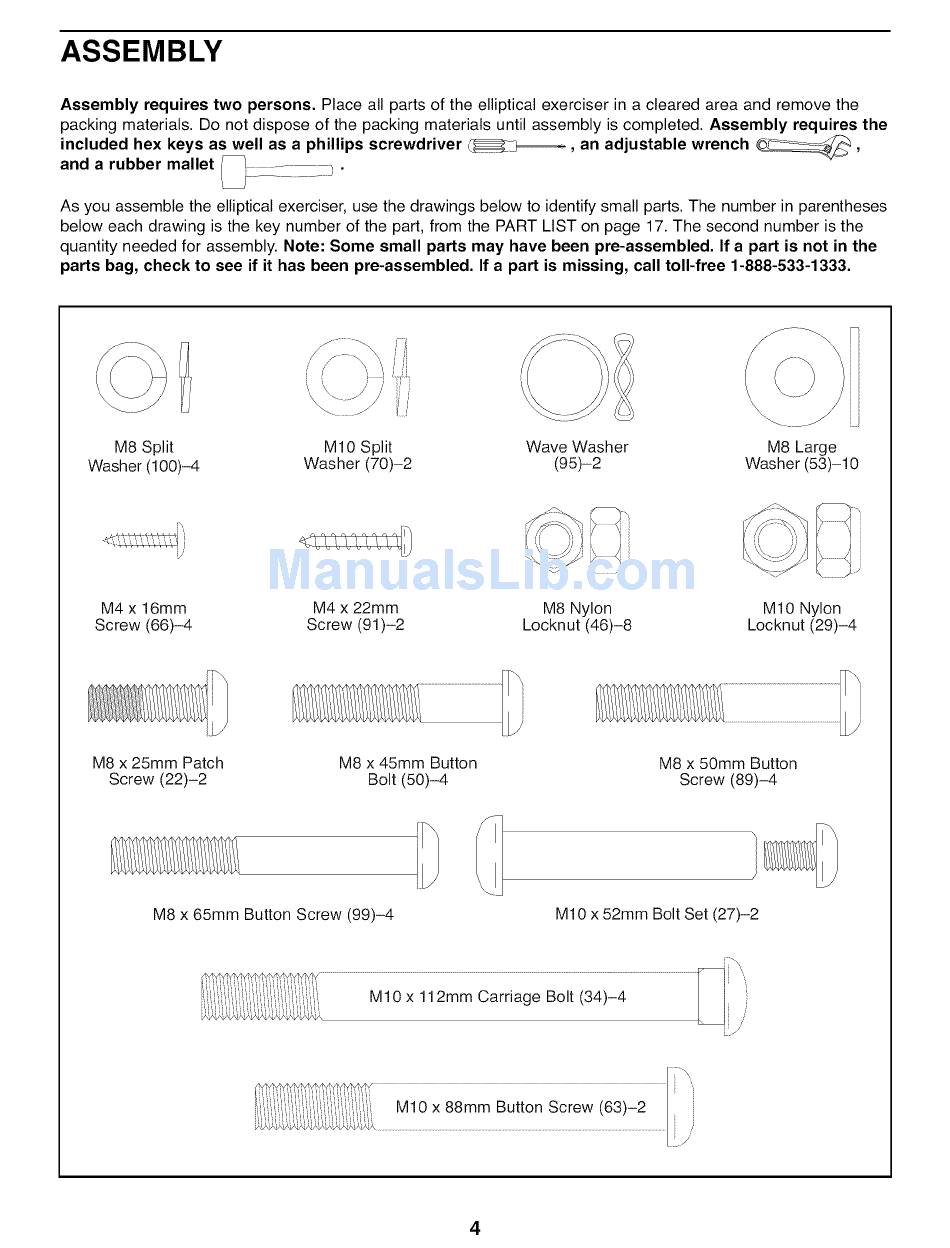

ASSEMBLY
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. Assembly requires the
included hex keys as well as a phillips screwdriver _-__, an adjustable wrench
and a rubber mallet _ ............... 3 •
As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses
below each drawing is the key number of the part, from the PART LIST on page 17. The second number is the
quantity needed for assembly. Note: Some small parts may have been pre-assembled. If a part is not in the
parts bag, check to see if it has been pre-assembled. If a part is missing, call toll-free 1-888-533-1333.
\
\.
Wave Washer
(95)-2
M8 Split MIO Split M8 Large
Washer (100)-4 Washer (70)-2 Washer (53)-10
=,
M4 x 16mm M4 x 22mm M8 Nylon M10 Nylon
Screw (66)-4 Screw (91)-2 Locknut (46)-8 Locknut (29)-4
M8 x 25mm Patch
Screw (22)-2
M8 x 45mm Button
Bolt (50)-4
M8 x 50mm Button
Screw (89)-4
M8 x 65mm Button Screw (99)-4 M10 x 52mm Bolt Set (27)-2
4
