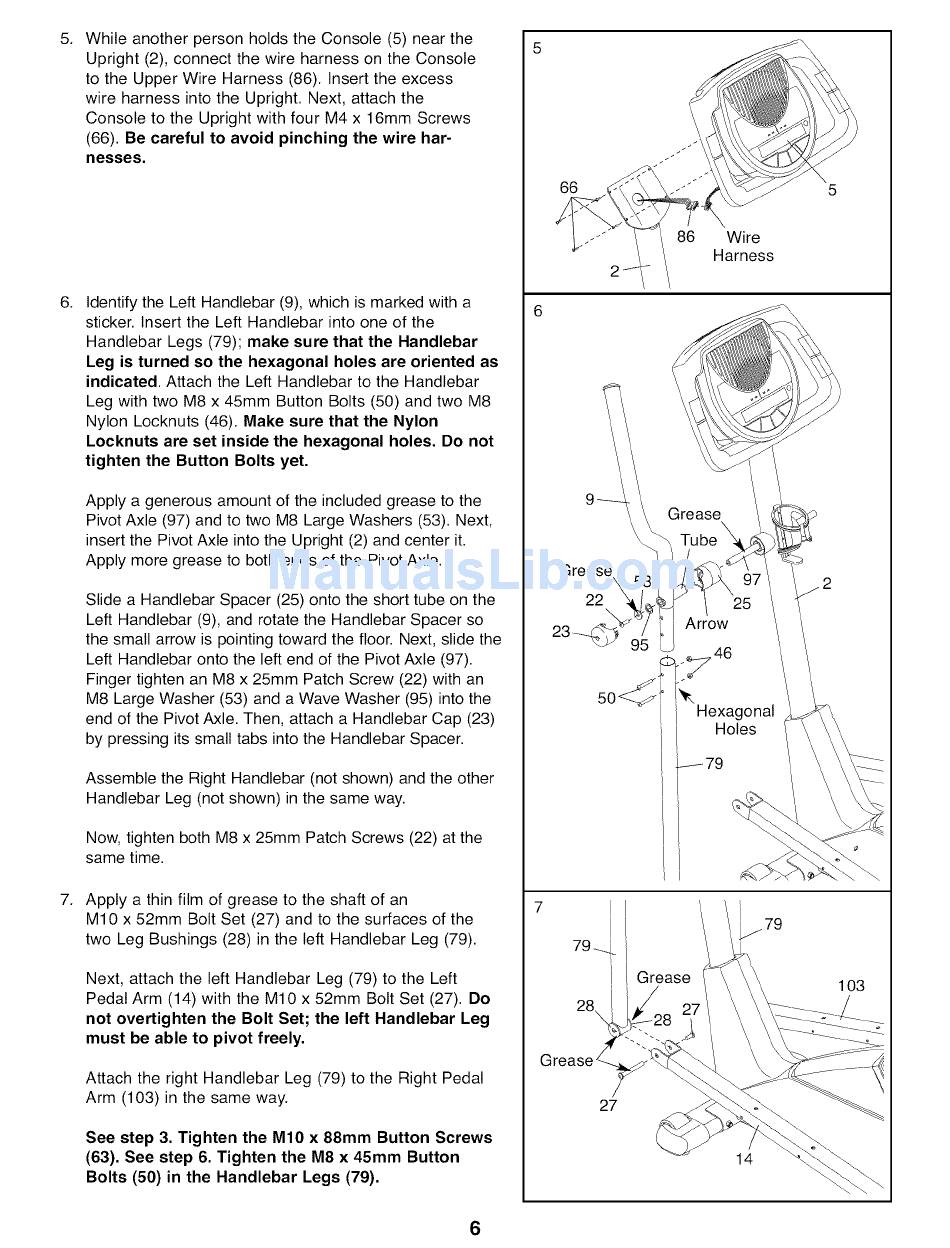

5. Whileanother p erson holdstheConsole (5)nearthe
Upright ( 2),connect t hewireharness ontheConsole
to theUpper WireHarness (86).Insert t heexcess
wireharness intothe Upright. N ext,attach the
Console tothe Upright withfourM4x 16mmScrews
(66).Be carefulto avoidpinchingthe wirehar-
nesses.
6. Identify the Left Handlebar (9), which is marked with a
sticker. Insert the Left Handlebar into one of the
Handlebar Legs (79); make sure that the Handlebar
Leg is turned so the hexagonal holes are oriented as
indicated. Attach the Left Handlebar to the Handlebar
Leg with two M8 x 45mm Button Bolts (50) and two M8
Nylon Locknuts (46). Make sure that the Nylon
Locknuts are set inside the hexagonal holes. Do not
tighten the Button Bolts yet,
Apply a generous amount of the included grease to the
Pivot Axle (97) and to two M8 Large Washers (53). Next,
insert the Pivot Axle into the Upright (2) and center it.
Apply more grease to both ends of the Pivot Axle.
Slide a Handlebar Spacer (25) onto the short tube on the
Left Handlebar (9), and rotate the Handlebar Spacer so
the small arrow is pointing toward the floor. Next, slide the
Left Handlebar onto the left end of the Pivot Axle (97).
Finger tighten an M8 x 25mm Patch Screw (22) with an
M8 Large Washer (53) and a Wave Washer (95) into the
end of the Pivot Axle. Then, attach a Handlebar Cap (23)
by pressing its small tabs into the Handlebar Spacer.
Assemble the Right Handlebar (not shown) and the other
Handlebar Leg (not shown) in the same way.
Now, tighten both M8 x 25mm Patch Screws (22) at the
same time.
7. Apply a thin film of grease to the shaft of an
M10 x 52mm Bolt Set (27) and to the surfaces of the
two Leg Bushings (28) in the left Handlebar Leg (79).
Next, attach the left Handlebar Leg (79) to the Left
Pedal Arm (14) with the M10 x 52mm Bolt Set (27). Do
not overtighten the Bolt Set; the left Handlebar Leg
must be able to pivot freely.
Attach the right Handlebar Leg (79) to the Right Pedal
Arm (103) in the same way.
See step 3. Tighten the M10 x 88mm Button Screws
(63). See step 6. Tighten the M8 x 45mm Button
Bolts (50) in the Handlebar Legs (79),
66
86 Wire
Harness
Grease 53
23
2--_,_i
5o !
Hexagonal
Holes
27
14
103
6
