Video Output Port
The video output port provides connection to the monitor. The recommended cable length is
less than three meters. The following table provides the pin connections for the video output
port.
Signal Name
Red Analog Video
Green Analog Video
Blue Analog Video
Monitor ID [2]
Ground
Ground
Ground
Ground
Supply +5V
Ground
Monitor ID [0]
Monitor ID [1] or Bidirectional Data (SDA) for DDC
Horizontal/Composite Sync
Vertical Sync
Monitor ID [3] or Data Clock (SCL) for DDC

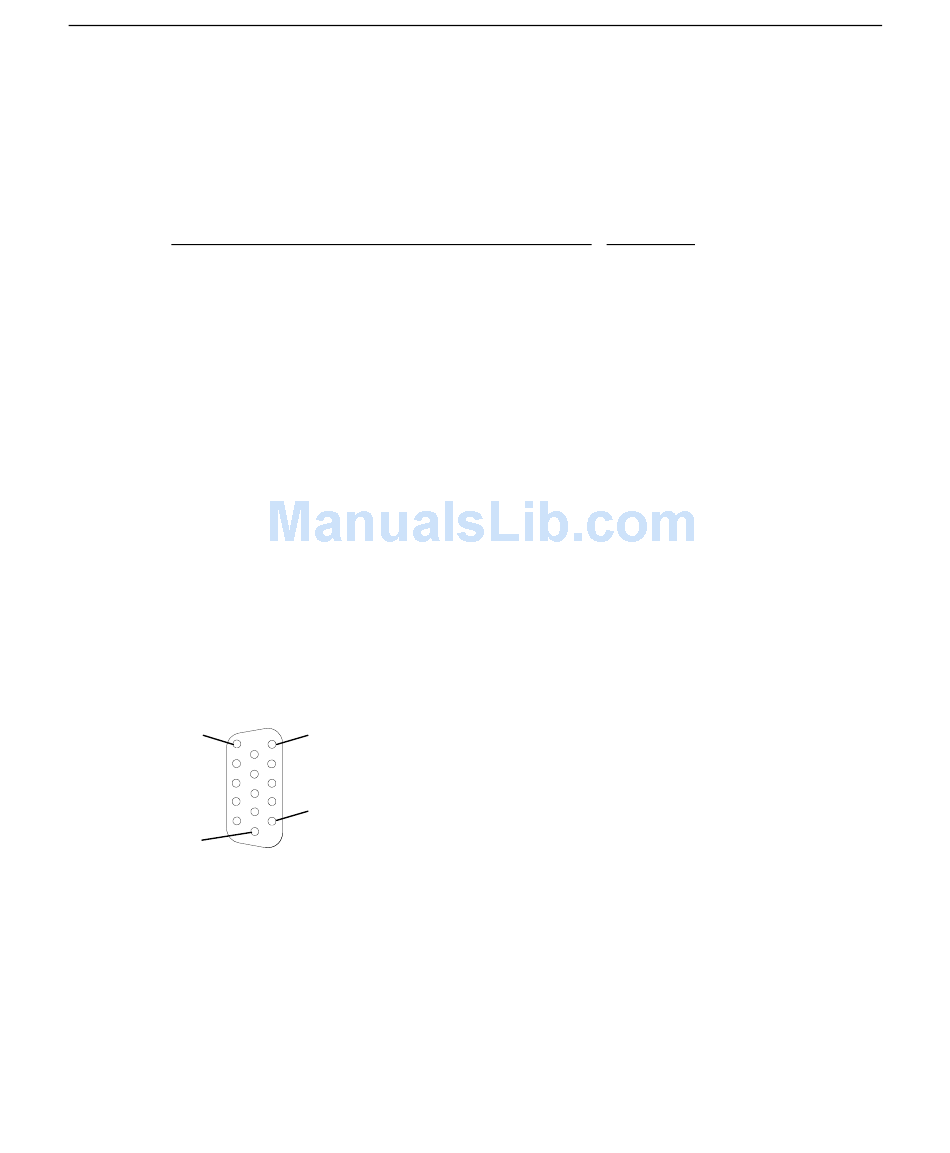

The video output port is female, 15-pin, D-Sub as shown in the following figure.
15
6
5
1
Pin
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
21
