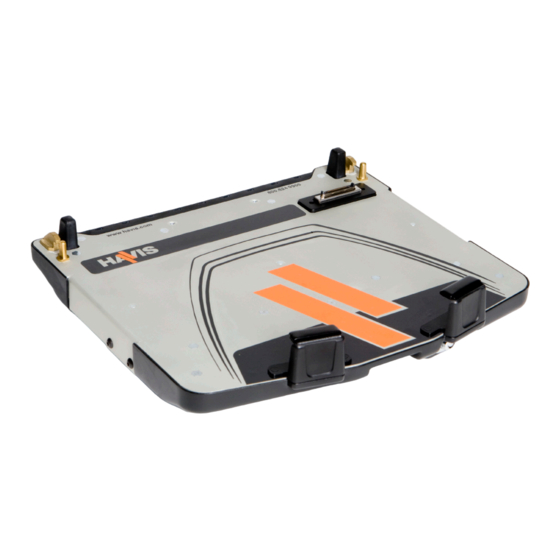

- Page 1 DS-PAN-401 Havis Rugged Mobile Docking Station For Panasonic CF52 Toughbook www.havis.com 1-800-524-9900 D5-0031-IS-A...
-
Page 2: Before Beginning
Related Products Havis offers a wide variety of accessory products specifically or use Havis is pleased to provide these set-up instructions to aid in the proper with the DS-PAN-401 docking station. For more information or to installation and use of the DS-PAN-401 docking station for the Panasonic CF52 order please visit www.havis.com. -
Page 3: Operation - Undocking
M5 Screws ) 3). Once unlatched grab both sides of computer and • 5/32 Hex Drive ( For attaching carefully lift out of dock, rear end first. mounting bracket to motion device with 1/4” -20 screws) www.havis.com • 1-800-524-9900... -
Page 4: Specifications
Brackets Locator Pin Front Latching Handle Front Latching Handle 4). With computer seated on dock pull latch handle forward Barrel Lock/Dock Release until latched. 5). If desired secure computer by locking barrel lock with supplied key. www.havis.com • 1-800-524-9900... -
Page 5: Installation
1). Remove the mounting bracket from the docking station. Next install the bracket to the motion device using (3) 1/4“- 2). Using Havis LPS- 103 (120W power supply) connect 20 button head screws (supplied). Torque screws to 13.4Nm output cable of power supply to input of docking station. -
Page 6: Cable Management
Integral loops for strain relieving Tie off to bracket This loop must be large enough to allow full range of rotation and extension without yanking connections. Tie off on stationary part of the mounting system www.havis.com • 1-800-524-9900...
