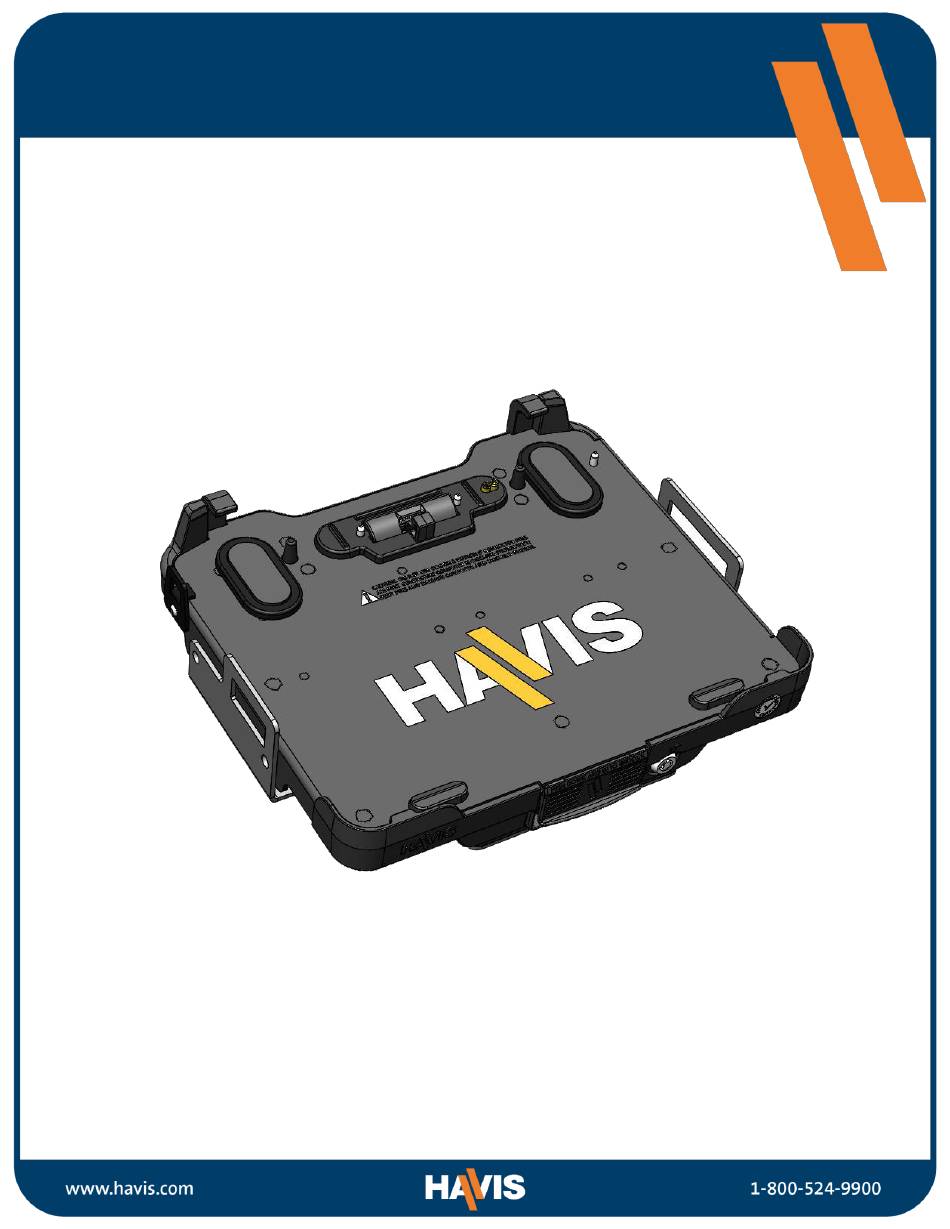

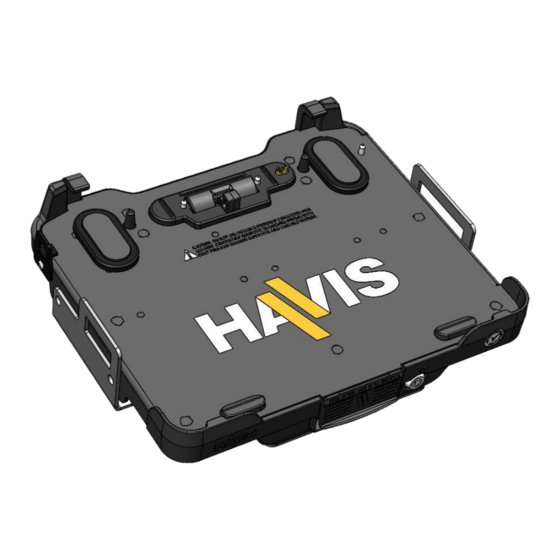

- Page 1 Owner’s Manual Havis Docking Station For Panasonic TOUGHBOOK G2 2-in-1 DS-PAN-1010 Series DS-PAN-1011 DS-PAN-1012 DS-PAN-1013 DS-PAN-1014 DS-PAN-1015 DS-PAN-1016 DS-PAN-1011-2 DS-PAN-1012-2 DS-PAN-1014-2 DS-PAN-1015-2 Havis, Inc. 75 Jacksonville Road Warminster, PA 18974 DS-PAN-1010-SERIES_OMN_1-22...
-
Page 2: Before Beginning
90 W certifiée de qualité automobile, approuvée par Panasonic et conçue pour une sortie continue et régulée de 16 VDC (numéro de pièce Havis LPS-102 ou équivalent). Le non-respect de cette exigence entraînera des dommages au produit qui ne sont PAS réparables et qui ne sont PAS couverts par la garantie. -
Page 3: Specifications
Bruce Jonik, Director of Engineering , Havis, Inc. FCC 47CFR, Part 15 compliance: This is an FCC Class B device. Any changes or modifications to the model DS-PAN-10XY-Z not expressly approved by Havis, Inc. could void the user's authority to operate this equipment. -
Page 4: Parts Included
Parts Included Docking Station Rear Hooks (x2) Docking Connector with Connector Protection Locator Pins (x2) RF Pass Through (optional) Ground Pins (x3) Front Fence Release Handle Barrel Lock Front Hooks (x2) Cable Routing Channel Ports Strain Relief Points Mounting Bracket... -
Page 5: Antenna Identification
(For attaching Mounting Bracket to Motion Device with Button Head 1/4”-20 Screws) • #3 Phillips (For attaching Docking Station to Mounting Bracket with Button Head 1/4”-20 Screws) Antenna Identification DS-PAN-1011-2, DS-PAN-1012-2, DS-PAN-1014-2, DS-PAN-1015-2 Antenna Connectors (TNC) Computer Interface Top View Bottom View... -
Page 6: Port Replication Capability
Port Replication Capability Forward Facing Ports DS-PAN-1011, DS-PAN-1011-2, DS-PAN-1012, DS-PAN-1012-2 External Antenna Switch Power Input Ethernet USB 3.0 (x2) HDMI Serial RJ45 DISABLED / ENABLED DC IN 16V Antenna Connection (TNC) Optional Part IDs: DS-PAN-1011-2, DS-PAN-1012-2 ANT. B ANT. A... - Page 7 Port Replication Capability Forward Facing Ports DS-PAN-1014, DS-PAN-1014-2, DS-PAN-1015, DS-PAN-1015-2 External Antenna Switch Power Input Ethernet USB 3.0 (x2) Serial RJ45 DISABLED / ENABLED DC IN 16V Antenna Connection (TNC) Optional Part IDs: DS-PAN-1014-2, DS-PAN-1015-2 ANT. B ANT. A...
-
Page 8: Installation & Cable Management
1) Remove the Mounting Bracket from the packaging. Install the Mounting Bracket to the Motion Device using (4) 1/4“-20 x 5/8” long screws (Hardware Kit Item 3). Torque screws to 80 in-lbs (9.0Nm) ± 10%. NOTE: Numerous hole patterns present in Mounting Bracket will accommodate Havis Motion Devices as well as most competitors’. - Page 9 Installation & Cable Management (continued) 4) Lower the Docking Station to the Mounting Bracket as shown and secure with (4) 1/4” -20 x 3/8” long screws (Hardware Kit Item 4). Ensure cable bundle remains in Cable Channel before securing. Torque screws to 80-in (9.0 Nm) ± 10%. 1/4”...
-
Page 10: Operation - Docking
Operation - Docking DO NOT FORCE COMPUTER ONTO DOCKING STATION. IF THERE IS RESISTANCE, CHECK ALIGNMENT OF COMPUTER ON DOCKING STATION. NE PAS FORCER L'ORDINATEUR PORTABLE SUR LA STATION D'ACCUEIL. S'IL Y A DE LA RÉSISTANCE, VÉRIFIER L'ALIGNEMENT DE L'ORDINATEUR PORTABLE SUR LA STATION D'ACCUEIL. - Page 11 Operation - Docking (continued) 3) With rear of computer elevated, load front of computer into Docking Station ensuring the computer’s front hook pockets align with the Front Hooks of the Docking Station as shown. Front View 4) Lower rear of computer onto Docking Station, ensuring computer properly aligns with the Locator Pins on the Docking Station.
-
Page 12: Operation - Undocking
Operation - Docking (continued) 5) For theft deterrence, secure computer by locking Docking Station with supplied key (Hardware Kit item 2). Operation - Undocking 1) If previously locked, unlock Docking Station using supplied key. - Page 13 Operation - Undocking 2) Unlatch computer from Docking Station by, pushing down on Release Handle, then pushing in until Rear Hooks unlatch and a click can be heard. Rear Hooks will remain unlatched and G2 COMPUTER will elevate slightly from Docking Station. 3) Once unlatched grab COMPUTER from carry handle or each side and carefully lift out of Docking Station, rear first.
-
Page 14: Related Products
Related Products Havis offers a wide variety of accessory products specifically for use with your Docking Station. For more information or to order, please visit www.havis.com. LPS-102 90W Power Supply External in-vehicle power supply and cable for Panasonic TOUGHBOOK G2 with cigarette lighter adaptor.
