For Windows 95

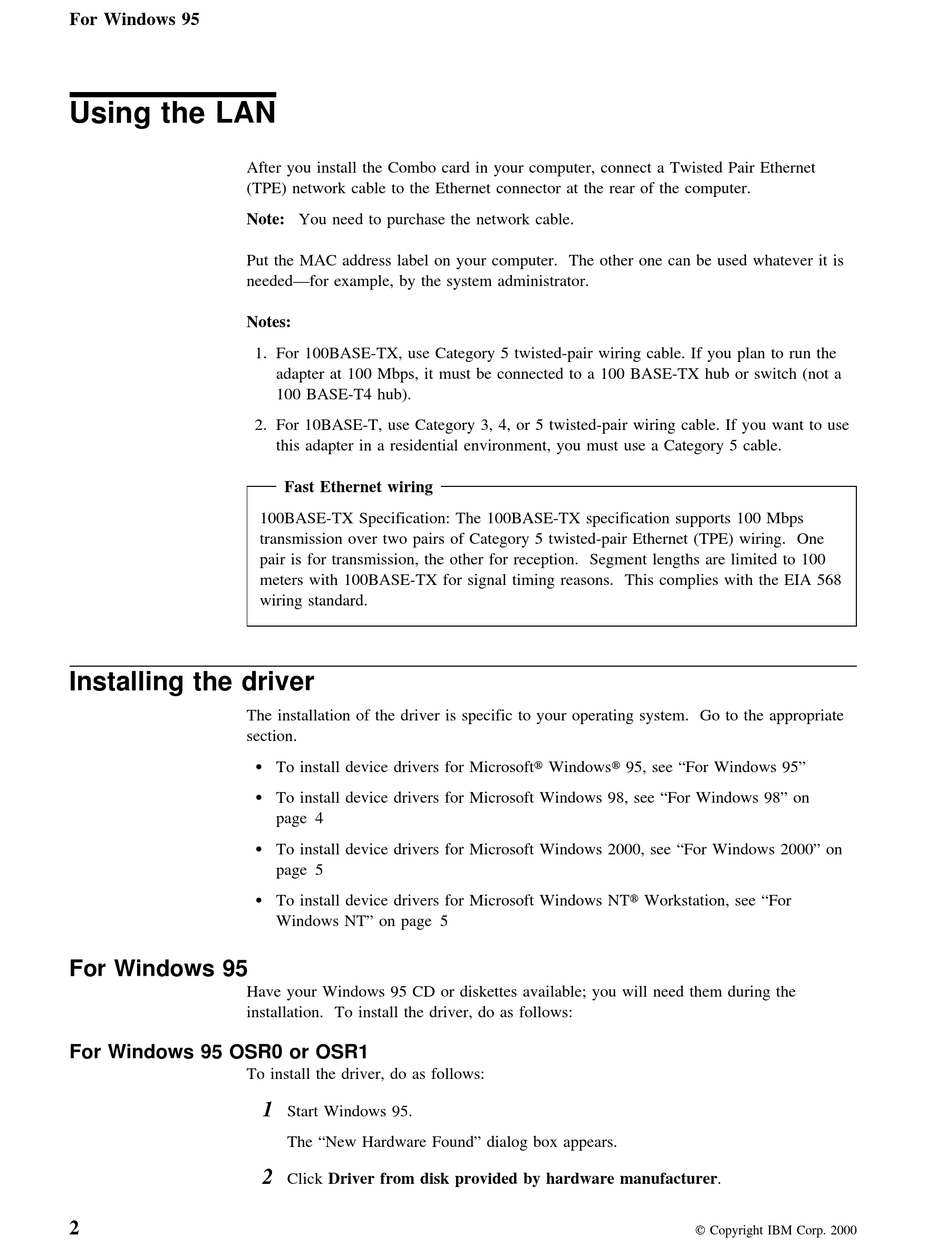

Using the LAN

After you install the Combo card in your computer, connect a Twisted Pair Ethernet
(TPE) network cable to the Ethernet connector at the rear of the computer.
Note: You need to purchase the network cable.
Put the MAC address label on your computer. The other one can be used whatever it is
needed—for example, by the system administrator.
Notes:

Installing the driver

The installation of the driver is specific to your operating system. Go to the appropriate
section.
For Windows 95
Have your Windows 95 CD or diskettes available; you will need them during the
installation. To install the driver, do as follows:
For Windows 95 OSR0 or OSR1
To install the driver, do as follows:
2
1. For 100BASE-TX, use Category 5 twisted-pair wiring cable. If you plan to run the
adapter at 100 Mbps, it must be connected to a 100 BASE-TX hub or switch (not a
100 BASE-T4 hub).
2. For 10BASE-T, use Category 3, 4, or 5 twisted-pair wiring cable. If you want to use
this adapter in a residential environment, you must use a Category 5 cable.
Fast Ethernet wiring
100BASE-TX Specification: The 100BASE-TX specification supports 100 Mbps
transmission over two pairs of Category 5 twisted-pair Ethernet (TPE) wiring. One
pair is for transmission, the other for reception. Segment lengths are limited to 100
meters with 100BASE-TX for signal timing reasons. This complies with the EIA 568
wiring standard.
To install device drivers for Microsoft
To install device drivers for Microsoft Windows 98, see "For Windows 98" on
page 4
To install device drivers for Microsoft Windows 2000, see "For Windows 2000" on
page 5
To install device drivers for Microsoft Windows NT
Windows NT" on page 5
1
Start Windows 95.
The "New Hardware Found" dialog box appears.
2
Click Driver from disk provided by hardware manufacturer.
Windows
95, see "For Windows 95"
Workstation, see "For
 Copyright IBM Corp. 2000
