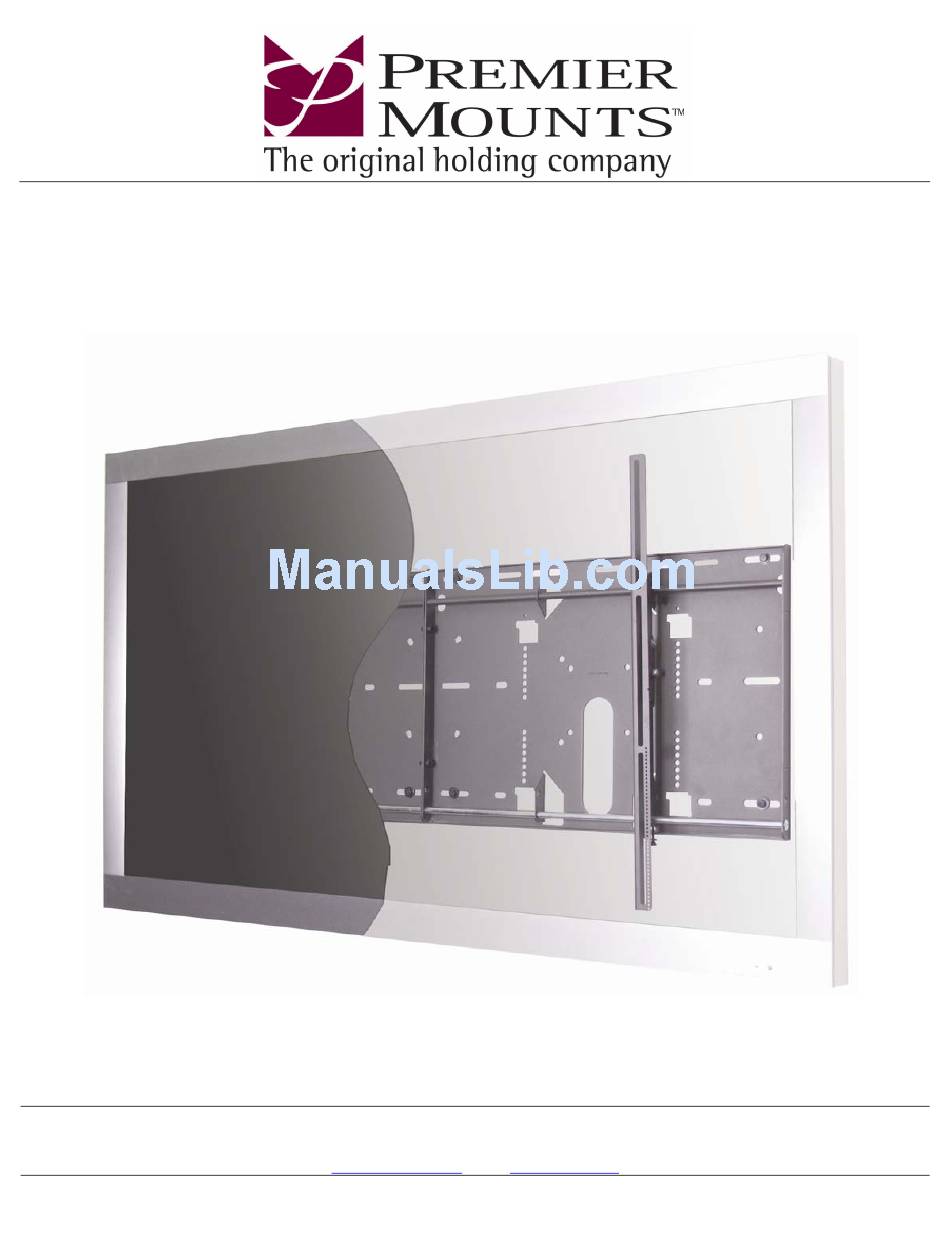

Page 1: Installation Manual
INSTALLATION MANUAL CTM-MS4 Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com 9531-000-331-06... -
Page 2: Table Of Contents
Installation Tools ..............................- 4 - Mounting Bracket Installation ........................- 8 - CTM-MS4 Installation ..........................- 11 - Installing the Flat Panel Display (CTM-MS4) ....................- 14 - Technical Specifications ..........................- 17 - Warranty ................................- 18 - Contact Premier Mounts ..........................- 18 - Notes ................................- 18 -... -
Page 3: Warning Statements
WARNING: PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY... -
Page 4: Parts List
CTM-MS4 Parts List NOTE: This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop installation... - Page 5 CTM-MS4 M5 x 25 (Qty 8) M6 x 35 (Qty 8) M5 x 30 (Qty 8) M8 x 20 (Qty 8) M6 x 20 (Qty 8) M8 x 25 (Qty 8) M6 x 25 (Qty 8) M8 x 30 (Qty 8)
- Page 6 CTM-MS4 How to Determine the Correct Spacer 1. The following illustration shows a display mounting surface that will not need the use of a spacer. 2. The illustration shows a display mounting surface that will need a spacer to correctly install the mounting plate.
- Page 7 CTM-MS4 Thread Depth Indicator Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it (Figure 1). Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
-
Page 8: Mounting Bracket Installation
CTM-MS4 Mounting Bracket Installation NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. WARNING: INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL. - Page 9 CTM-MS4 Install the nylon spacers (if needed) to the mounting points on the flat panel (Figure 6). Lay the mounting brackets (stamped arrows facing out) - (Figure 7). Nylon Spacers, If Applicable Bottom of Flat Panel Notched Cut Outs Center Mark...
- Page 10 CTM-MS4 Mounting Bracket Notched Cut Out Figure 8 Bottom of the Flat Panel Figure 9 The Griplate™ has M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires. EXAMPLE: If your plasma uses M8 x 20 Phillip screws, use the M8 mounting points (Figure 10).
-
Page 11: Ctm-Ms4 Installation
CTM-MS4 CTM-MS4 Installation Using a (commercially available) wood stud finder, locate the 16" or 24" stud centers behind the wall (Figure 12). Once found, make a pencil marking on the center of the wood studs (Figure 13). Place the wall plate to the reference line and mark the lag bolt mounting points through the wall plate slots on the wall (see NOTE below). - Page 12 CTM-MS4 To connect the two wall plates, lie them on a flat surface, end to end. Make sure that the holes line up (Figure 14). Insert the hex head bolts through the two holes and secure with M8 Hex nuts (Figure 14).
- Page 13 CTM-MS4 Level the wall plate with the reference arrow pointing up to the ceiling (Figure 15). Drill ¼" pilot holes to the marked wall. Secure the plate using the 5/16" lag bolts and flat washers (Figure 16). Mark the mounting slot openings 16"...
-
Page 14: Installing The Flat Panel Display (Ctm-Ms4)
CTM-MS4 Installing the Flat Panel Display (CTM-MS4) WARNING: AT LEAST TWO QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Raise the flat panel with the mounting brackets secured to the flat panel and insert the top hooks over the upper rod. - Page 15 CTM-MS4 Make any lateral shift adjustment and lock it by tightening the screws found on the bottom of the mounting brackets. CAUTION: Do not over tighten the screws to the rods (Figure 18). NOTE: To remove the display from the wall simply loosen the screws using a Phillips screwdriver and lift the unit of the wall carefully.
- Page 16 CTM-MS4 Tilt the flat panel and secure the safety knobs to each of the mounting brackets (Figure 19). NOTE: To remove the display from the wall simply extend the display to its maximum tilt range, remove the safety knobs, push the flat panel back to it’s flat position, loosen or remove the lateral shift screws and lift the unit off the wall.
-
Page 17: Technical Specifications
CTM-MS4 Technical Specifications Figure 20 Installation Manual Page 17... -
Page 18: Warranty
Warranty Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury.
