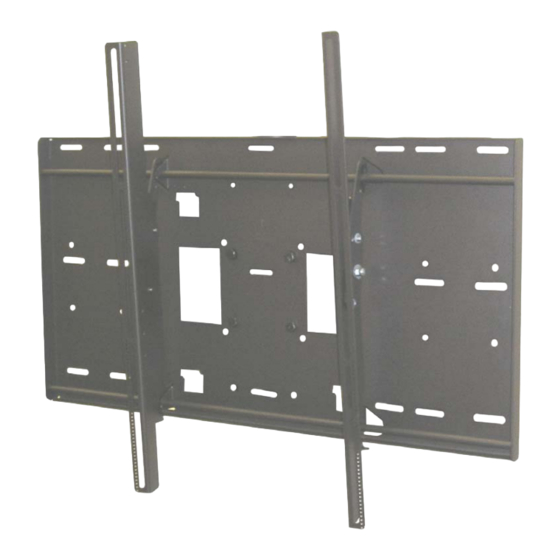

- Page 1 INSTALLATION MANUAL CTM-MS3-1 Premier Mounts 3130 E. Miraloma Avenue Anaheim, CA 92806 Phone: (800) 368-9700 Fax: (800) 832-4888 mounts@mounts.com www.mounts.com Rev. 01...
- Page 2 PBL-110 Projector Mount Page 2 Installation Manual...
-
Page 3: Table Of Contents
Parts List ................................5 Installation Tools ..............................5 Mounting Bracket Installation ..........................9 CTM-MS3-1 Installation ............................. 12 Installing the Flat Panel Display (CTM-MS3-1) ....................14 Technical Specifications ............................17 Warranty ................................18 Contact Premier Mounts ............................18 Notes ..................................19... -
Page 4: Warning Statements
CTM-MS3-1 Warning Statements THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING 210 LBS. IF NOT, THE WALL WARNING: STRUCTURE MUST BE REINFORCED. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL INJURY, OR EVEN DEATH. -
Page 5: Parts List
This wall mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). - Page 6 CTM-MS3-1 M5 x 25 (Qty 8) M8 x 20 (Qty 8) M5 x 30 (Qty 8) M8 x 25 (Qty 8) M6 x 20 (Qty 8) M8 x 30 (Qty 8) M6 x 25 (Qty 8) M8 x 35 (Qty 8)
- Page 7 CTM-MS3-1 Nylon spacers and flat washers actual size NOTE: The nylon spacers may be staked to achieve proper spacing. ¼” Nylon 9/16” Nylon Sleeves (Large, Spacers (Qty 8) Qty 8) ½” Nylon Nylon Sleeves Sleeves (Large, (Qty 8) Qty 8) 5/16”...
- Page 8 CTM-MS3-1 Thread Depth Indicator Insert the thread depth indicator (supplied) through the thread inserts found on the back of the flat panel to make sure the inserts measure the same full depth and mark it (Figure 1). Locate the correct diameter screw for the thread insert. Compare your marking to the screws (supplied).
-
Page 9: Mounting Bracket Installation
CTM-MS3-1 Mounting Bracket Installation NOTE: Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the flat panel. WARNING: INVERT THE FLAT PANEL PLACE IT ON A SOFT, FLAT SUFRACE TO PREVENT DAMAGE TO THE FLAT PANEL. - Page 10 CTM-MS3-1 Install the nylon spacers (if needed) to the mounting points on the flat panel (Figure 6). Lay the left and right mounting brackets (stamped arrows facing out) - (Figure 7). Nylon Spacers, If Applicable Mounting Brackets Center Mark Inverted Flat Panel...
- Page 11 CTM-MS3-1 Mounting Bracket Bottom of Flat Panel Center of Viewing Guide Center of Flat Bottom of the Align the Mounting Panel Flat Panel Brackets Figure 8 Figure 9 The Griplates™ have M4, M5 M6 and M8 hole patterns to fit the hardware that your flat panel requires.
-
Page 12: Ctm-Ms3-1 Installation
CTM-MS3-1 CTM-MS3-1 Installation Using a (commercially available) wood stud finder, locate the 16" or 24" stud centers behind the wall (Figure 12). Once found, make a pencil marking on the center of the wood studs (Figure 13). NOTE: The wall plates have 16" and 24" mounting slot positions. - Page 13 CTM-MS3-1 Level the wall plate with the reference arrow pointing up to the ceiling (Figure 13). Drill nine (9) ¼" pilot holes to the marked wall. Secure the plate using the nine (9) 5/16" lag bolts and flat washers (Figure 14).
-
Page 14: Installing The Flat Panel Display (Ctm-Ms3-1)
CTM-MS3-1 Installing the Flat Panel Display (CTM-MS3-1) WARNING: AT LEAST (2) QUALIFIED PERSONNEL ARE STRONGLY RECOMMENDED FOR INSTALLATION OF THIS PRODUCT. FAILURE TO DO SO COULD RESULT IN SERIOUS INJURY AND POSSIBLE DAMAGE TO THE FLAT PANEL. Raise the flat panel with the LEFT and RIGHT mounting brackets secured to the flat panel and insert the top hooks over the upper rod. - Page 15 CTM-MS3-1 Make any lateral shift adjustment and lock it by tightening the two (2) M6 x 30mm Phillips screws found on the bottom of the mounting brackets. Use the foot leveler to adjust your plasma. CAUTION: Do not over tighten the M6 x 30mm screws to the rods (Figure 16).
- Page 16 CTM-MS3-1 Tilt the flat panel and secure the two (2) M6 x 12mm safety knobs to each of the mounting brackets (Figure 17). NOTE: To remove the display from the wall simply extend the display to its maximum tilt range, remove the two 6 (mm) safety knurl knobs push the flat panel back to it’s flat position, loosen or remove...
-
Page 17: Technical Specifications
CTM-MS3-1 Technical Specifications Figure 18 Installation Manual Page 17... -
Page 18: Warranty
Warranty Limited Lifetime Warranty All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts, adapters, display equipment or personal injury. -
Page 19: Notes
Shilton, Coventry, England CV79JY Gunma-ken 370-3524, Japan Phone: 800-368-9700 Phone: +44 (0) 2476 614700 Phone: 81.27.371.6998 Fax: 800-832-4888 Fax: +44 (0) 2476 614710 Fax: 81.27.371.6308 Other Locations – Phone: 001.714.632.7100; Fax: 001.714.632.1044 ©Premier Mounts 2005 Rev. 01 Installation Manual Page 19...
