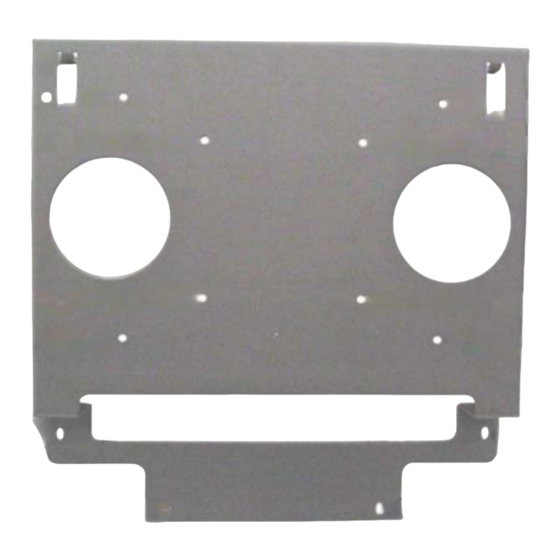

CTM-330

Mounting

Bracket
(1ea).
1. Attach the CTM-330 to the display mount that was purchased (refer to mount installation instructions),
using the four (4) M4 x 10mm Phillips head screws.
2. Locate the four (4) mounting points that are found on the lower back of the flat panel display (Figure 1).
3. Familiarize yourself with the various mounting locations on the CTM-330 (Figure 2).
4. Hang the display on the mount. Be sure that the two upper tabs on the CTM-330 are inserted into the
two upper "keyhole" mounting points of the display (Figure 3)
5. Use the four (4) M4 x 16mm Phillips head screws to secure the CTM-330 to the lower flat panel
mounting points. Do not tighten until all screws are attached.
6. Do not tighten until the final adjustments are made. Do not overtighten the screws.
"Keyhole" Mounting
hole. Place upper tab
of the CTM-330
.
Mount in this hole
1
2
Installation Instructions
CTM-330 INSTALLATION INSTRUCTIONS
M4 x 10mm
Phillips Head
Screw (4)

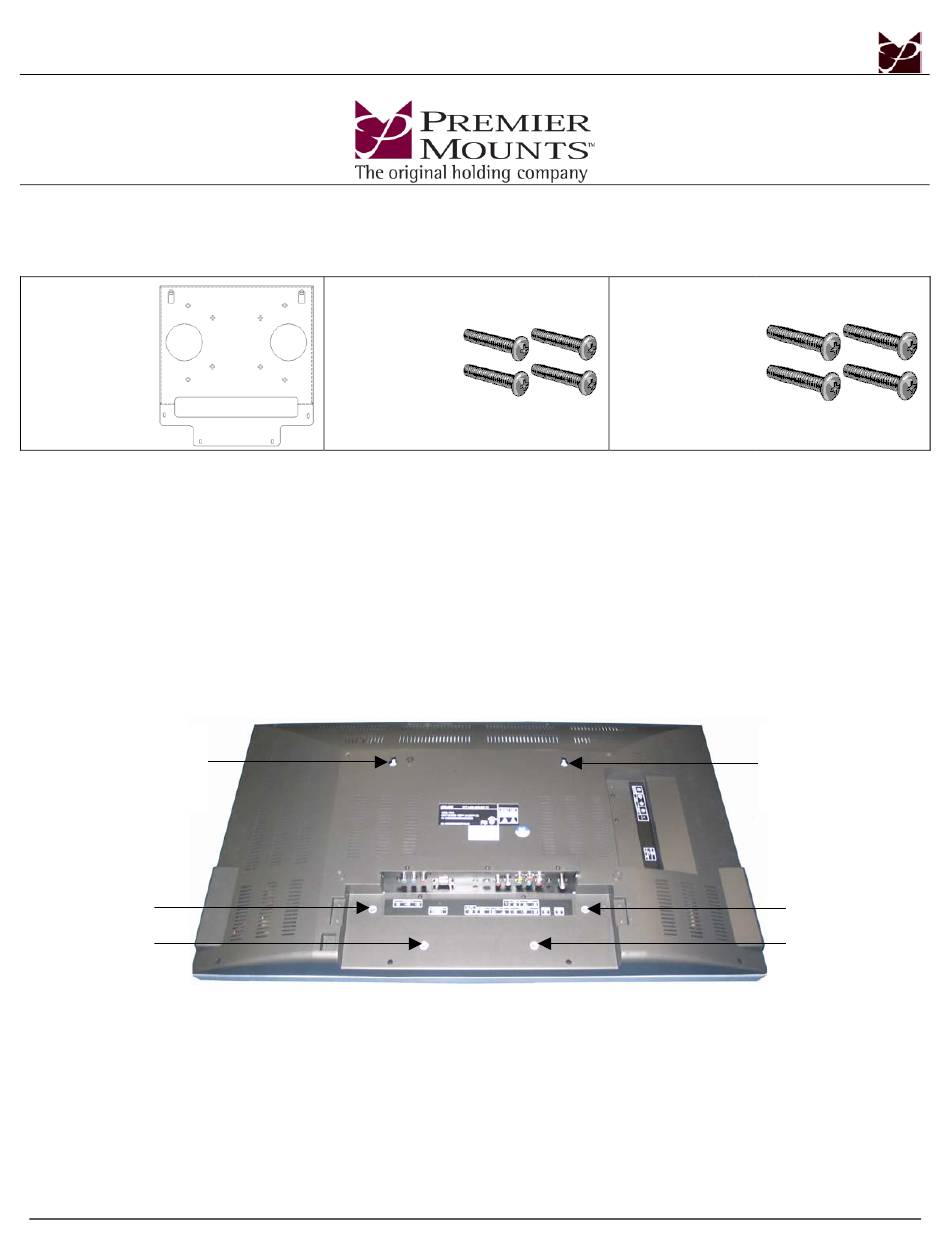

Figure 1. Flat Panel Display
M4 x 16mm
Phillips Head
Screw (4)
"Keyhole" Mounting
Hole. Place upper tab
of the CTM-330
Mount in this hole
.
3
4
Page 1
