INSTALL INSTRUCTIONS P-MID-1 w/P-MFK-5
MIDDLE PARTITION w/MOUNTING FILLER PANEL KIT
1997-2008 CHEVROLET/GMC FULL SIZE PASSENGER VANS

TOOLS REQUIRED:

Power drill
Drill bit set

HARDWARE:

QTY DESCRIPTION
5
¼" x 1 ½" Hex head Lag Bolt
6
¼" x 1" Hex head Lag Bolt
20
¼-20 x ¾" Carriage Bolt
12
¼-20 Serrated Nut
8
¼-20 Nylock Nut
1
5/16-18 Nylock Nut
1
5/16-18 x 2" Hex Head Bolt
2
5/16 Flat Washer
8
¼" x 1" Fender Washer

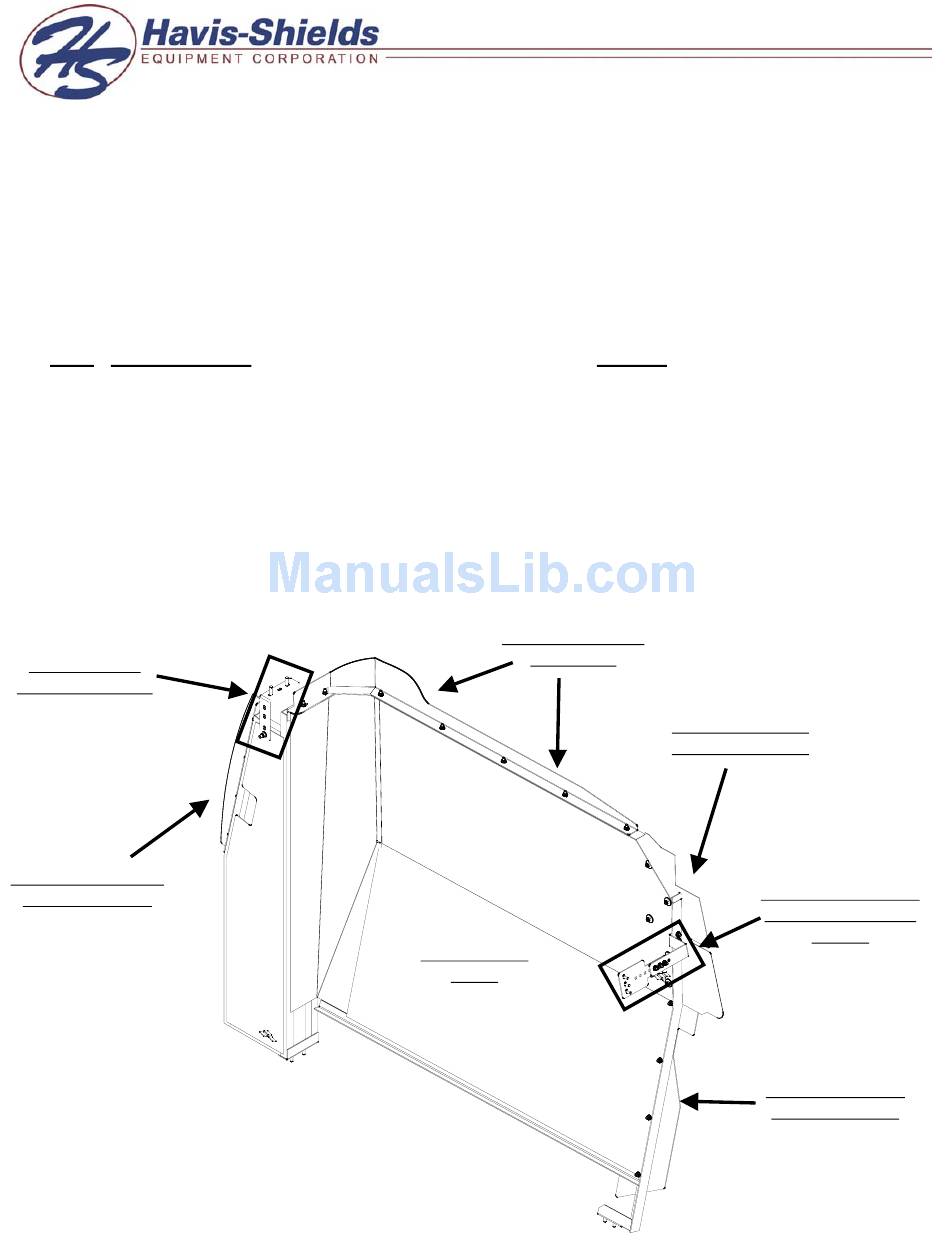

Passenger Side
Mounting Bracket
Passenger Side Steel
Door Filler Panel
Ratcheting wrench
Standard & Metric socket set
PART #
GSM33062
GSM33060
GSM32000
GSM30023
GSM30016
GSM30017
GSM33015
GSM31006
GSM31014
Upper Center Steel
Filler Panel
Main Partition
Frame
Driver Side Upper
Lexan Filler Panel
(2-Piece) Driver Side
"B" Pillar Mounting
Bracket
Driver Side Lower
Steel Filler Panel

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P-MFK-5 and is the answer not in the manual?

Questions and answers

Related Manuals for Havis-Shields P-MFK-5

Summary of Contents for Havis-Shields P-MFK-5

  • Page 1 INSTALL INSTRUCTIONS P-MID-1 w/P-MFK-5 MIDDLE PARTITION w/MOUNTING FILLER PANEL KIT 1997-2008 CHEVROLET/GMC FULL SIZE PASSENGER VANS TOOLS REQUIRED: Power drill Drill bit set HARDWARE: QTY DESCRIPTION ¼” x 1 ½” Hex head Lag Bolt ¼” x 1” Hex head Lag Bolt ¼-20 x ¾”...
  • Page 2 2. Position upper center filler to partition and mark mounting holes. 3. Drill 5/16” holes on marks. Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
  • Page 3 serrated nuts. • Press partition as far forward and mark mounting holes where driver side mounting bracket and “C-pillar” come in contact. • Pre-drill 3/16” holes into “C-pillar”. • Attach bracket to C-pillar using (3) ¼” x 1” Hex head lag bolts. •...
  • Page 4 5. ATTACH DRIVER SIDE UPPER LEXAN FILLER PANEL: • Position driver side ¼” lexan filler panel to partition so that minimal space is between the vehicles window, (or window guard) and the lexan filler. NOTE: It is necessary to keep a 1/8” gap between the window or guard and the filler to allow for expansion and contraction of the lexan during temperature fluctuations.
