INSTALL INSTRUCTIONS C-TCB-9
TOOLS REQUIRED:
3/16" Allen wrench
3/8" Standard socket set
3/8" Metric socket set
HARDWARE & COMPONENTS:
QTY DESCRIPTION
1
Pole support assembly
1
Telescoping pole assembly
1
Side support brace
1
5/16" Flat washer
1
5/16-18 Nylock nut
2
¼" x ¾"Hex head lag bolt
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit

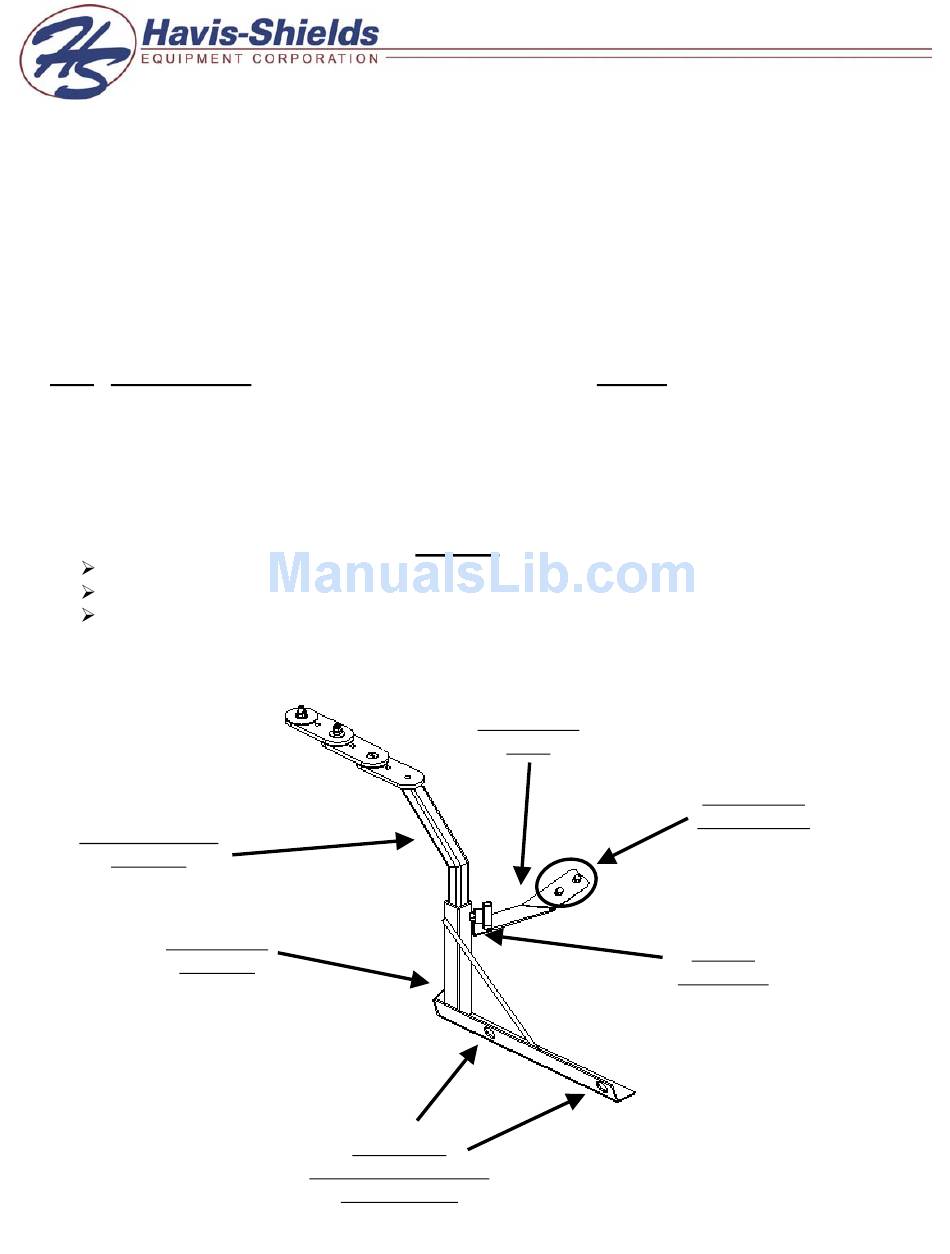

Telescoping pole
assembly
Pole support
assembly
1989-2001 JEEP CHEROKEE
Always
Location of
passenger side factory
seat base bolts
Ratcheting wrench (3/8" drive)
Powered drill w/ 3/16" drill bit
Open-end wrench set
PART #
CM93071-9
CM93072-3
CM93146
GSM31006
GSM30017
GSM33060-1
!
Side support
brace
¼" x ¾"Hex
head lag bolts
5/16-18
Nylock nut
