Havis-Shields Ford Crown Victoria C-3190-F Installation Instructions

INSTALL INSTRUCTIONS C-3190-F

TOOLS REQUIRED:

7/16" wrench and socket

HARDWARE:

QTY DESCRIPTION
8 ¼-20 x 1" Hex Head Cap Screw
12 ¼" Flat Washer
12 ¼-20 Hex Head Flange Nut
8 ¼-20 x ½" Hex Head Cap Screw
4 3/8-16 Hex Nut
1 12" – ¼" Loom

Step 1.

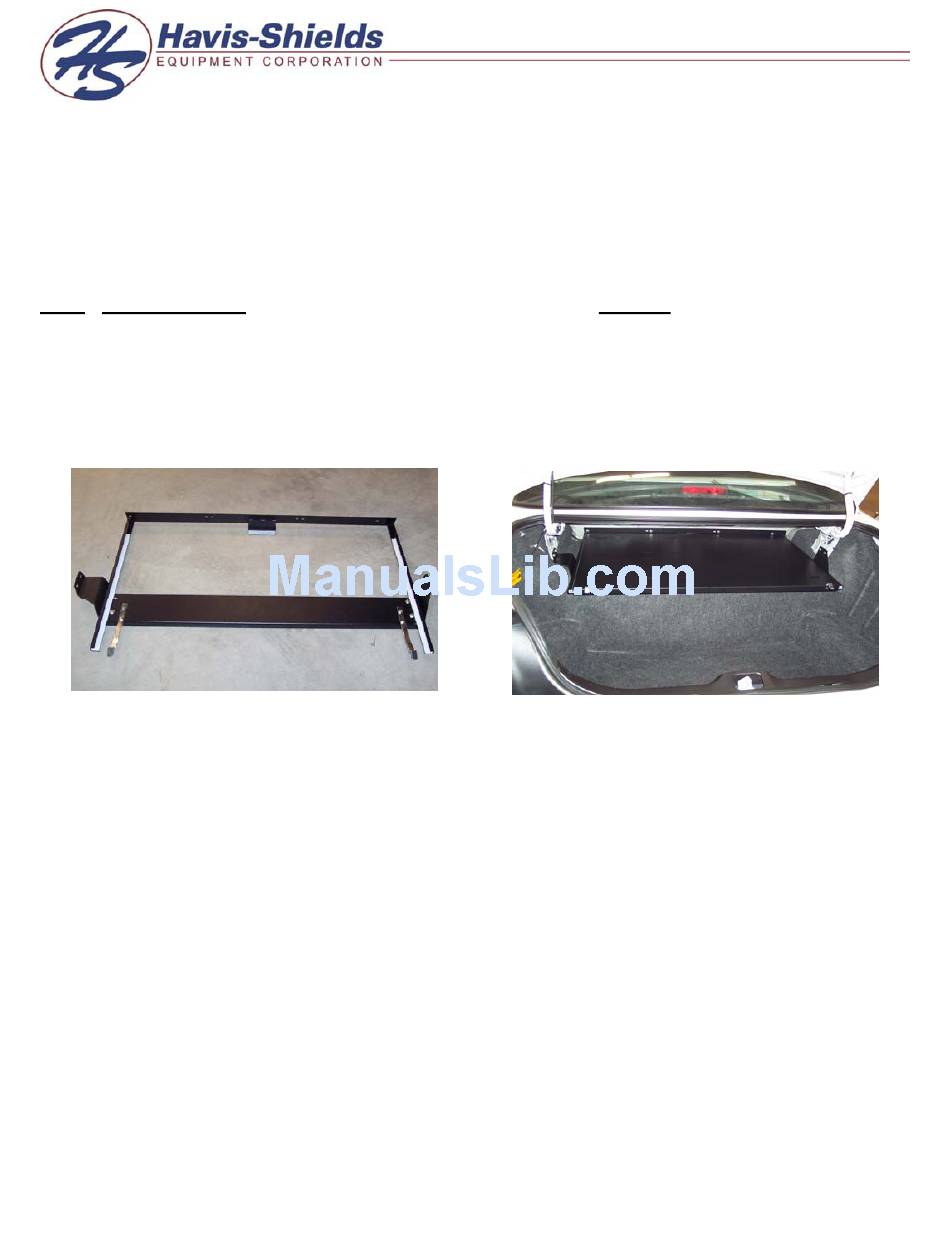

Slide Tray out of housing.

Step 2.

Place left and right support arms in place and fasten down with (4) ¼-20 x ½" hex head
cap screws and (4) ¼" flat washers.

Step 3.

Place lock arms in place with (4) ¼-20 x ½" hex head cap screws and (4) ¼" flange nuts.
Note: Do not tighten down lock arms at this time. Place ¼-20 x ½" hex head cap
screws from bottom to top on lock arms.

Step 4.

Slide tray back into housing. Adjust lock arms then tighten from bottom.

Step 5.

Place radio tray on back shelf in trunk. Align rear support bracket with existing holes in
trunk using (4) ¼-20 x 1" hex head screws, (4) ¼" flat washers, (4) ¼" flange nuts and
(4) 3/8-16 hex nut spacers.
Note: On 2005 and newer models, Hex Nut spacers must be installed between rear support bracket and OEM
sheet metal. This will space tray off seat wall so not to crush fuel pump harness. Loom is provided to cover
harness for extra protection.

Step 6.

Drill ¼" hole into trunk hinge, support base on drivers and passenger side and fasten
down shelf by using (4) ¼-20 x 1" hex head cap screw, (4) ¼" flat washer and (4) ¼ x
flange nut.
1996-2007 FORD CROWN VICTORIA
Power Drill and ¼" drill bit
PART #
GSM33002
GSM31005
GSM30023
GSM33000
GSM30008
PRM97913
C-3190-F-INST-10-06
