Havis-Shields C-VS-800-CV Install Instructions

Havis-shields vehicle specific console & radio/hvac relocation housing 1997-1998 ford crown victoria install instructions

Download this manual

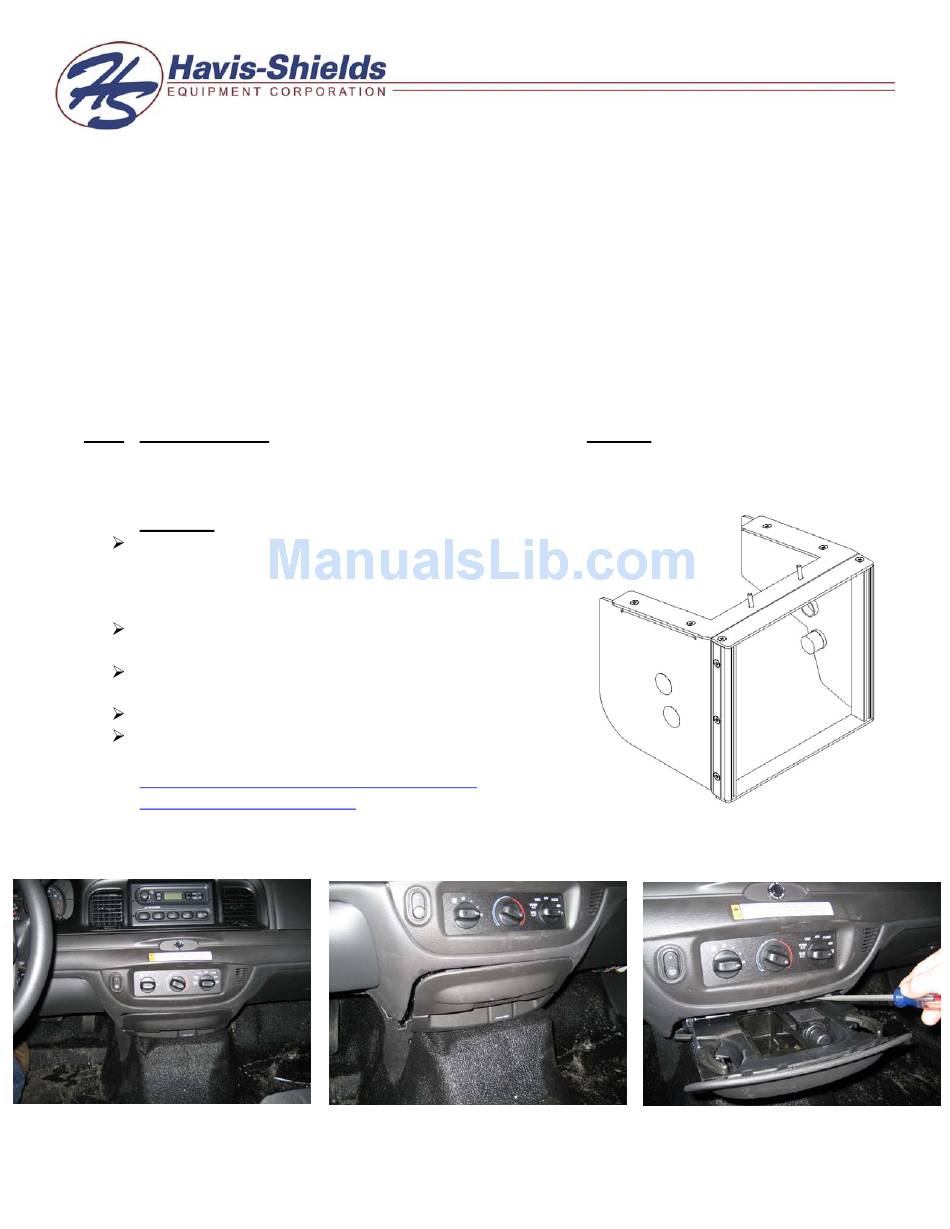

INSTALL INSTRUCTIONS C-VS-800-CV

TOOLS REQUIRED:

Ratcheting wrench

Standard/Metric socket set

Screwdriver set

HARDWARE:

QTY DESCRIPTION

#10 x ¾" Phillips sheet metal screws

Torx Screw Kit

Always!

Disconnect the vehicles' battery. Removing seat bolts on

some vehicles may give the vehicles computer a false

reading resulting in warning lights. This requires the

vehicles' computer to be reset.

Read all instructions before installing any Havis-Shields

Equipment Corp products.

Check for obstructions (Wire, brake lines, fuel tank, etc.)

before drilling any holes!

Use hardware provided with install kit.

For product support, visit the Install Instructions Section

of our website at

http://havis.com/Installation/Installation.html, email

technicalsupport@havis.com

Ford Crown Victoria dashboard

VEHICLE SPECIFIC CONSOLE &

RADIO/HVAC RELOCATION HOUSING

1997-2008 FORD CROWN VICTORIA

or call 1-800-524-9900.

Remove ashtray and power point

Tin snips (if necessary)

Powered Drill w/ 5/16" drill bit

PART #

GSM33195

C-HK-1

housing from dash

A flat head screwdriver is needed to

release the tray from the slide tracks

Page 1 This requires the vehicles’ computer to be reset. Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit.
Page 2 With the tray removed, wire Unplug from the accessories. harnesses for the lighter outlet and ashtray light will need to be removed Remove the ashtray frame from the dashboard by removing the hex head screws located in the back of the frame. This is not necessary.
Page 3 Re-route HVAC controller and the AM/FM radio harness and antenna to the VS console Remove wire plug going to Ashtray/Power point frame assembly Re-install ashtray frame bracket Notch It is necessary to notch the OEM ashtray/power point frame assembly if relocating the HVAC controls to the VS console.
Page 4 Pre-drill OEM dash using holes in Holes are for screws to attach to the View of console from inside console as a drill template OEM dash Attach using #10 x ¾” sheet metal Final installation of console screws. Install components according to specific application Install HVAC controller into C- Install AM/FM radio if necessary, as...
