INSTALL INSTRUCTIONS C-TCB-26
TOOLS REQUIRED:
Torx Bit Set (T-55)
3/16" Allen wrench
3/8" Standard Socket Set
3/8" Metric Socket Set
HARDWARE:
QTY DESCRIPTION
1
Pole support assembly
1
Telescoping pole assembly
1
Side support brace
1
5/16" Nylock nut
2
5/16" Flat washer
1
5/16-18 x 1" Hex head bolt
2
¼" x ¾" Hex head lag bolt
Read all instructions before installing any Havis-Shields Equipment Corp products.
Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit

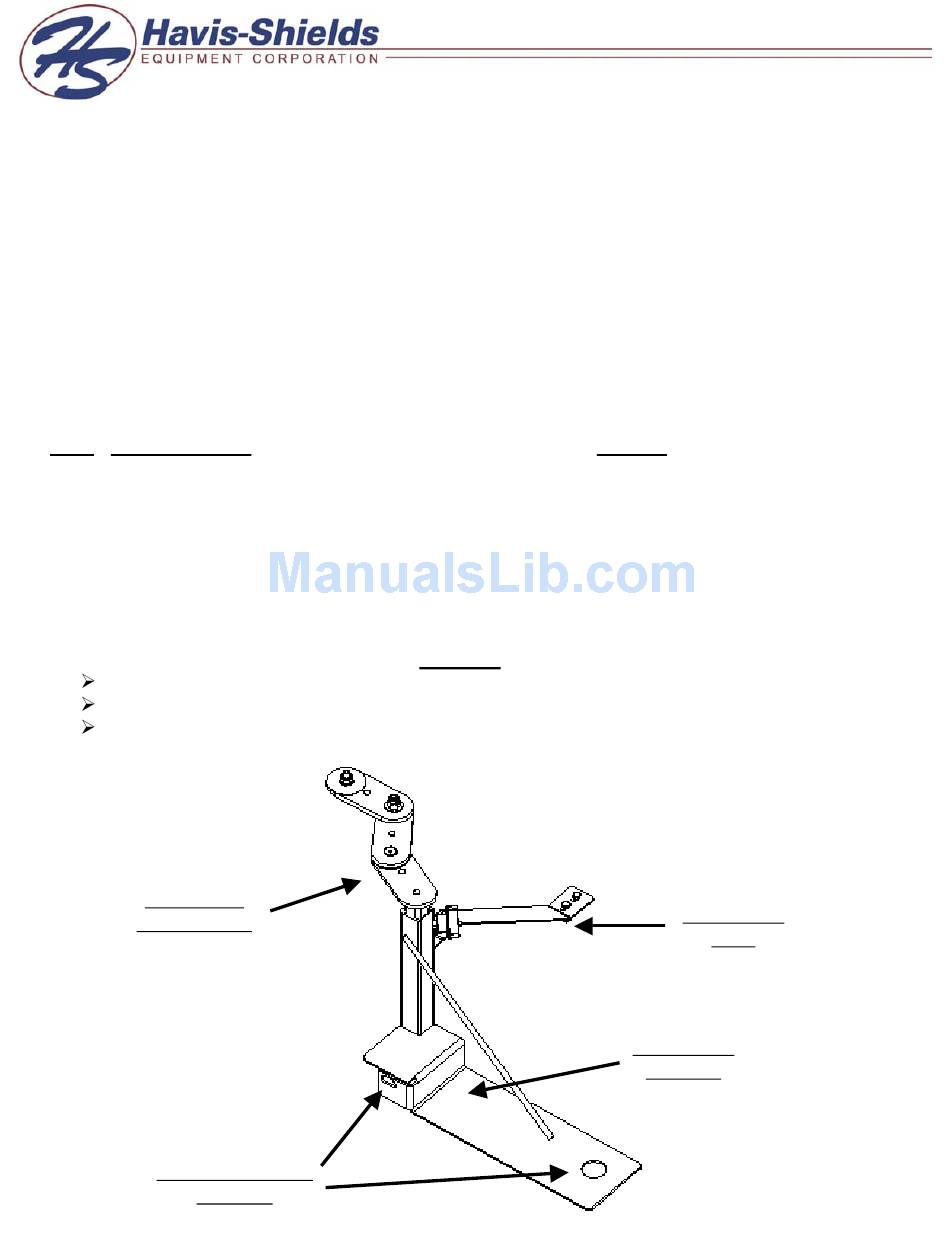

Telescoping
pole assembly
Location of factory
seat bolts
2002-2008 FORD EXPLORER
Always!
3/8" Ratcheting Wrench
Powered drill
3/16" & 5/16" Drill bits
Open-end wrench set
PART #
CM93071-26W
CM93072-1
CM93135
GSM30017
GSM31006
GSM33012
GSM33060-1
Side support
Pole support
assembly
brace
C-TCB-26_INST_9-07
Advertisement
Table of Contents
Related Manuals for Havis-Shields 2002-2008 Ford Explorer C-TCB-26
Summary of Contents for Havis-Shields 2002-2008 Ford Explorer C-TCB-26
- Page 1 5/16-18 x 1” Hex head bolt ¼” x ¾” Hex head lag bolt Read all instructions before installing any Havis-Shields Equipment Corp products. Check for obstructions (Wire, brake lines, fuel tank, etc.) before drilling any holes! Use hardware provided with install kit...
- Page 2 SUB ASSEMBLY: 1. Confirm receipt of all hardware and components. 2. Remove front inner and outer passenger seat bolts on vehicle. INSTALLATION: 1. MOUNT TELESCOPING COMPUTER BASE: • Position pole support assembly on top of passenger seat base mount and align holes in pole support assembly with holes in seat base.
