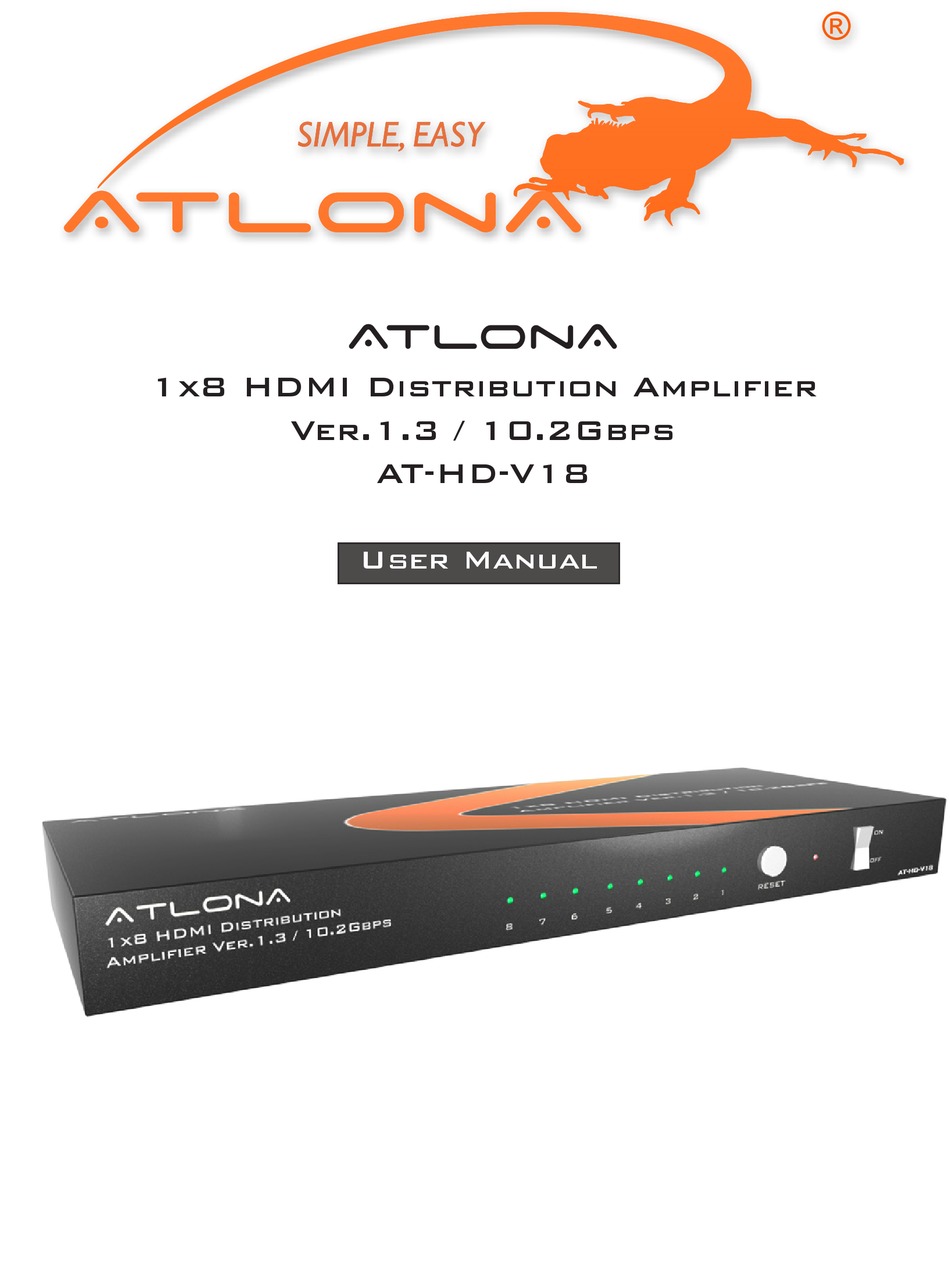

- Page 1 AtlonA 1x8 HDMI Distribution Amplifier Ver.1.3 / 10.2Gbps AT-HD-V18 User Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction ..........2. Features ..........3. Operation Controls and Functions ......3.1 Front Panel ..........3.2 Rear Panel ..........4. Connection and Installation ........5. Specifications ..........11. Safety ..........12. Warranty .......... -
Page 3: Introduction
Introduction The HDMI v1.3 Distribution Amplifier Series is the most advanced solution to HDMI signal distribution. Each product in this series is compatible to HDMI v1.3 specifications, a cutting-age technology which defines the support to transfer Deep Color (10-bit and 12-bit) video and new lossless compressed (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio) digital audio, with a high bandwidth up to 10.2Gbps. -
Page 4: Front Panel
Panel Descriptions Front Panel 1. Power Switch: Press the switch to power on the unit. 2. Power LED Indicator: The LED will illuminate when the power is connected. 3. Reset button 4. Output LED: When the HDMI display is connected to the output ports the corresponding LED will illuminate. -
Page 5: Connection And Installation
Connection and Installation LCD TV LCD TV LCD TV LCD TV LCD TV LCD TV LCD TV LCD TV Specifications Input port 1x HDMI female port (Type A connector) Output ports 8x HDMI female ports (signal link) Power Supply 5VDC/4.5A (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 275(W) x 155(D) x 25(H) Weight(g) -
Page 6: Safety
Use only accessories recommended by ATLONA to avoid fire, shock or other Do not modify the wall plug. hazards. Doing so will void the warranty and safety features. -
Page 7: Warranty
Product, or repair or replacement of the Product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of Customer’s receipt. This Limited Warranty is void if failure of the Product has resulted from accident, abuse, or misapplication.
