NetVanta 1131 RPS/EPS

NetVanta 1131 Front Panel Design

The NetVanta 1131 front panel is shown below.
POWER
EPS ALM
RPS ALM
FAN ALM
Front Panel Features
Power LED
The Power LED is located on the left side of the unit and indicates the unit's power status.
EPS Alarm LED
The EPS ALM LED is located on the left side of the unit and indicates whether the EPS is
functioning.
RPS Alarm LED
The RPS ALM LED is located on the left side of the unit and indicates whether the RPS is
functioning.
Fan Alarm LED
The FAN ALM LED is located on the left side of the unit and indicates the fan status.
EPS Connection LED
The EPS CONN LED is located on the left side of the unit and indicates status of the EPS connection.
RPS Connection LEDs
The CONN LEDs for RPS1, RPS2, and RPS3 are located on the left side of the unit and indicate
status of the RPS connections.
RPS Status LEDs
The STAT LEDs for RPS1, RPS2, and RPS3 are located on the left side of the unit and indicate status
of the RPS connections.

NetVanta 1131 Rear Panel Design

The NetVanta 1131 rear panel is shown below.
30
Table 3 on page 31
EPS CONN
CONN
RPS1
STAT
CONN
RPS2
STAT
CONN
RPS3
STAT

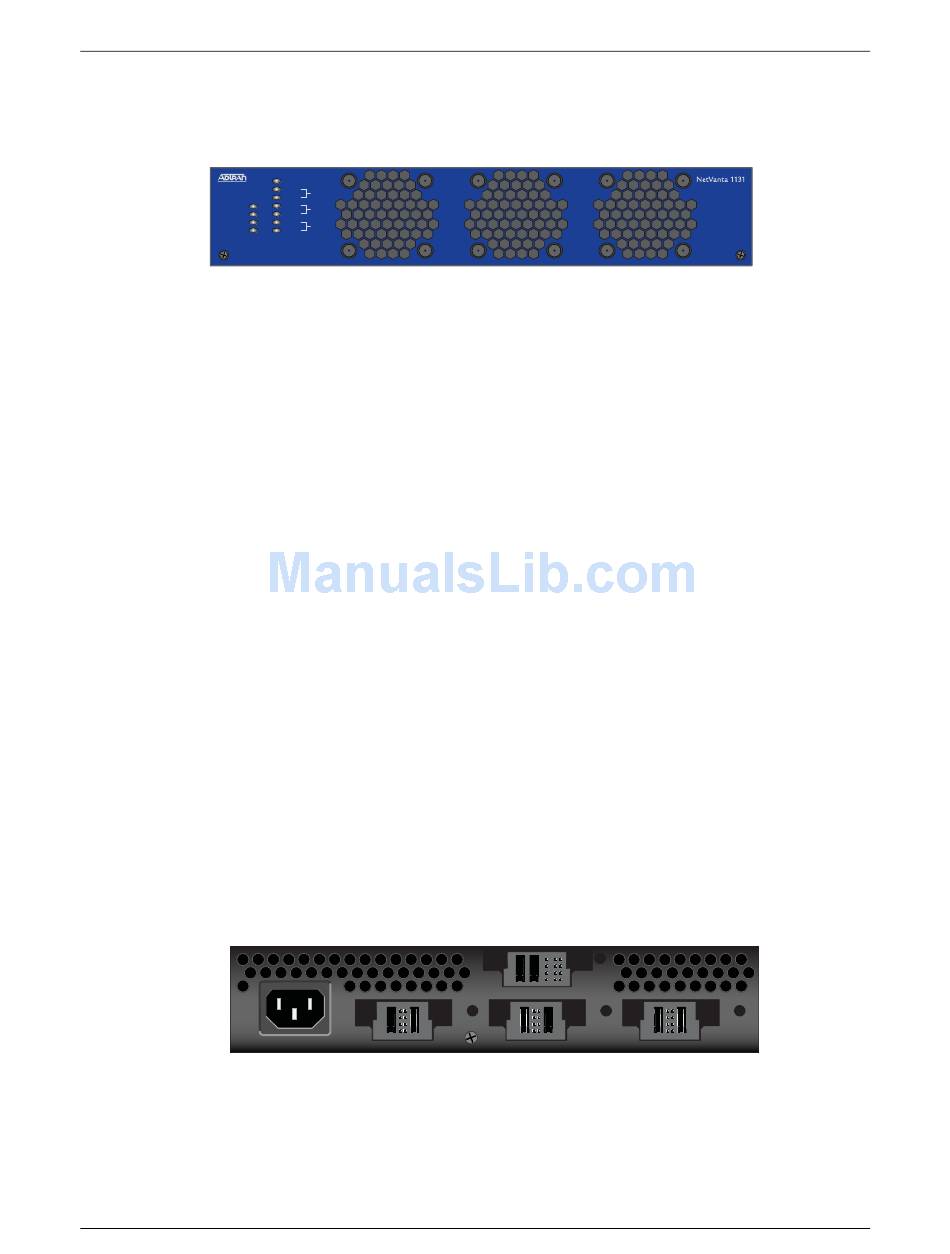

Figure 6. NetVanta 1131 Front Panel Layout

POWER
RPS1

Figure 7. NetVanta 1131 Rear Panel Layout

Copyright © 2013 ADTRAN, Inc.
NetVanta 1535P Hardware Installation Guide
describes all of the LED behaviors.
E
P
S
RPS2
RPS3
61702595G10-34C
