Westinghouse 930 Fully Integrated Care And Use Manual

Fully integrated
Hide thumbs

Advertisement

930 Fully Integrated
AUS
NZ
152989 56/0

Advertisement

loading

  Summary of Contents for Westinghouse 930 Fully Integrated

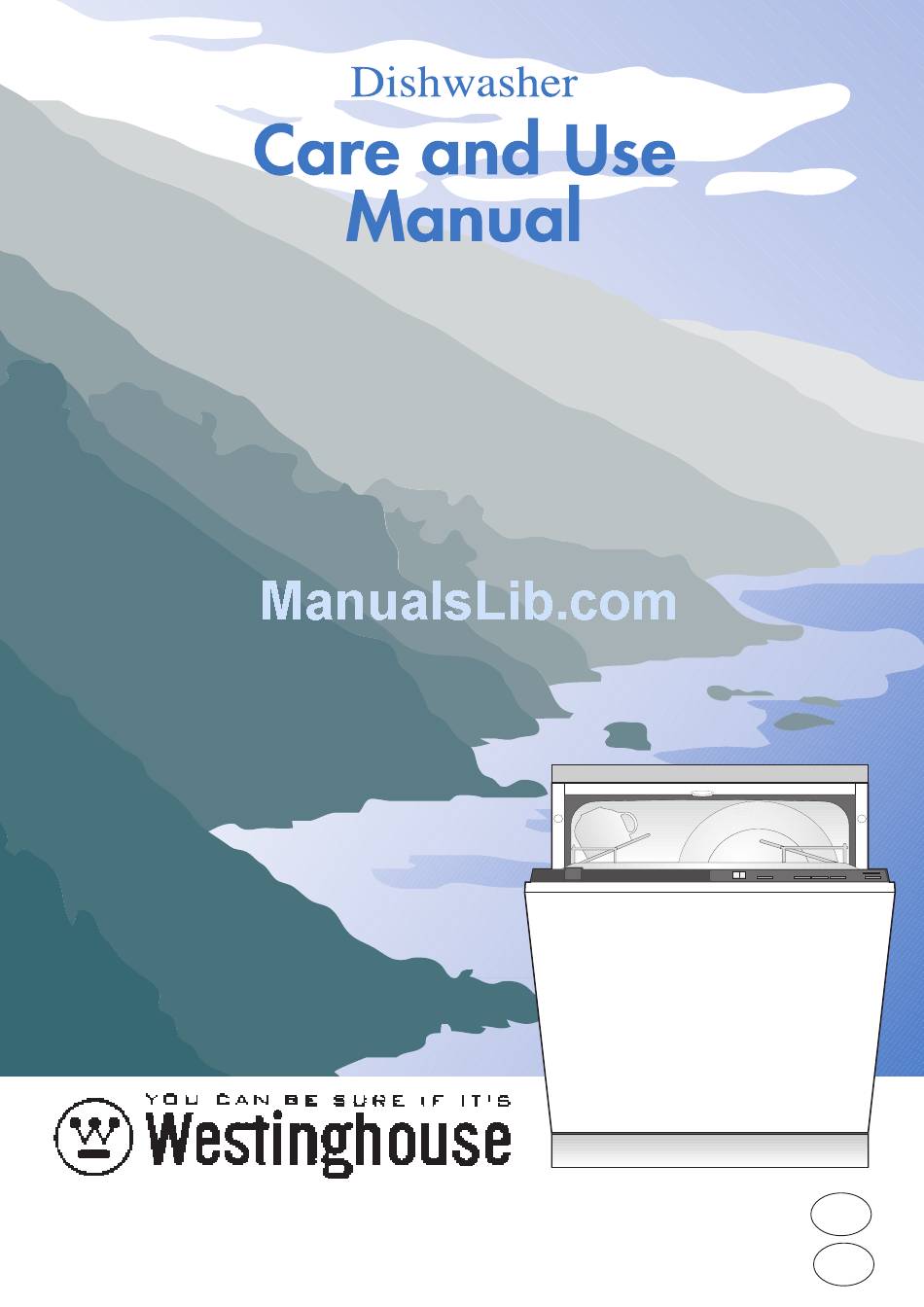

  • Page 1 930 Fully Integrated 152989 56/0...
  • Page 2 Introduction Before you use your dishwasher for the first time, check that the installer has: plugged in the power cord connected the hoses to the taps turned on the power tested the dishwasher Warnings Dishwasher detergents are alkaline and extremely dangerous if swallowed.
  • Page 3: Table Of Contents

    CONTENTS Warnings ...............page Installation .
  • Page 4: Warnings

    WARNINGS It is most important that this instruction book should be retained with the appliance for future reference. Should the appliance be sold or transferred to another owner, or should you move house and leave the appliance, always ensure that the book is left with the appliance in order that the new owner can get to know the functioning of the appliance and the relevant warnings.
  • Page 5: Installation

    INSTALLATION Remove all packaging before positioning the Note: (Only for water supply hoses with lock-fast machine. safety device to prevent inadvertent loosening). To detach the hose press yellow lever (C) and turn the Refer also to the separate assembly instructions nut anti-clockwise sheet.
  • Page 6: Water Outlet Connection

    Water outlet connection Electrical connection The end of the drain hose can be connected as Before plugging the appliance into the wall socket, follows: make sure that: - To the sink outlet siphon, securing it if necessary 1. the mains voltage corresponds to the voltage given with a clip;...
  • Page 7: Use

    Control panel THE CONTROLS 1. ON/OFF button The controls are located on top of the door. When selecting a programme, the door needs to be partially Press this button to preset the dishwasher to accept opened. settings (selection of wash programmes, drying options, delayed start, etc.).
  • Page 8: Delay Start Button

    5. Programme selector button 10. DELAY START button To select the required programme, press this button Note: DELAY START should be selected once until the number corresponding to the chosen programme and options have been selected. programme appears in the digital display (see The start of the programme can be delayed by a "Washing programmes"...
  • Page 9: The Water Softener

    The water softener Important Salt MUST be used regularly from level 1 upward. Water contains varying amounts of lime and mineral salts depending on the area in which you live: these If your water is "level 0" it is already soft and are deposited on the dishes leaving white marks.
  • Page 10: Use Of Rinse Aid, Use Of Detergent

    Rinse aid Unsuitable detergents (such as those for washing by hand) do not contain the right ingredients for machine The use of this liquid ensures thorough rinsing, spot washing and hamper correct functioning of the and streak free drying, making the water run quickly machine.
  • Page 11: Loading The Machine, Use Of The Lower Basket

    Loading your machine The two rear rows of prongs on the lower basket can be easily lowered to allow you to load pots, pans and Before placing dishes in the machine, remove any bowls. scraps of food from the plates (small bones, To lower the prongs: toothpicks, fish bones, scraps of meat and - slightly pull them upward and let them drop down...
  • Page 12: Use Of The Upper Basket, Adjusting The Height Of The Upper Basket

    Use of the upper basket Adjusting the height of the upper basket The upper basket is designed for plates (dessert If washing very large plates (over 27 cm and up to 31 plates, saucers, dinner plates up to 24 cm in cm in diameter) you can load them in the lower basket diameter), salad bowls, cups and glasses;...
  • Page 13: Helpful Hints

    HELPFUL HINTS For best washing results: Items not suitable for dishwashers Before loading, remove all scraps of food and soak The following should not be washed in the very heavily soiled pots and pans. dishwasher: Always arrange saucepans, cups and glasses etc. Cutlery or dishes with wooden or bone handles or upside down.
  • Page 14: Washing Programmes

    WASHING PROGRAMMES Recommended quantity of detergent Degree of soil and Required Cycle Programme in the on the type of load Pushbuttons Description dispenser lid dispenser Any. Partial load (to be 1 cold rinse (to avoid food PROGRAMMES completed later in the SELECT scraps from sticking to the RINSE AND HOLD...
  • Page 15: Operating Sequence

    Operating Sequence 7. Starting the wash programme Turn on the water tap. 1. Check that the filters are clean (see cleaning instructions) Close the dishwasher door. An audible signal lasting about 1 second informs you 2. Switch on at the main supply that the programme has started.
  • Page 16: Maintenance And Cleaning

    MAINTENANCE AND CLEANING Cleaning the central filter Internal and external cleaning (After each wash) You must ensure that the seals around the door, the Scraps of food can sometimes accumulate in the detergent and rinse aid dispensers are cleaned central filter (A) and should be periodically removed regularly with a damp cloth.
  • Page 17: Servicing

    SERVICING Certain problems are due to lack of simple For washing or drying problems, please carry out maintenance or oversights and can be solved easily the checks listed below: without having to call out an engineer. Therefore before calling for Service, consult the check list here The dishes are not clean (poor wash);...
  • Page 18: Protection Against Flooding

    If, after the above checks the fault persists, call your local Service Centre. Please make sure you give the model and serial number of the appliance. This information can be found on the rating plate located on the right-hand side of the dishwasher door (see picture).
  • Page 19: Building-In

    BUILDING-IN Building-in features Fitting the panel onto the door This dishwasher is designed to be fitted under a kitchen The door on this model is designed for the overlay of counter or sink. a panel having the following dimensions: In either case, it is essential that the recess dimensions Width: 596 mm indicated in the picture are followed.
  • Page 20: Adjusting The Door Balance

    Mount the decor panel by inserting the two pivots of Adjusting the door balance the cross-bar into the slotted holes of the door. The door of the dishwasher is balanced when it stands still in any position, if opened. Fitting the decor panel may sometimes affect this balance.
  • Page 21: Kitchen Plinth Adjustment

    Kitchen plinth adjustment To allow full opening of the door it may sometimes be necessary to make a cutout in the kitchen plinth (see fig.). II13 According to dimensions (a) and (b) taken as shown on the figure, you will find, on the following table, the height (X) of the cut-out to be made in the plinth.
  • Page 22: Warranty

    TRADE MARK REGD DISHWASHER WARRANTY This Westinghouse appliance is warranted by manufacturer, *(hereinafter called the Company), which undertakes by this warranty. For two years after installation the Company or its agent will pay the costs for repairing or replacing all parts the Company or its agent finds defective.
  • Page 23 WARRANTY FOR NEW ZEALAND ONLY This Westinghouse dishwasher is covered by a 24 month warranty from the date of purchase within the following terms. Any defect becoming apparent as a result of failure of material or workmanship will be rectified free of charge by Email Appliances (N.Z.) Limited or their agent.
  • Page 24 WESTINGHOUSE SERVICE What happens after the Warranty expires? We will continue to care for your appliance should it need service. Trained Westinghouse service technicians are available to service your appliance for its lifetime using genuine Westinghouse parts. Your appliance will get the same "under warranty" care, but you will pay the parts and labour costs.
  • Page 28 152988 56/0 0/1098...
