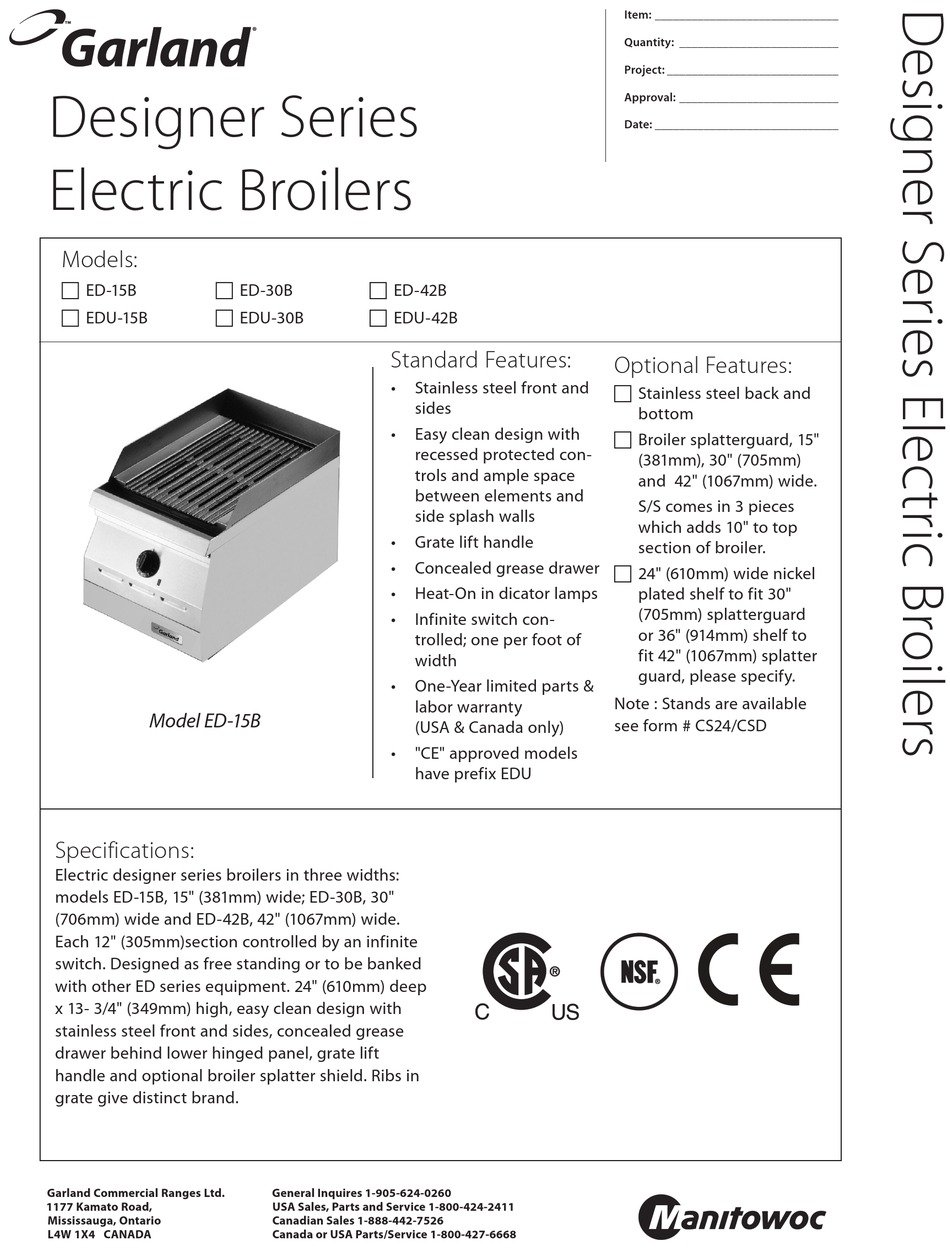

Garland ED-15B Information Sheet

Designer Series
Electric Broilers

Models:

 ED-15B  ED-30B
 EDU-15B  EDU-30B

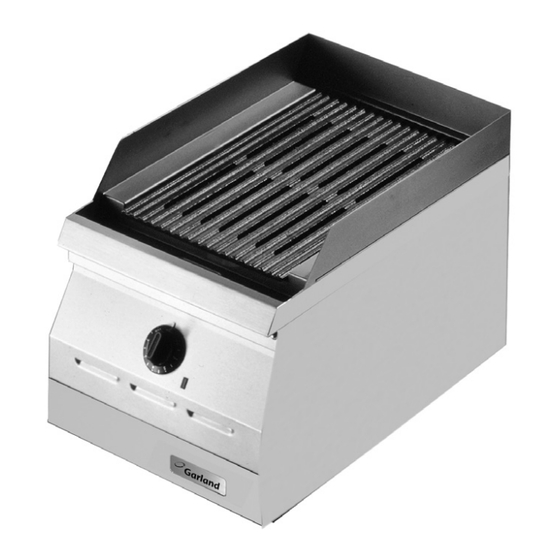

Model ED-15B

Specifications:

Electric designer series broilers in three widths:
models ED-15B, 15" (381mm) wide; ED-30B, 30"
(706mm) wide and ED-42B, 42" (1067mm) wide.
Each 12" (305mm)section controlled by an infinite
switch. Designed as free standing or to be banked
with other ED series equipment. 24" (610mm) deep
x 13- 3/4" (349mm) high, easy clean design with
stainless steel front and sides, concealed grease
drawer behind lower hinged panel, grate lift
handle and optional broiler splatter shield. Ribs in
grate give distinct brand.
Garland Commercial Ranges Ltd.
1177 Kamato Road,
Mississauga, Ontario
L4W 1X4 CANADA
 ED-42B
 EDU-42B

Standard Features:

• Stainless steel front and
sides
• Easy clean design with
recessed protected con-
trols and ample space
between elements and
side splash walls
• Grate lift handle
• Concealed grease drawer
• Heat-On in dicator lamps
• Infinite switch con-
trolled; one per foot of
width
• One-Year limited parts &
labor warranty
(USA & Canada only)
• "CE" approved models
have prefix EDU
General Inquires 1-905-624-0260
USA Sales, Parts and Service 1-800-424-2411
Canadian Sales 1-888-442-7526
Canada or USA Parts/Service 1-800-427-6668
Item: ______________________________
Quantity: __________________________
Project: ____________________________
Approval: __________________________
Date: ______________________________

Optional Features:

 Stainless steel back and
bottom
 Broiler splatterguard, 15"
(381mm), 30" (705mm)
and 42" (1067mm) wide.
S/S comes in 3 pieces
which adds 10" to top
section of broiler.
 24" (610mm) wide nickel
plated shelf to fit 30"
(705mm) splatterguard
or 36" (914mm) shelf to
fit 42" (1067mm) splatter
guard, please specify.
Note : Stands are available
see form # CS24/CSD
