INSTALLATION AND
OPERATION MANUAL
GARLAND G-BRL & GF-BRL
SERIES BROILERS
Only GF Series Broilers are CE Approved
FOR YOUR SAFETY:
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS OR
LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER
WARNING:
IMPROPER INSTALLATION, ADJUSTMENT,
ALTERATION, SERVICE OR MAINTENANCE
CAN CAUSE PROPERTY DAMAGE, INJURY,
OR DEATH. READ THE INSTALLATION,
OPERATING AND MAINTENANCE
INSTRUCTIONS THOROUGHLY
BEFORE INSTALLING OR
SERVICING THIS EQUIPMENT
Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent
using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been
improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation
instructions provided with the product, or any product that has its serial number defaced, obliterated or removed,
or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
For a list of authorized service agents, please refer to the Garland web site at http://www .garland-group .com .
The information contained herein, (including design and parts specifications), may be superseded and is subject
to change without notice .
GARLAND COMMERCIAL INDUSTRIES
185 East South Street
Freeland, Pennsylvania 18224
Phone: (570) 636-1000
Fax: (570) 636-3903
Part # 4525958 (10/28/08)
Part # 4525958 (10/28/08)
APPLIANCE
GARLAND COMMERCIAL RANGES, LTD .
1177 Kamato Road, Mississauga, Ontario L4W 1X4
CANADA
Phone: 905-624-0260
Fax: 905-624-5669

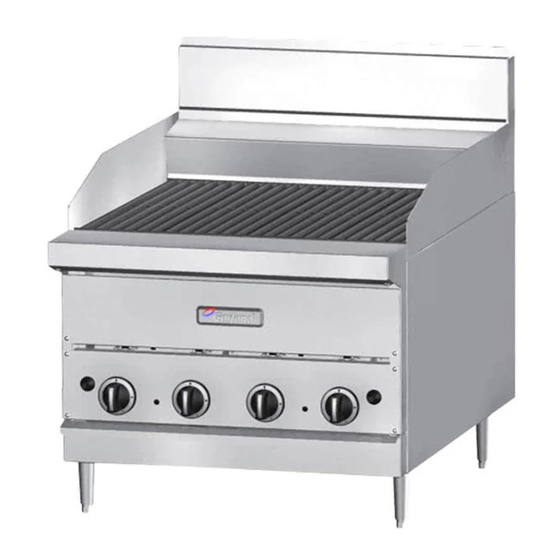

Includes Models: G18-BRL, G24-BRL, G30-BRL,
G36-BRL, G48-BRL, GF18-BRL,GF24-BRL,GF30-BRL
and GF36-BRL
PLEASE READ ALL SECTIONS OF THIS MANUAL
AND RETAIN FOR FUTURE REFERENCE .
THIS PRODUCT HAS BEEN CERTIFIED AS
COMMERCIAL COOKING EQUIPMENT AND
MUST BE INSTALLED BY PROFESSIONAL
PERSONNEL AS SPECIFIED .
IN THE COMMONWEALTH OF MASSACHUSETTS
THIS PRODUCT MUST BE INSTALLED BY A
LICENSED PLUMBER OR GAS FITTER .
For Your Safety:
Post in a prominent location, instructions to be
followed in the event the user smells gas . This
information shall be obtained by consulting
your local gas supplier .
Enodis UK LTD .
5E Langley Business Centre
Station Road, Langley SL3 8DS Great Britain
Phone: 01753 485900
Fax: 01753 4859011
© 2008 Garland Commercial Industries, Inc .
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Garland G18-BRL
Summary of Contents for Garland G18-BRL
- Page 1 Users are cautioned that maintenance and repairs must be performed by a Garland authorized service agent using genuine Garland replacement parts . Garland will have no obligation with respect to any product that has been improperly installed, adjusted, operated or not maintained in accordance with national and local codes or installation instructions provided with the product, or any product that has its serial number defaced, obliterated or removed, or which has been modified or repaired using unauthorized parts or by unauthorized service agents .
-
Page 2: Important Information
IMPORTANT INFORMATION WARNING: This product contains chemicals known to the state of california to cause cancer and/or birth defects or other reproductive harm. Installation and servicing of this product could expose you to airborne particles of glass wool/ceramic fibers. Inhalation of airborne particles of glass wool/ceramic fibers is known to the state of california to cause cancer. -
Page 3: Table Of Contents
TABLE OF CONTENTS IMPORTANT INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 DIMENSIONS AND SPECIFICATIONS –... -
Page 4: Dimensions And Specifications - Broilers
Total Input Ratings Height No of Model Width Depth W/O Legs Burners lbs/kg Cu Ft BTU/Hr kW/Hr G18-BRL 18" (457mm) 25-1/8" (636mm) 34-1/2" (876mm) 190/86 45,000 13 .2 G24-BRL 24" (610mm) 25-1/8” (636mm) 34-1/2" (876mm) 240/109 60,000 17 .6 G30-BRL 30"... -
Page 5: Gas Pressure
DIMENSIONS AND SPECIFICATIONS – BROILERS continued 7-7/8" REAR GAS [200mm] CONNECTION 2-3/8" 3/4-14 NPT [61mm] G-BRL Models 34-1/2" 24-1/4" [876mm] [617mm] 5" [127mm] 5-7/8" [149mm] WIDTH 2-1/8" [53mm] 25-1/8" [638mm] 14-3/4" 15-7/8" [375mm] [404mm] 5" [125mm] 4" 22-3/8" 3" 22-1/8" 3/16"... -
Page 6: Dimensions And Specifications - Stands
CASTER MIN ADJ LEG MIN CASTER G24-BRL-CAB • Many local codes exist, and it is the responsibility of the Owner and the Installer to comply with those codes. • Garland reserves the right to change or improve product specifications without notification. • Garland products are not approved or authorized for home or residential use, but are intended for commercial applica- tions only . Garland will not provide service, warranty, maintenance or support of any kind other than in commercial applications . Page 6 Part # 4525958 (10/28/08) -
Page 7: Pre Installation
Australia Specific Clause authorized for home or residential use, but are intended for commercial applications only . Garland / U .S . Range will not This appliance must be installed in accordance with the provide service, warranty, maintenance, or support of any manufacturer’s instructions, local gas fitting regulations and... -
Page 8: Gas Supply
INSTALLATION continued Gas Supply WARNING: Check gas connections for leaks . Use a soap solution or similar means . Do Not Use An Open Flame! A . The type of gas for which the unit is equipped is stamped Gas Connections: on the rating plate . -
Page 9: Leg Installation
INSTALLATION continued Optional Cross Members and Cross Member Mounting Brackets, Reqd . only when Units exceed a 4 ft . Dim . if Reqd . Secure Mounting Holes the pieces together with For Broiler 10 ea . 10-24 Machine Screws to Stand 10 ea . -
Page 10: Installation For Units Equipped With Casters
INSTALLATION continued Installation for Units Equipped with Casters Briquettes For best cooking results, it is recommended that the correct A . The installation shall be made with a connector that amount of briquettes are installed in the broiler . Refer to complies with the Standard for Connectors for Moveable the table and drawing below for the proper arrangement Gas Appliances, ANSI Z21 .69/CSA 6 .16, Addenda Z21 .69B-... -
Page 11: Operation
OPERATION Grid Rack Seasoning Instructions Models GF(18,24,30 .36)-BRL 1 . Push in the valve knob and turn counter-clockwise to the To insure long life and service, it is imperative that the ignition position . cooking surface be carefully broken in or seasoned in the following manner: 2 . -
Page 12: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning Care of the Grid Racks 7 . When the grill is running, never use objects such as sheet pans to cover the gill in order to hold in heat in an 1 . Grid racks should be wiped daily while still warm, using a attempt to burn off grease or other debris . - Page 13 Part # 4525958 (10/28/08) Page 13...
- Page 14 Page 14 Part # 4525958 (10/28/08)
- Page 15 Part # 4525958 (10/28/08) Page 15...
