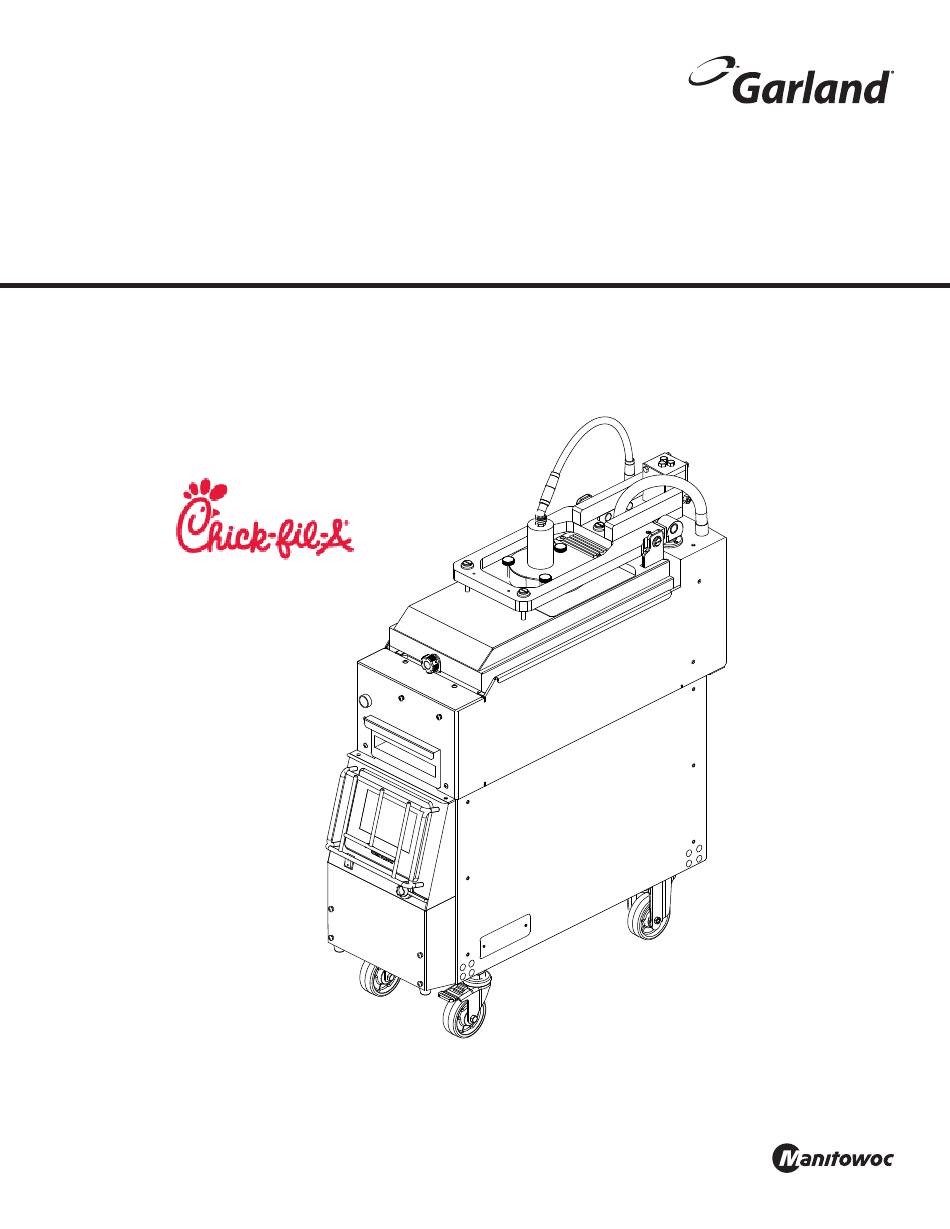

- Page 1 Electric Dual Side Clamshell Broiler Model: CXBE12 CFA - Noise Reduction Board Installation Instructions Document Number: GAR_IS_4601787 rev 0 (12/15)
- Page 2 Safcty Notiics Caution DANGER Do not sit or stand on the appliance under any KEEP APPLIANCE AREA FREE AND CLEAR OF circumstances. Serious injury and damage to the COMBUSTIBLES. appliance and/or property could result. Warning Notiic Do not store or use gasoline or other flammable vapors This appliance is intended for commercial use only or liquids in the vicinity of this or any other appliance.
-
Page 3: Table Of Contents
Table of Contents Safety Notices ........................2 Section 1 Kit Components Noise Reduction Board Installation Kit Components ............4 Section 2 Installation Procedures Noise Reduction Board (NRB) Installation Procedure ............. 5 Section 3 Diagrams Wiring Diagram ........................7 Noise Reduction Board Checklist Document Number: GAR_IS_4601787 rev 0 (12/15) -
Page 4: Kit Components
Section 1 Kit Components Noise Reduction Board Installation Kit Components Service Kit #: 4601786 - CFA Noise Reduction Board Installation Kit. PART# DESCRIPTION 4600681 Noise Reduction Board 4600683 Wire completed with terminal 4601745 Wire, TC Extension PCB Power F646 Extender Bolt (Standoff M/F #6-32 x 0.437”) F162 Screw, 6-32 x 1/4”... -
Page 5: Installation Procedures
Section 2 Installation Procedures Noise Reduction Board (NRB) Installation Procedure Warning 3. Starting from right to left, disconnect the first Always disconnect electrical power before removing panels. thermocouple plug from the SIB board, and connect Broiler temperature extremely high, be very careful. it to the noise reduction board (NRB). - Page 6 Installation Procedures Section 2 5. Insert the new extender bolt to the SIB board, on each side. Tighten bolt 7. Plug the red/black cable plug from the NRB to the SIB board male plug called CAN. 8. Installation completed. Test the unit and make sure everything is working well.
-
Page 7: Diagrams
Section 3 Diagrams Wiring Diagram Document Number: GAR_IS_4601787 rev 0 (12/15) - Page 8 THIS PAGE INTENTIONALLY LEFT BLANK...
-
Page 9: Noise Reduction Board Checklist
Noise Reduction Board Checklist CXBE12 - Chick-fil-A Electric Broiler Unit Serial #: City/State: CFA Store: Zip Code: Service Agency: Phone #: Day/Month/Year: Address: Fax to RISE call center (727-569-1247) or by email via: Rise.callcenter@mtwfs.com immediately upon completion. Any maintenance involving the disassembly of components must be performed by a factory authorized service technician, trained and... - Page 10 GARLAND 1177 KAMATO ROAD, MISSISSAUGA, ONTARIO, CANADA, L4W1X4 888-442-7526 WWW.GARLAND-GROUP.COM Every new piece of Manitowoc Foodservice equipment comes with KitchenCare™ and you choose the level of service that meets your operational needs from one restaurant to multiple locations. StarCare – Warranty & lifetime service, certified OEM parts, global parts inventory, performance audited ExtraCare —...
