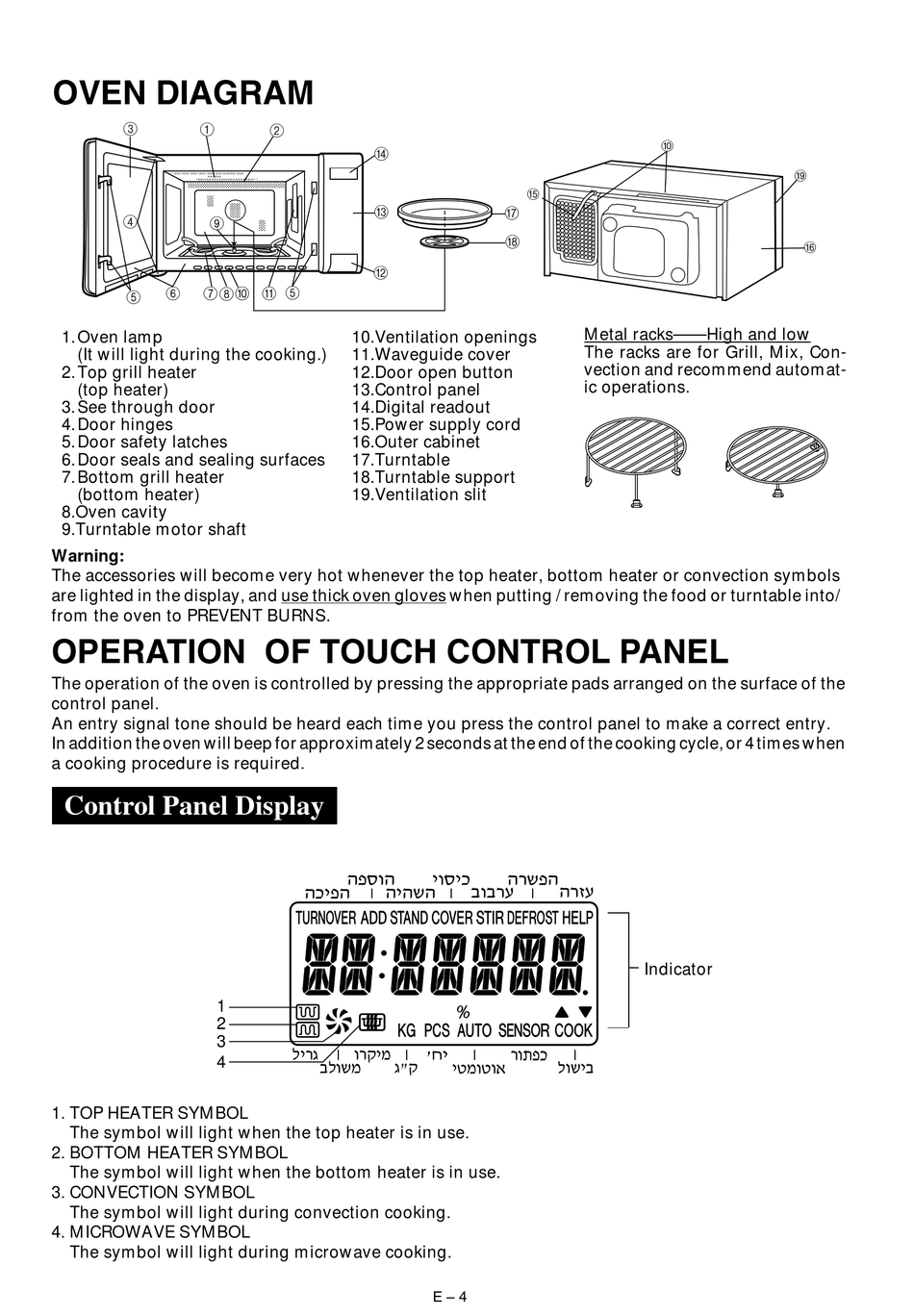

OVEN DIAGRAM

3 1
4
9
6 7 8 0 A
5
1. Oven lamp
(It will light during the cooking.)
2. Top grill heater
(top heater)
3. See through door
4. Door hinges
5. Door safety latches
6. Door seals and sealing surfaces
7. Bottom grill heater
(bottom heater)
8.Oven cavity
9.Turntable motor shaft
Warning:
The accessories will become very hot whenever the top heater, bottom heater or convection symbols
are lighted in the display, and use thick oven gloves when putting / removing the food or turntable into/
from the oven to PREVENT BURNS.

OPERATION OF TOUCH CONTROL PANEL

The operation of the oven is controlled by pressing the appropriate pads arranged on the surface of the
control panel.
An entry signal tone should be heard each time you press the control panel to make a correct entry.
In addition the oven will beep for approximately 2 seconds at the end of the cooking cycle, or 4 times when
a cooking procedure is required.

Control Panel Display

1
2
3
4
1. TOP HEATER SYMBOL
The symbol will light when the top heater is in use.
2. BOTTOM HEATER SYMBOL
The symbol will light when the bottom heater is in use.
3. CONVECTION SYMBOL
The symbol will light during convection cooking.
4. MICROWAVE SYMBOL
The symbol will light during microwave cooking.
2
D
C
B
5
10.Ventilation openings
11.Waveguide cover
12.Door open button
13.Control panel
14.Digital readout
15.Power supply cord
16.Outer cabinet
17.Turntable
18.Turntable support
19.Ventilation slit
E – 4
0
E
G
H
Metal racks——High and low
The racks are for Grill, Mix, Con-
vection and recommend automat-
ic operations.
Indicator
I
F
