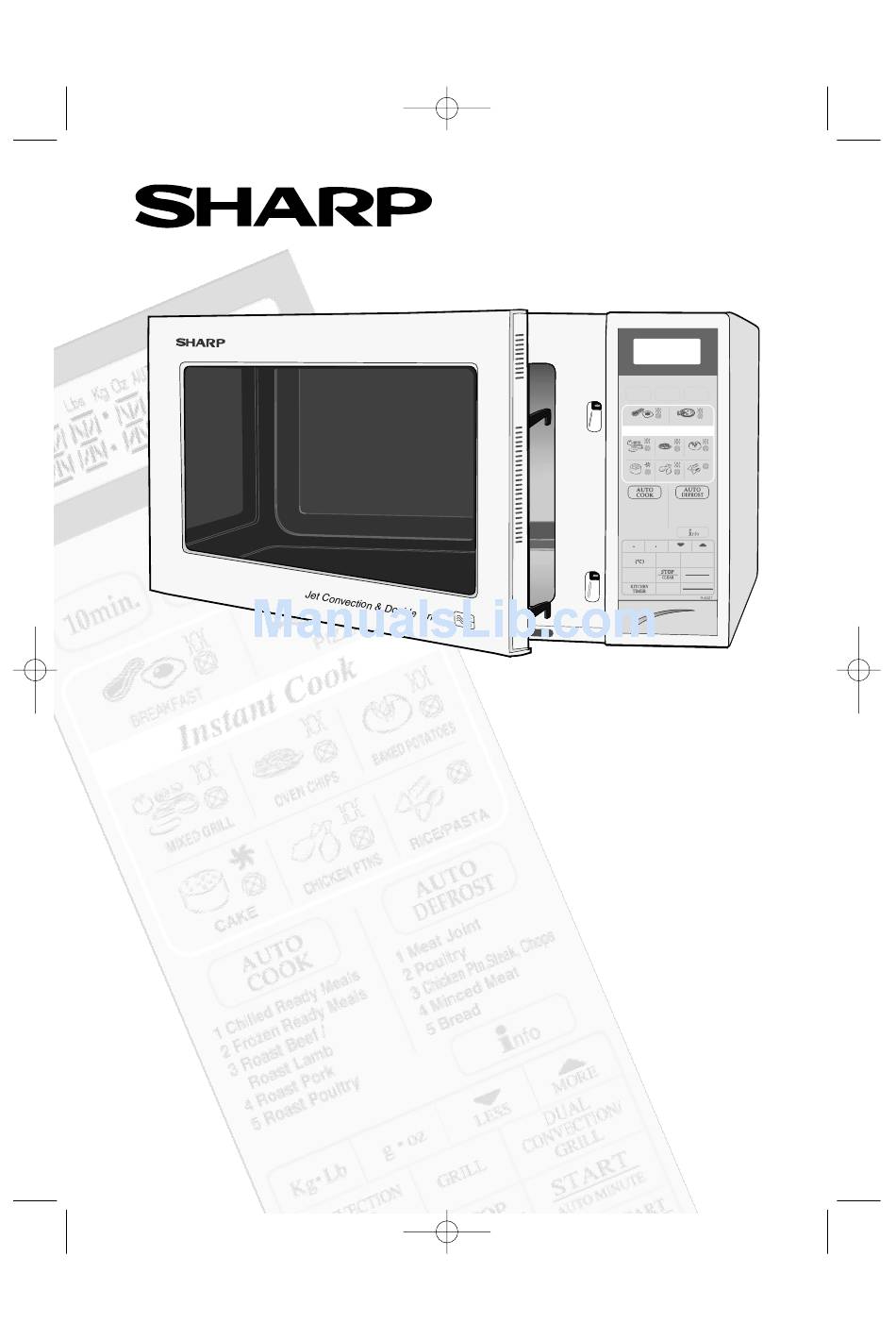

R- 83STM Op Man/Ck Bk 13/1/2000 12:28 Page A
& BOTTOM GRILLS AND CONVECTION
R-83STM
MICROWAVE OVEN WITH TOP
OPERATION MANUAL
WITH COOKERY BOOK
900W (IEC 60705)
10min.
1min.
10sec.
BREAKFAST
PIZZA
Instant Cook
MIXED GRILL
OVEN CHIPS
BAKED POTATOES
CAKE
CHICKEN PTNS
RICE/PASTA
1 Chilled Ready Meals
1 Meat Joint
2 Frozen Ready Meals
2 Poultry
3 Roast Beef /
3 Chicken Ptn,Steak, Chops
Roast Lamb
4 Minced Meat
4 Roast Pork
5 Bread
5 Roast Poultry
g oz
Kg Lb
LESS
MORE
DUAL
CONVECTION
GRILL
CONVECTION/
GRILL
START
MICROWAVE
POWER LEVEL
AUTO MINUTE
AUTO START
Kg/Lb
CLOCK
