Turn Signal Lamp And Fog Lamp; Rear Combination Lamp - SSANGYONG REXTON Owner's Manual

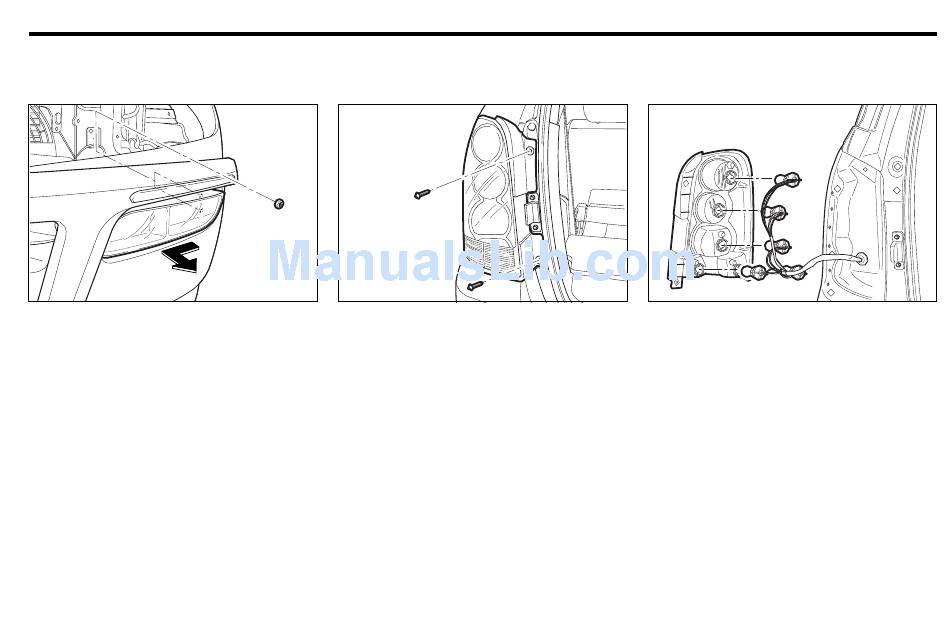

TURN SIGNAL LAMP AND FOG
LAMP
1. Disconnect the negative (-) battery
cable.
2. Puling down the bulb service cover of
the front wheel housing.
3. Remove the nut screw through the bulb
service cover area.
4. Remove the lamp.
5. Install new bulb with same rating.
6. Install in the reverse order of the
removal.

REAR COMBINATION LAMP

1. Disconnect the negative (-) battery
cable.
2. Unscrew two fixing screws from rear
combination lamp.
3. Disconnect the connector from rear com-
bination lamp.
4. Remove the rear combination lamp from
body.
SERVICE AND MAINTENANCE 8–45
5. Remove the bulb by turning it
counterclockwise.
6. Install new bulb with same rating.
7. Install in the reverse order of the
removal.
