NOTE
When using the boxed Intel
it will come with a fan for the processor heat sink. This fan cannot be used in a 1U server
chassis. If you are integrating a 2U chassis, proceed to the next step.
11. Following the instructions provided with the processor, install the fan on the processor
heat sink.
12. Connect the fan to (A) if it is on the primary processor or to (B) if it is on the secondary
processor.
MAXDATA PLATINUM Server Board User's Manual

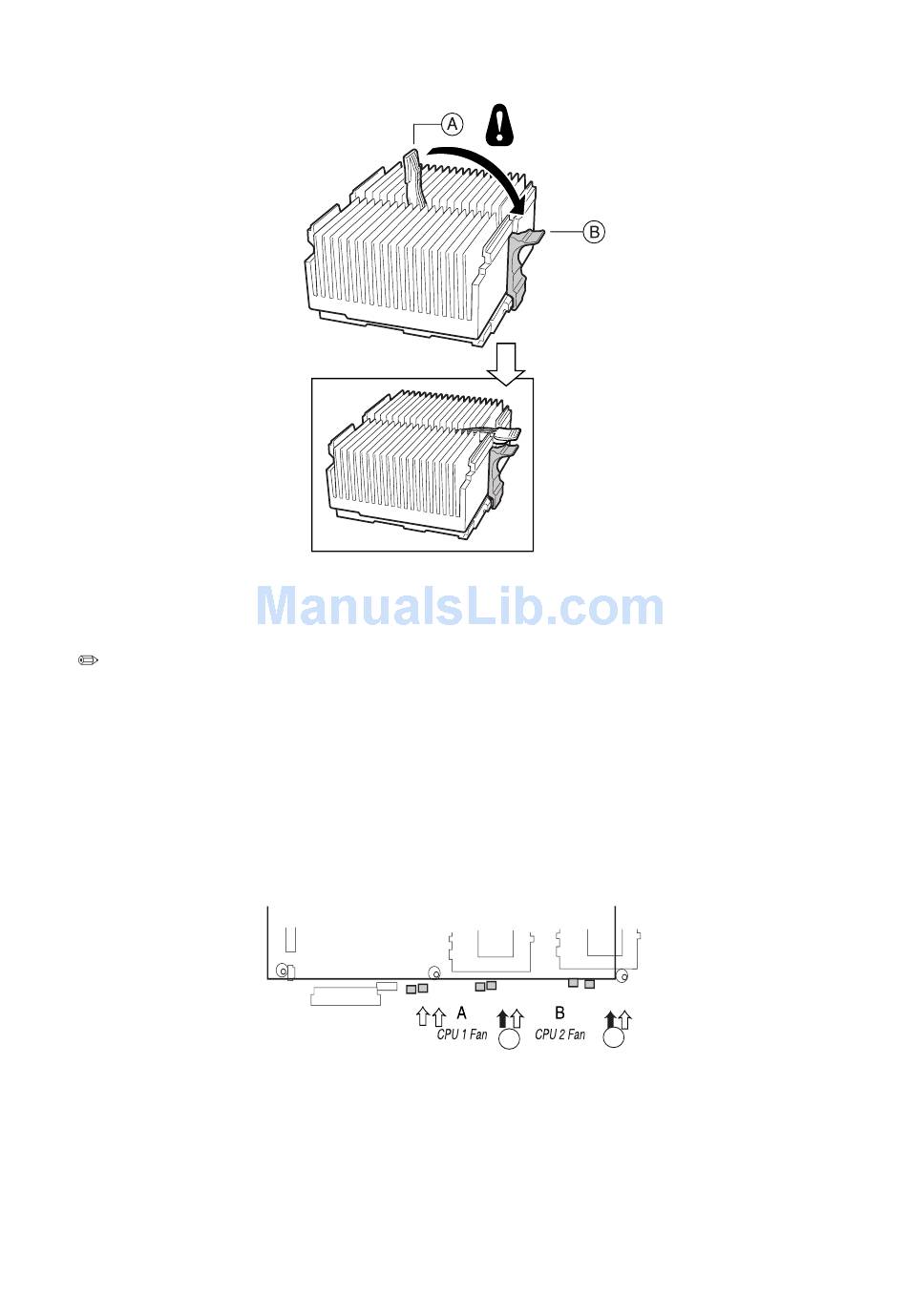

Figure 20. Attach the Heat Sink
® ®
Pentium III processor, compatible with the SCB2S server board,
Figure 21. Connect the Heat Sink Fan
35
