5. Following the instructions packaged with the applicator, apply thermal grease to the
processor.
6. Position the heat sink slot (2) above the socket/processor slot (3).
7 . Aligning the raised metal surfaces, place the heat sink on top of the processor.
8. Install the heat sink clip with pin (1) inserted into slot (2).
CAUTION
Use care when closing the locking lever – do it slowly.
9. Slowly close the locking lever (A) until it contacts tab (B).
NOTE
When using the boxed Intel
it will come with a fan for the processor heat sink. This fan cannot be used in a 1U server
chassis. If you are integrating a 2U chassis, proceed to the next step.
1. Following the instructions provided with the processor, install the fan on the processor
heat sink.
2. Connect the fan to (A) if it is on the primary processor or to (B) if it is on the secondary
processor.
26

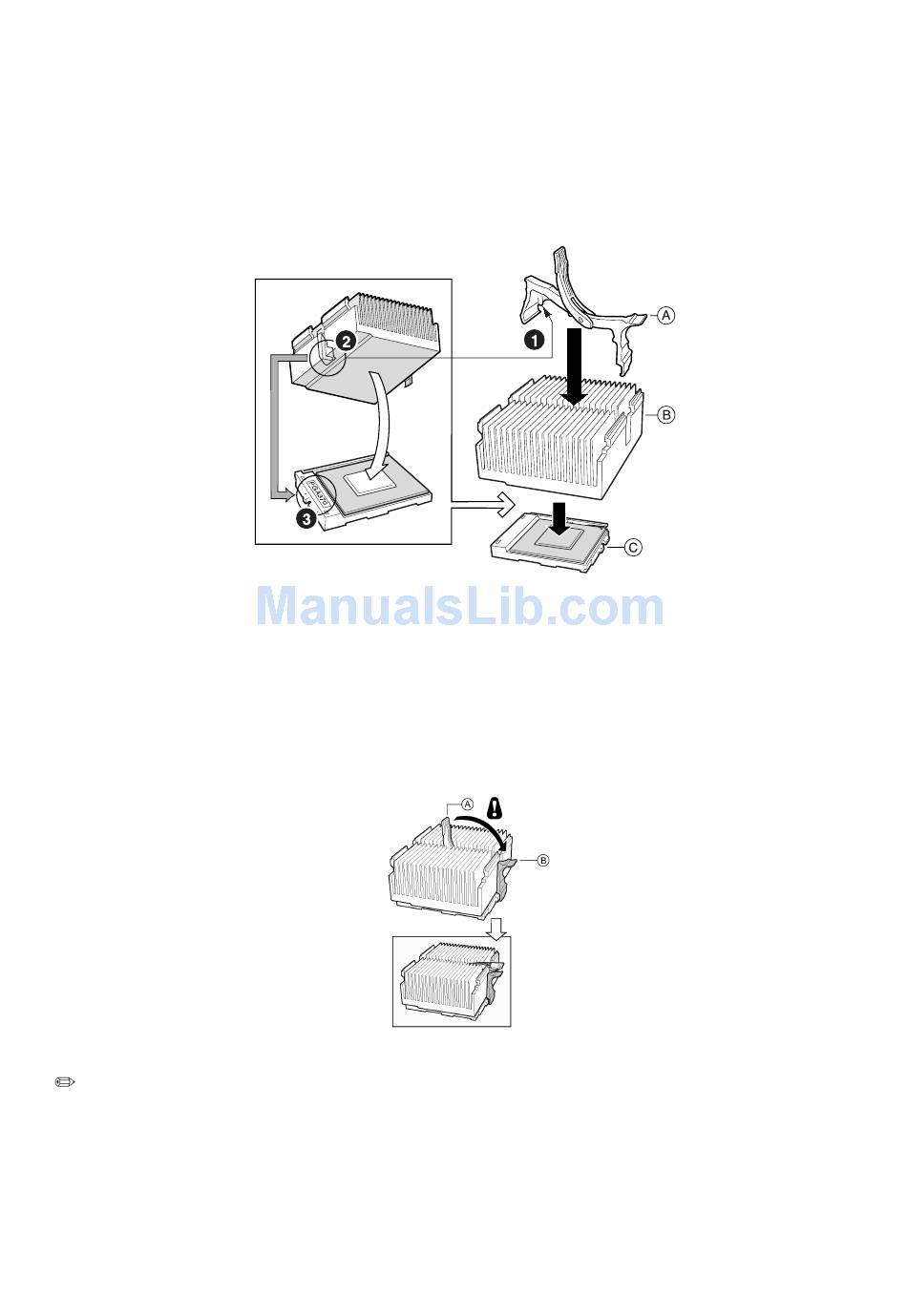

Figure 11. Installing the Heat Sink
A. Heat sink retention clip
B. Heat sink
C. Socket and processor
Figure 12. Closing the Locking Lever
® ®
Pentium III processor, compatible with the SCB2 server board,
