Installing Processors

1. Observe the safety and ESD precautions at the beginning of this document.
2. Raise the locking bar on the socket.
3. Aligning the pins of the processor with the socket, insert the processor into the socket.
4. Lower the locking bar completely.
MAXDATA PLATINUM Server Board User's Manual

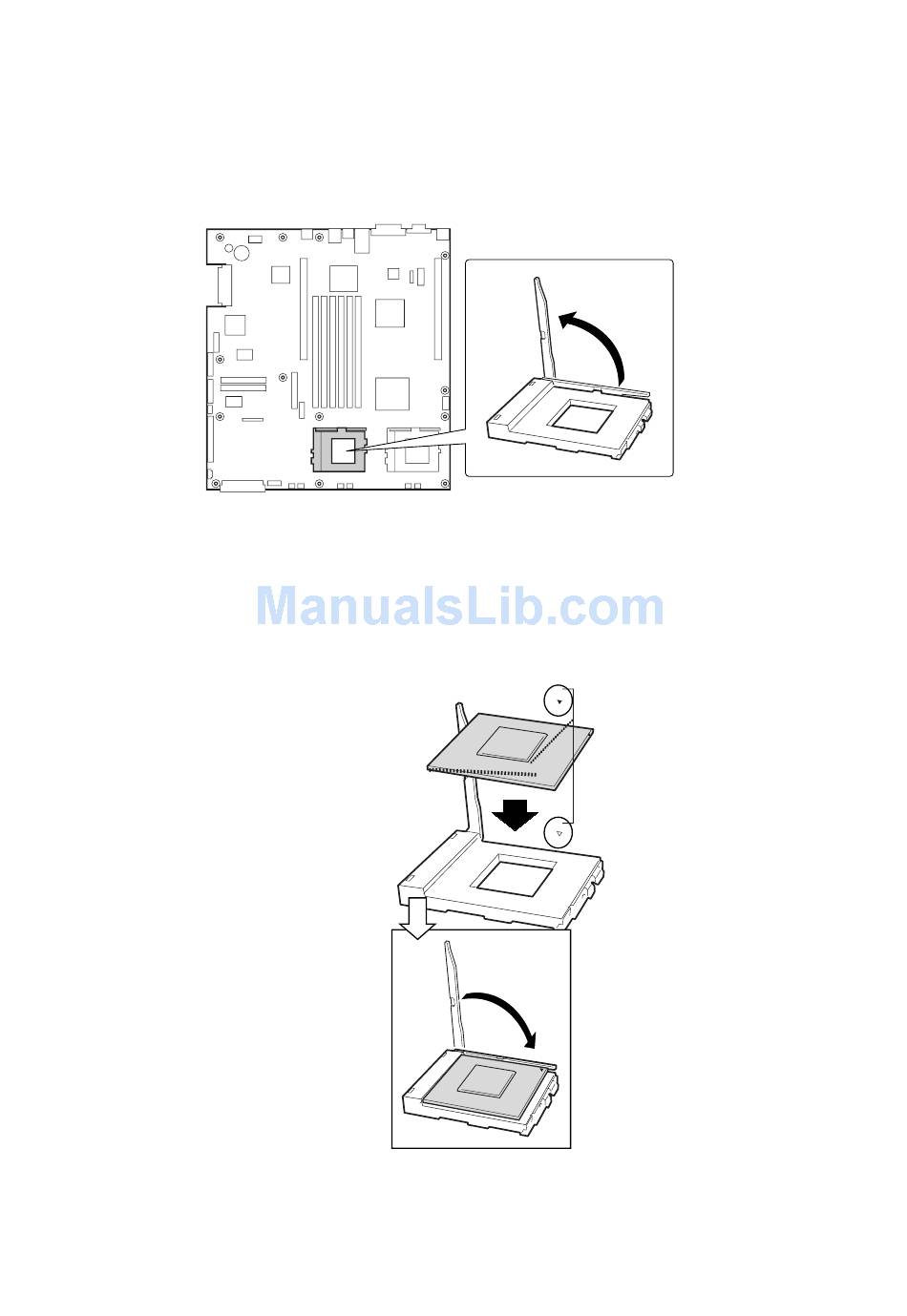

Figure 9. Raising the Locking Bar
Figure 10. Installing Processors
