NOTE
By default, as configured in the factory, the SCB2 baseboard will have the rear RJ45 serial
port configured to support a DSR signal.
For serial concentrators that require a DCD signal, the J6A2 jumper block must be config-
ured as follows: The DCD jumper in position 2 and 3 and the DSR jumper in position 2 and 3.
Pin 1 on the jumper is denoted by an arrow directly next to the jumper block. See Figure 3 on
page 15 for the jumper block pin-out of this configuration.
For serial concentrators that require a DSR signal, the J6A2 jumper block must be config-
ured as follows: The DSR jumper in position 1 and 2 and the DCD jumper in position 1 and 2.
Pin 1 on the jumper is denoted by an arrow directly next to the jumper block. See Figure 4.
For those server applications that require a DB9 type of serial connector, an 8-pin RJ45-to-
DB9 adapter must be used. The following table defines the pin-out required for the adapter
to provide RS232 support.
Table 3.

Rear COM2 Port Adapter Pin-out

RJ45 Signal
1 Request to Send
2 Data Terminal Ready
3 Transmitted Data
4 Signal Ground
5 Ring Indicator
6 Received Data
7 DCD or DSR
8 Clear To Send
MAXDATA PLATINUM Server Board User's Manual

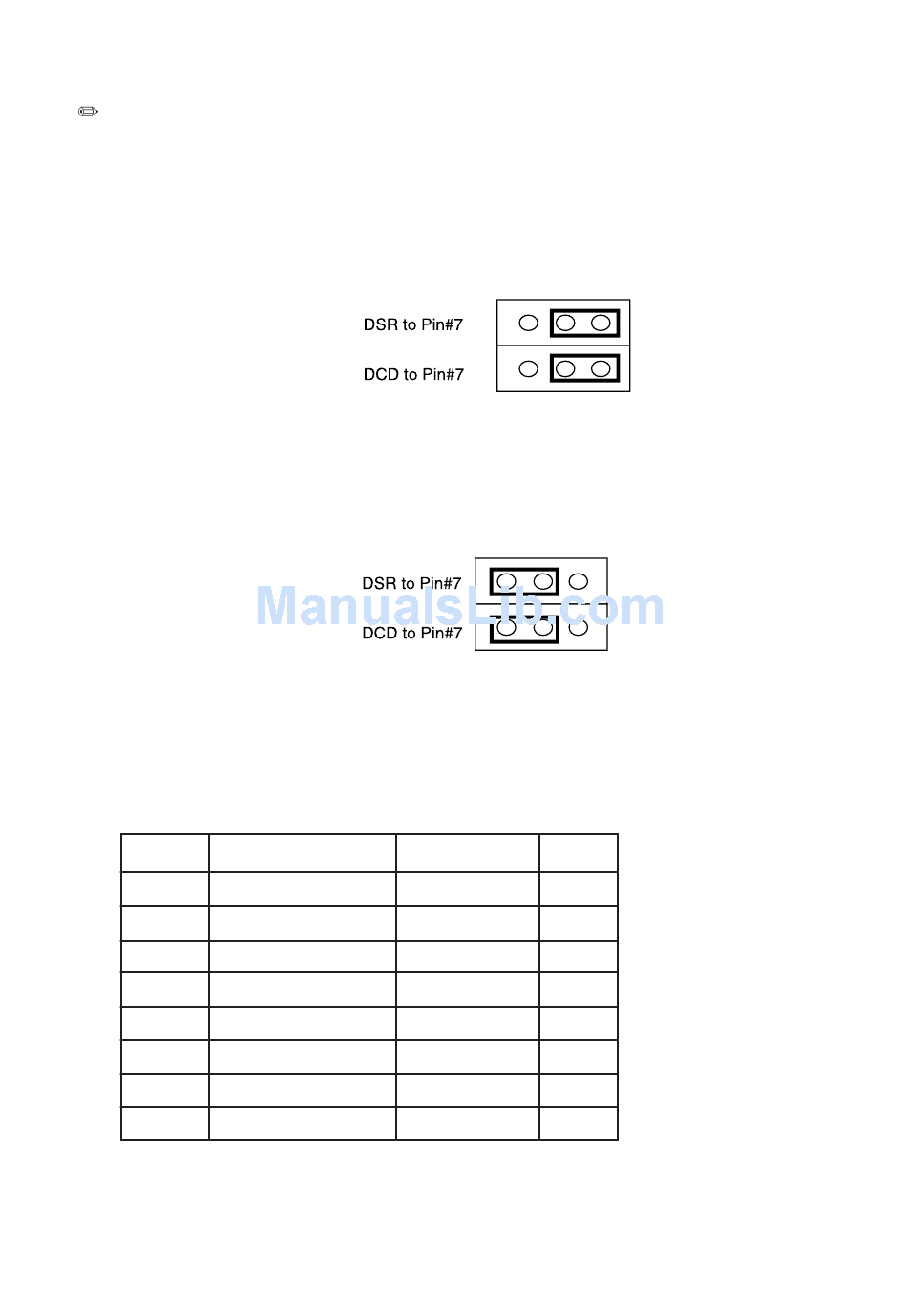

Figure 3. J6A2 Jumper Block for DCD Signal
Figure 4. J6A2 Jumper Block for DSR Signal
Abbreviation
RTS
DTR
TD
SGND
RI
RD
DCD/DSR
CTS
DB9
7
4
3
5
9
2
1 or 6
8
15
