Summary of Contents for Maktec MT810

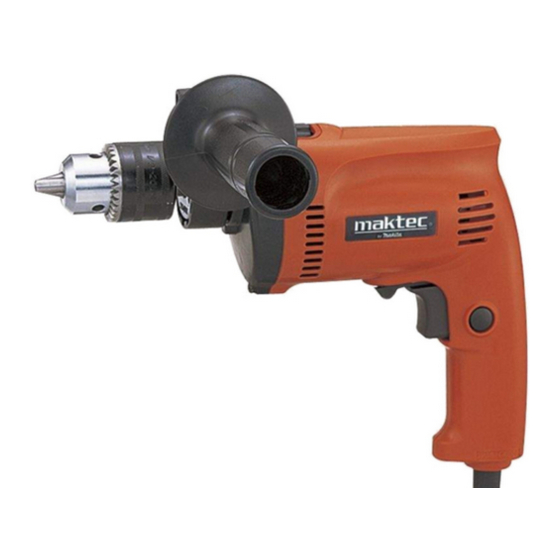

- Page 1 Hammer Drill MODEL MT810 MODEL MT811 MODEL MT812 MODEL MT813 001690 DOUBLE INSULATION I N S T R U C T I O N M A N U A L WARNING: For your personal safety, READ and UNDERSTAND before using.
-
Page 2: Specifications
Do not dispose of electric European Standard and can, therefore, also equipment together with be used from sockets without earth wire. household waste material! For Model MT810/MT811/MT812 In observance of European For European countries only Directive 2002/96/EC on Noise and Vibration... -
Page 3: General Safety Rules
For Model MT813 EC-DECLARATION OF CONFORMITY For European countries only We declare under our sole responsibility that this product is in compliance with the Noise and Vibration following standards of standardized docu- The typical A-weighted noise levels are ments, EN60745, EN55014, EN61000 in sound pressure level: 98 dB (A) accordance with Council Directives, 89/336/ sound power level: 109 dB (A) - Page 4 12. Remove any adjusting key or wrench Electrical safety before turning the power tool on. A wrench 4. Power tool plugs must match the outlet. or a key left attached to a rotating part of the Never modify the plug in any way. Do not power tool may result in personal injury.
-
Page 5: Specific Safety Rules
damaged, have the power tool repaired for operations different from those intended before use. Many accidents are caused by could result in a hazardous situation. poorly maintained power tools. Service 21. Keep cutting tools sharp and clean. Prop- 23. Have your power tool serviced by a quali- erly maintained cutting tools with sharp cut- fied repair person using only identical ting edges are less likely to bind and are... - Page 6 SAVE THESE INSTRUCTIONS WARNING: MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury.
- Page 7 • Always be sure that the tool is switched off and unplugged before installing or removing the bit. For Model MT810/MT811/MT813 To install the bit, place it in the chuck as far as it will go. 1. Drill chuck Tighten the chuck by hand. Place the chuck key in each of 2.
-
Page 8: Functional Description
Depth gauge (optional accessory) 001693 The depth gauge is convenient for drilling holes of uniform depth. Loosen the side grip and insert the depth gauge into the hole in the grip base. Adjust the depth gauge to the desired depth and tighten the side grip. NOTE: The depth gauge cannot be used at the position where the 1. -
Page 9: Operation
Selecting the action mode 001696 This tool has an action mode change lever. For rotation with hammering, slide the action mode change lever to the right symbol). For rotation only, slide the action mode change lever to the left ( symbol). -
Page 10: Maintenance
Drilling in metal To prevent the bit from slipping when starting a hole, make an indentation with a center-punch and hammer at the point to be drilled. Place the point of the bit in the indentation and start drilling. Use a cutting lubricant when drilling metals. The exceptions are iron and brass which should be drilled dry. - Page 11 Memo...
- Page 12 Makita Corporation Anjo, Aichi, Japan 884431C225...
