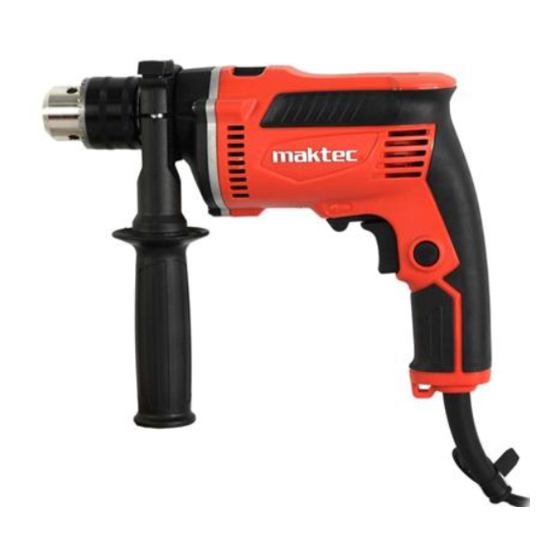

- Page 1 INSTRUCTION MANUAL Hammer Drill MT816 MT817 MT818 013413 DOUBLE INSULATION IMPORTANT: Read Before Using.
-
Page 2: Specifications
ENGLISH (Original instructions) SPECIFICATIONS Model MT816 MT817/MT818 Concrete 10 mm 13 mm Capacities Wood 18 mm 18 mm Steel 10 mm 13 mm No load speed (min 0 - 2,800 0 - 2,800 Blows per minute 0 - 30,800 0 - 30,800... - Page 3 Designation of Machine: reduce risk of electric shock. Hammer Drill Avoid body contact with earthed or grounded Model No./ Type: MT816,MT817,MT818 surfaces such as pipes, radiators, ranges and are of series production and refrigerators. There is an increased risk of Conforms to the following European Directives: electric shock if your body is earthed or grounded.
-
Page 4: Hammer Drill Safety Warnings
left attached to a rotating part of the power tool Service may result in personal injury. 25. Have your power tool serviced by a qualified 15. Do not overreach. Keep proper footing and repair person using only identical balance at all times. This enables better control replacement parts. -
Page 5: Functional Description
This tool has a reversing switch to change the direction FUNCTIONAL DESCRIPTION of rotation. Move the reversing switch lever to the position (A side) for clockwise rotation or to the position (B side) for counterclockwise rotation. CAUTION: Always be sure that the tool is switched off and •... -
Page 6: Operation
Turn the side grip clockwise so that the depth For Model MT816/MT817 gauge and the grip base are fixed on the tool completely. 1. Drill chuck 2. Chuck key NOTE: The depth gauge cannot be used at the position where the depth gauge strikes against the tool body. -
Page 7: Maintenance
There is a tremendous force exerted on the tool/bit • at the time of hole break through. Hold the tool firmly and exert care when the bit begins to break through the workpiece. A stuck bit can be removed simply by setting the •... - Page 8 Makita Corporation Anjo, Aichi, Japan www.makita.com 885181A225...
